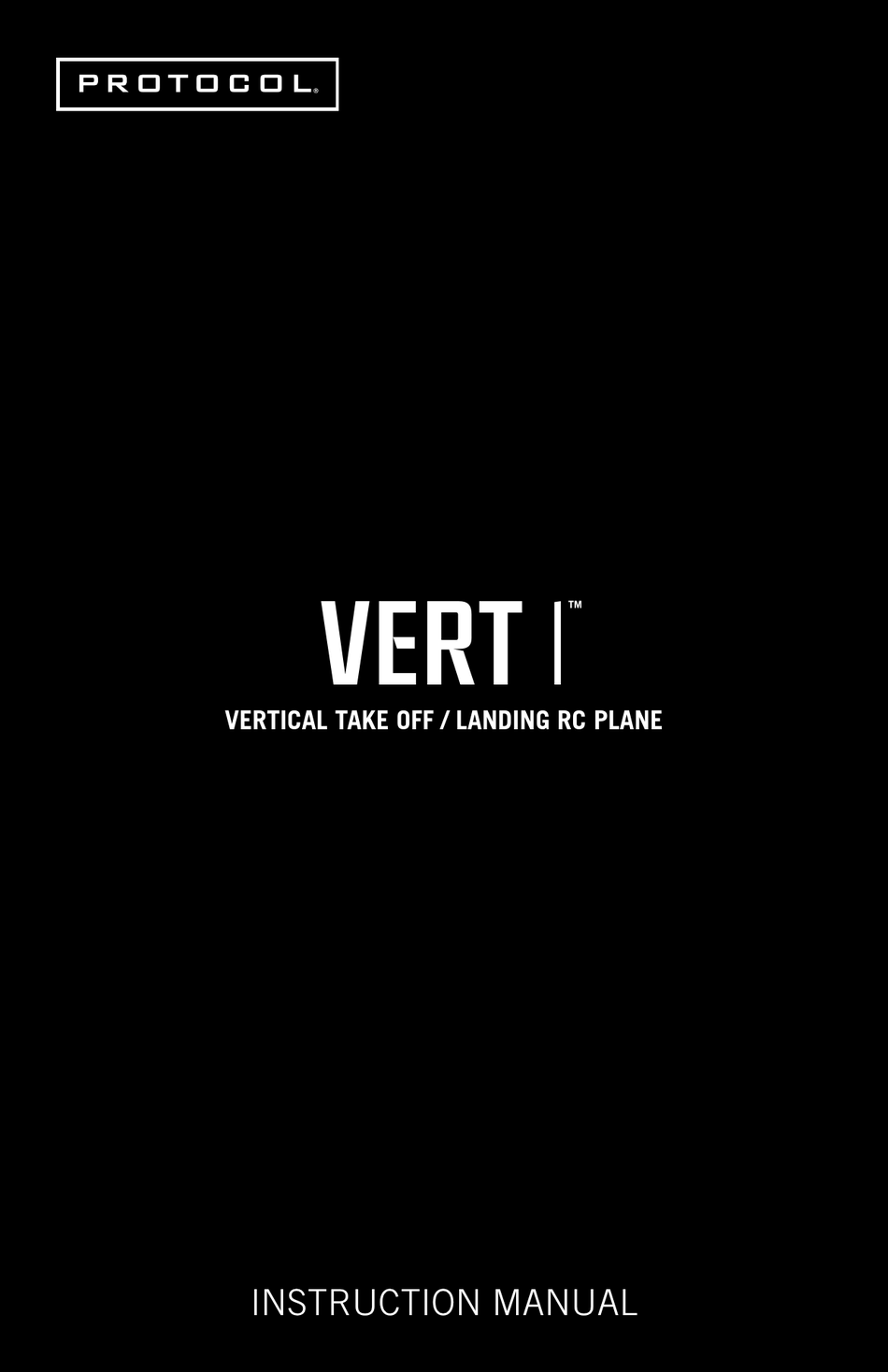

  • Page 1 VERT 1 VERTICAL TAKE OFF / LANDING RC PLANE...
  • Page 3 THANK YOU. Thank you for your purchase of Protocol’s Vert I Vertical Take Off / Landing RC Plane. You are about to experience the best of what remote control flight has to offer. We strongly recommend that you take the time to read this manual thoroughly.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Safety & Precautions Parts Remote Battery Installation Plane Set Up Charging the Plane Start-Up Procedure Flying the Plane 3D Stunt Mode Trim Adjustment Troubleshooting Flying Outdoors Replacement Parts & Limited Warranty...
  • Page 5 • Never attempte to modify function of vehicle or controller or attempt • repairs using parts other then those supplied by Protocol. Spare parts are available at www.ProtocolNY.com THIS DEVICE USES COMPONETS THAT OPERATE AT HIGH SPEEDS. AS WITH ANY SUCH DEVICE, USE CAUTION TO OPERATE SAFELY.
  • Page 6 PARTS PLANE 1. Propeller 2. Vertical Wing 3. Vertical Tail 4. Body Not pictured - Landing Gear - Battery Compartment...
  • Page 7 PARTS REMOTE LCD SCREEN 1. Remote Battery Level 1. Power On/Off 2. Mode Indicator 2. Throttle (Mode 2); 3. Throttle Trim Direction Stick (Mode 1) 4. Forward/Backward Trim 3. Direction Stick (Mode 2); 5. Bank Left/Right Trim Throttle (Mode 1) 6.

  • Page 8: Remote Battery Installation

    REMOTE BATTERY INSTALLATION Remove battery cover from controller. Insert 6 x ‘AA’ batteries according to indicated polarities. Replace and screw back in battery cover. 1. Install batteries carefully. 2. Do not mix old and new batteries. 3. Do not mix different types of batteries. MODE 1 &...

  • Page 9: Plane Set Up

    PLANE SET UP FIG. 1 FIG. 2 Installing Wingtips 1. Slide each wingtip onto the wing of the plane (Fig.1). 2. Loosen the screws and flip the locks (Fig. 2). 3. Re-tighten the screws. Installing Vertical Tail Place the vertical tail into the slots on the plane and slide forward until it locks into place.

  • Page 10: Charging The Plane

    CHARGING THE PLANE BATTERY 1. Plug the battery into the power pack and connect the power pack to the charging cord. 2. Plug the cord into an outlet. The red light on the pack will turn on while charging and turn off once charged. 3.

  • Page 11: Start-Up Procedure

    START-UP PROCEDURE Before flying, the plane and transmitter must be turned on in sequence and synchronized. 1. Plug the battery into the plane to turn it on and place it on flat ground in front of you. 2. Turn on the remote control. 3.
  • Page 12 OPERATION: FLYING THE PLANE TAKE–OFF: 1. Make sure the throttle is in the center position. Press and hold the take off button. The plane will hover a few feet off the ground. Then gently advance the throttle to a desired height and release. The plane will hover at that height.* 2.
  • Page 13 OPERATION: FLYING THE PLANE Note: You can switch between V, 6G, and 3D mode during flight. FIRST TIME FLYERS!!! TAKE YOUR TIME! GO SLOW! Practice hovering until you are comfortable with flight before attempting any other maneuvers. Make small movements letting the stick return to the center. If you start to lose control, don’t panic.

  • Page 14: 3D Stunt Mode

    3D STUNT MODE 3D Mode will remove the auto-stabilizers and allow the plane to perform stunts. This is best for advanced users as it is more difficult to control the plane in this mode. Make sure you have plenty of space to perform the stunts and the area is clear of people and obstacles.

  • Page 15: Trim Adjustment

    TRIM ADJUSTMENT LEFT MOVEMENT RIGHT MOVEMENT SIDEWAYS TRIM When the plane drifts to the left or right side unintentionally, you can correct it by pressing the trim button in the opposite direction until it evens out. FORWARD BACKWARD FORWARD/BACKWARD TRIM When the plane drifts forward/backward unintentionally, you can correct it by pressing the trim button in the opposite direction until it evens out.

  • Page 16: Troubleshooting

    Response to 1. Controller battery power 1. Replace batteries in controller. control inputs nearly depleted. intermittent or erratic Vert I will 1. The aircraft was not 1. Re-synchronize aircraft and not hover on level ground during controller. or strafe synchronization.

  • Page 17: Flying Outdoors

    FLYING OUTDOORS HOW TO PREVENT FLY AWAYS To prevent “fly-away” situations (where planes seem to fly away out of control) it is important to first test and practice within close range before letting the plane fly too far away. Each plane is designed to land if the radio signal is lost. (But, this should not be considered a landing procedure or normal flight practice.) It is important to know and test the range of your plane before flying.
  • Page 18 REPLACEMENT PARTS Thank you for your purchase of Protocol’s Vert 1 Vertical Take Off/Landing RC Drone. We know that accidents can sometimes happen and that is why we offer spare parts kits on our website: ProtocolNY.com. LIMITED WARRANTY At Protocol, we’re dedicated to bringing you innovative and well-designed products that make living fun and easy.
