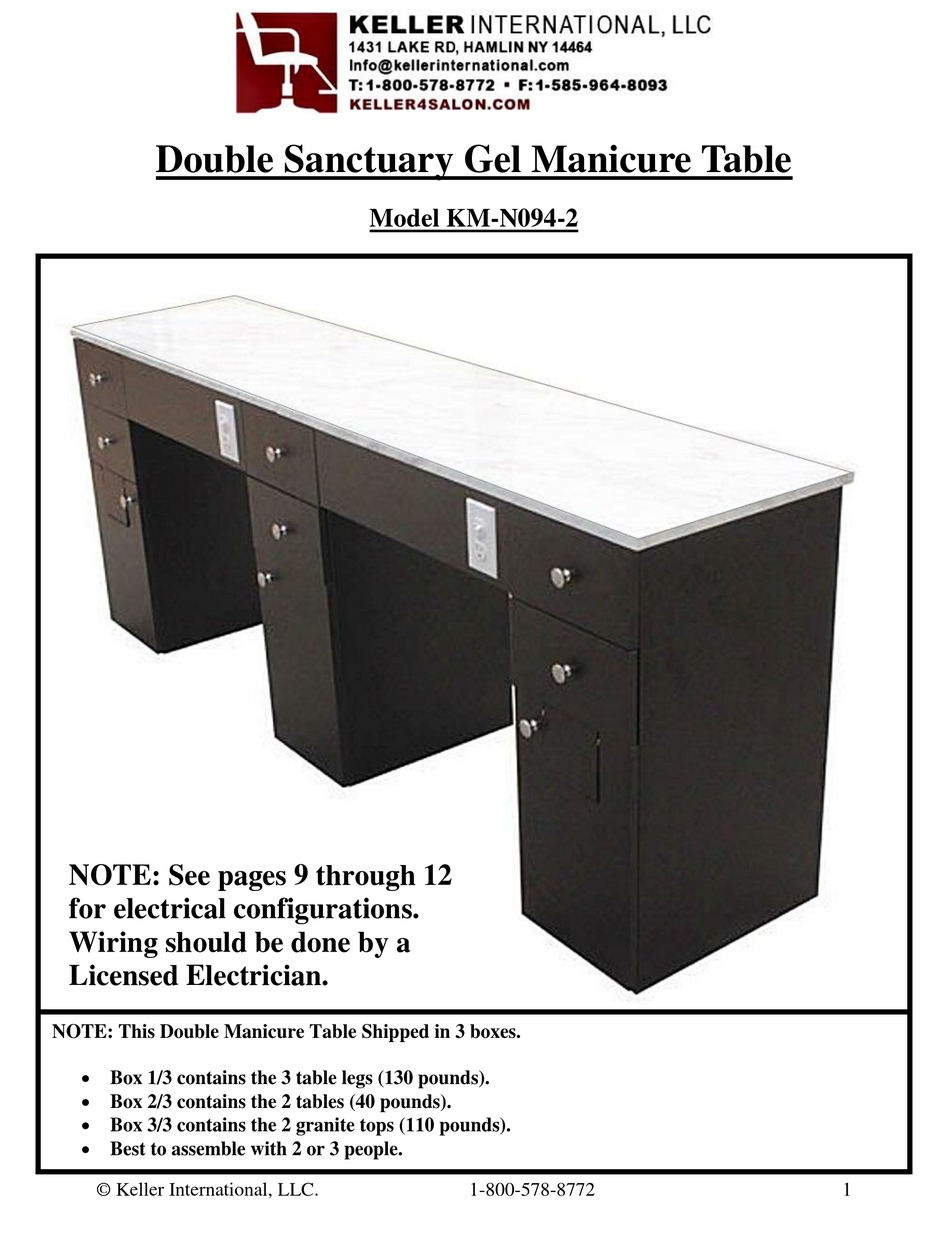

Double Sanctuary Gel Manicure Table
NOTE: See pages 9 through 12
for electrical configurations.
Wiring should be done by a
Licensed Electrician.
NOTE: This Double Manicure Table Shipped in 3 boxes.
 Box 1/3 contains the 3 table legs (130 pounds).
 Box 2/3 contains the 2 tables (40 pounds).
 Box 3/3 contains the 2 granite tops (110 pounds).
 Best to assemble with 2 or 3 people.
