Summary of Contents for Fender HAMMERTONE FUZZ
- Page 2 DC POWER CONNECTOR OUTPUT JACK INPUT JACK FOOTSWITCH 9V BATTERY SCREW ACCESS ON REAR...

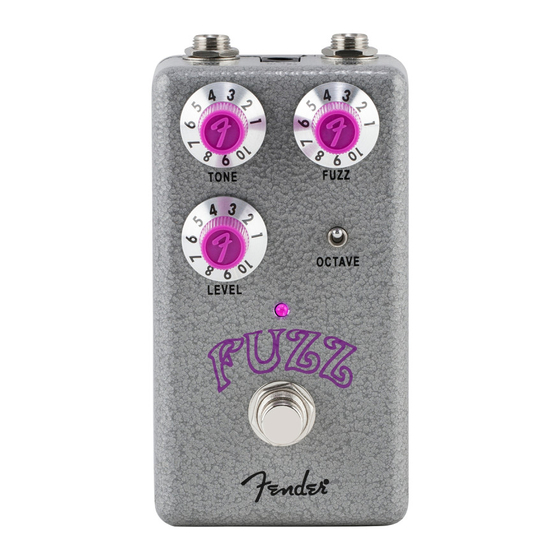

- Page 3 Fuzz is an perennially cool effect in the arsenal of any guitarist and bassist, and the Hammertone Fuzz puts the buzz at your feet in every shade from slight to super.
- Page 4 OUTPUT JACK Low-impedance output connects to amp or next pedal in signal chain. INPUT JACK High-impedance input for electric guitar, bass, acoustic guitars with pickup systems, keyboards and other instruments. DC POWER CONNECTOR Connect DC adapter here. Standard center-negative 9VDC jack for use with appropriate power supplies.
- Page 5 INTERNAL TRIM POTENTIOMETER (ACCESSIBLE BY REMOVING COVER) TONE 2 trim pot adjusts high-frequency character. Remove cover using a flat-head screwdriver. Adjust trim pot using a Phillips-head screwdriver. TONE 2 TRIM POT 9V BATTERY (NOT INCLUDED)
- Page 7 A PRODUCT OF FENDER MUSICAL INSTRUMENTS CORPORATION CORONA, CALIFORNIA, U.S.A. Fender ® is a registered trademark of FMIC. Copyright © 2021 FMIC. All rights reserved. PN 7724432000 REV A IMPORTANT SAFETY INSTRUCTIONS •WARNING: To prevent damage, fire or shock hazard, do not expose the unit or its AC power to rain or moisture.
- Page 8 © FENDER MUSICAL INSTRUMENTS 2021...
