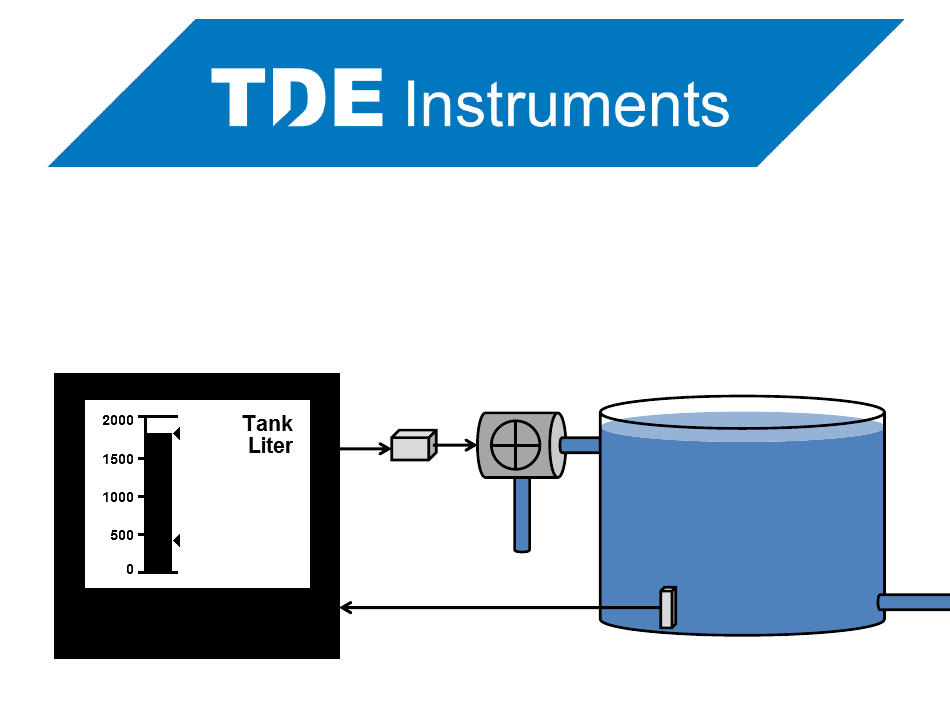

Digalox
DPM72 AVP / PP
Application example
Pump control
Pump
Relais
1800
4-20mA / 0-10V
Digalox
Sensor
TDE Instruments GmbH

Advertisement

loading
Need help?

Need help?

Do you have a question about the Digalox DPM72 AVP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TDE Instruments Digalox DPM72 AVP

Summary of Contents for TDE Instruments Digalox DPM72 AVP

  • Page 1 ® Digalox DPM72 AVP / PP Application example Pump control Pump Relais 1800 4-20mA / 0-10V Digalox Sensor TDE Instruments GmbH...
  • Page 2 Application example pump control  Display of a liquid tank‘s level  Activation of a pump when going beneath a certain level  Deactivation of the pump when going above a certain level TDE Instruments GmbH...
  • Page 3 Application example pump control Pump Relais 1800 4-20mA / 0-10V Digalox Sensor  Measurement of the level via an analog sensor  Display as bargraph TDE Instruments GmbH...
  • Page 4 Application example pump control Pump Relais 1200 1600 1800 4-20mA / 0-10V Digalox Sensor  Measurement of the level via an analog sensor TDE Instruments GmbH...
  • Page 5 Application example pump control Pump Relais Pumpe an 4-20mA / 0-10V Digalox Sensor  When reaching a minimum level, output is activated  Relais starts the pump TDE Instruments GmbH...
  • Page 6 Application example pump control Pump Relais Pumpe an 1800 1600 1200 4-20mA / 0-10V Digalox Sensor  Pump fills the tank  Measurement of the level via an analog sensor TDE Instruments GmbH...
  • Page 7 Application example pump control Pump Relais 1800 4-20mA / 0-10V Digalox Sensor  When reaching a certain level, output is deactivated  Relais stops the pump TDE Instruments GmbH...

  • Page 8: Connection Of The Unit

    Connection of the unit TDE Instruments GmbH...
  • Page 9 Configuration of the unit using Digalox-Manager TDE Instruments GmbH...
  • Page 10  Start Digalox Manager  Connect TDE Instruments GmbH...
  • Page 11  Choose measurement mode 0-10V normed TDE Instruments GmbH...
  • Page 12  Choose display style „Vertical bar“  Save display style TDE Instruments GmbH...
  • Page 13  Change to tab „Settings“  Type first caption „Tank“ TDE Instruments GmbH...
  • Page 14  Type second caption „Liters“ TDE Instruments GmbH...
  • Page 15  Enter upper display caption 2000 TDE Instruments GmbH...
  • Page 16  Enter upper display value 2000 (equivalent to 10V)  Save to view display preview TDE Instruments GmbH...
  • Page 17  Activate thresholds TDE Instruments GmbH...
  • Page 18  Enter threshold value 1100  This is the center of the filling range TDE Instruments GmbH...
  • Page 19  Select threshold „Lower“ TDE Instruments GmbH...
  • Page 20  Enter hysteresis 1400 (amount to be filled)  Save to view display preview TDE Instruments GmbH...
  • Page 21  Thresholds are shown  Output 1 is activated TDE Instruments GmbH...
  • Page 22  Change to tab „Advanced“  Type text for output 1 „Pump on“ TDE Instruments GmbH...
  • Page 23  Configuration completed TDE Instruments GmbH...
  • Page 24 Thank you for your attention! TDE Instruments GmbH Gewerbestraße 8 D-71144 Steinenbronn Info@tde-instruments.de +49 7157 20801 TDE Instruments GmbH...
