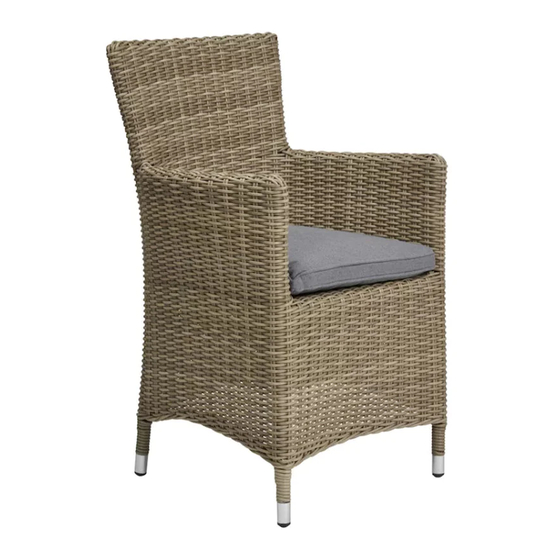

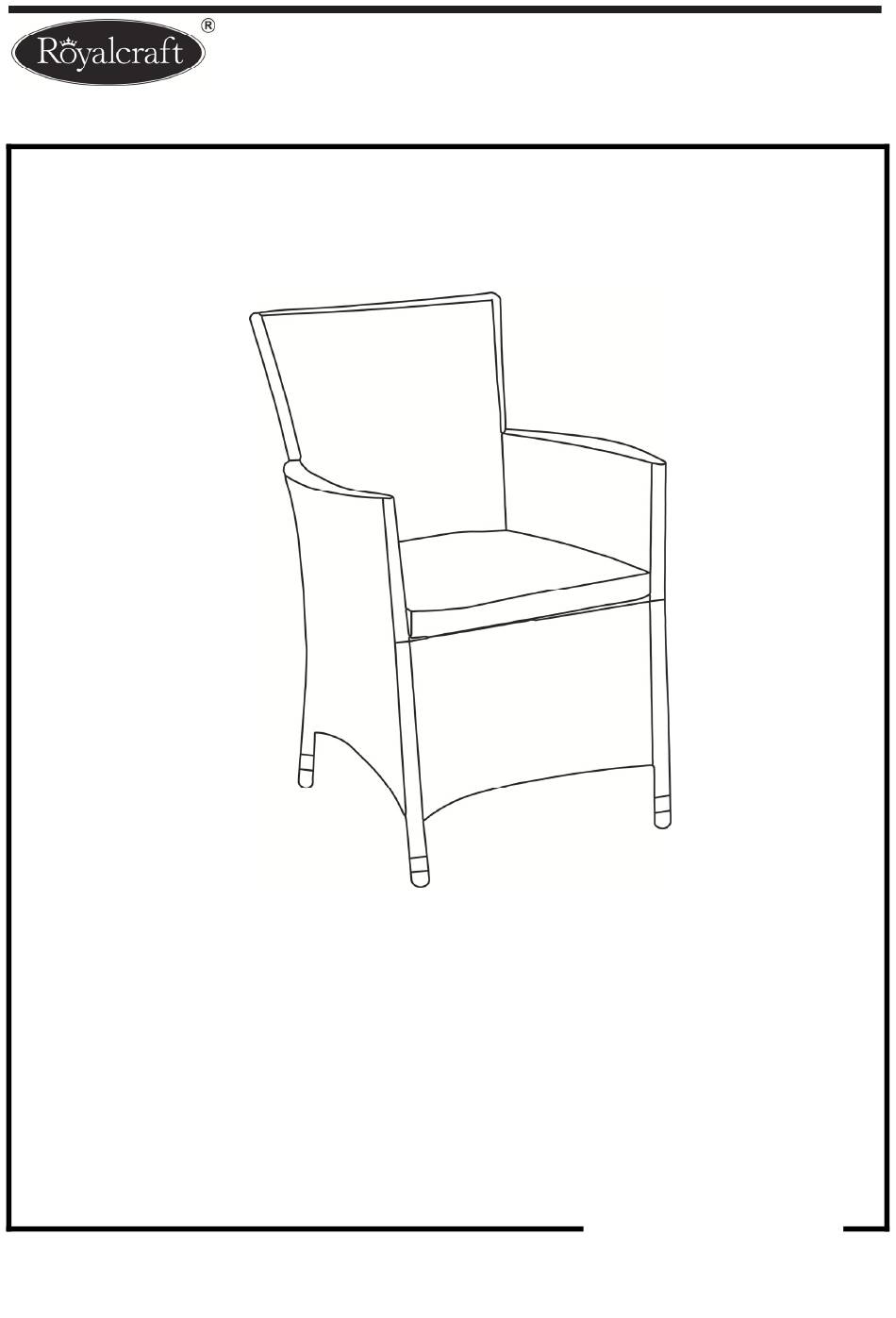

- Page 1 Cannes KD Carver Chair incl. cushion Assembly Instructions Product size: W59*D61*H90.5 cm This product is for Domestic use only! IMPORTANT, RETAIN FOR FUTURE REFERENCE READ CAREFULLY www.royalcraft.co.uk Produced in China for A. Mir & Co., Ltd. © A. Mir & Co., Ltd. 1 / 6 ...
- Page 2 Cannes KD Carver Chair incl. cushion Assembly Instructions Before you start wipe with a clean, dry cloth. Warnings Don’ts IMPORTANT, RETAIN FOR FUTURE REFERENCE READ CAREFULLY Never tilt the chair during use. See enclosed instructions for assembly, safety and care Do not stand or climb onto the product.
- Page 3 Cannes KD Carver Chair incl. cushion Assembly Instructions Components, fixtures & fittings (not actual size) Parts List Part Part Diagram Diagram 2 PCS 2 PCS Backrest Front Leg 2 PCS 2 PCS Left Armrest/Leg Right Armrest/Leg 2 PCS 2 PCS...
- Page 4 Cannes KD Carver Chair incl. cushion Assembly Instructions Step by step assembly instructions Step One Align Backrest (A) with Right Armrest/Leg (D). Carefully insert the tubular mating part of Right Armrest/Leg (D) into the end of the tube on Backrest (A).
- Page 5 Cannes KD Carver Chair incl. cushion Assembly Instructions Step Four Turn the partly-assembled chair upside down. Locate assembly holes, connect all parts using Washers (F3) and Bolts (F63). Make sure all bolts are in place and turn freely. At this stage, don’t tighten the bolts.
- Page 6 Cannes KD Carver Chair incl. cushion Assembly Instructions Step Seven Level the chair with pre-fitted adjustable foot. Adjustable Foot Step Eight Place the Seat Cushion (F) onto the Seat Panel (E). Your chair is now ready for use.
