Please Note: Diagrams are for Assembly Reference only, it may not
represent the Actual Product accurately.
Furniture should be covered/stored whilst not in use to prolong its longevity.
This Box is mainly for storing the light things. Please DO NOT OVERLOAD.
IMPORTANT, RETAIN FOR FUTURE REFERENCE
Note: There are Brakes on the Castors. Always Press the Brakes to
stop the Box when the idea location is selected.
Always Release the Brakes before moving the Box to avoid
the castor damage.
©
Royalcraft Limited

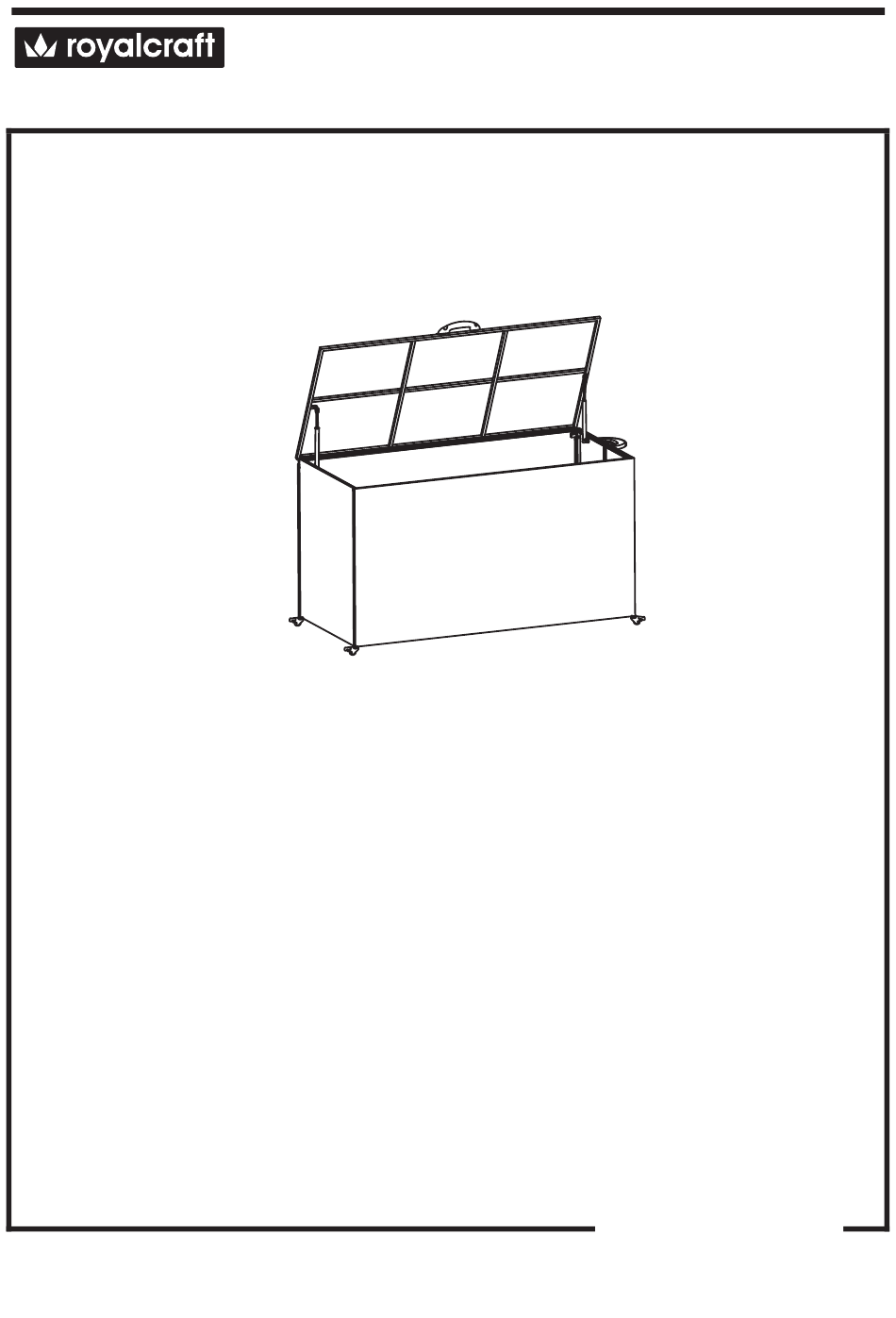

KD CUSHION STORAGE BOX
Item Code: CHARBOX826L; CHARBOX645L; CHARBOX510L;
Assembly Instructions
W160/162*D77/80*H93CM (
W150/152*D75/78*H80CM (
W120/122*D75/78*H80CM (
(It should also be covered in adverse weather.)
READ CAREFULLY
NATBOX826L; NATBOX645L; NATBOX510L
Product size:
CHARBOX826L; NATBOX826L)
CHARBOX645L; NATBOX645L)
CHARBOX510L; NATBOX510L)
www.royalcraft.co.uk
1 / 6
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Royalcraft KD CHARBOX826L
Summary of Contents for Royalcraft KD CHARBOX826L
- Page 1 Note: There are Brakes on the Castors. Always Press the Brakes to stop the Box when the idea location is selected. Always Release the Brakes before moving the Box to avoid the castor damage. www.royalcraft.co.uk © 1 / 6 Royalcraft Limited...
-
Page 2: Before You Start
Tips: Do NOT fully tighten bolts before all components are connected. Only fully tighten once you are satisfied with the alignment of all components. Do not overtighten the bolts. www.royalcraft.co.uk © 2 / 6 Royalcraft Limited... - Page 3 1 PC Side Panel Side Panel Handle is to be assembled by the user. 1 PC 1 PC Lid with Bottom Panel Pneumatic Rod 2 PCS Handle 1 PC 4 PCS Lining Castor www.royalcraft.co.uk © 3 / 6 Royalcraft Limited...
- Page 4 Back Panel (B), Side Panel (C) and Side Panel (D) together using Bolts (W35) . NOTE: Do not fully tighten any of the bolts until all bolts are in place and aligned. www.royalcraft.co.uk © 4 / 6 Royalcraft Limited...
- Page 5 Attach the Lid (F) to the Back Panel (B) using Washers (F2), Bolts (W25) and Bolt Head Caps (F3). Attach the Handels (H) to the Lid (F) and Side Panel (D) using Bolts (N20) , tighten with Allen Key (AK). www.royalcraft.co.uk © 5 / 6 Royalcraft Limited...
- Page 6 Be careful and don’t pinch your fingers. Always be careful when close the lid. Drop down the lid slowly. Children and Kids should NOT use this box. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE www.royalcraft.co.uk © 6 / 6 Royalcraft Limited...
