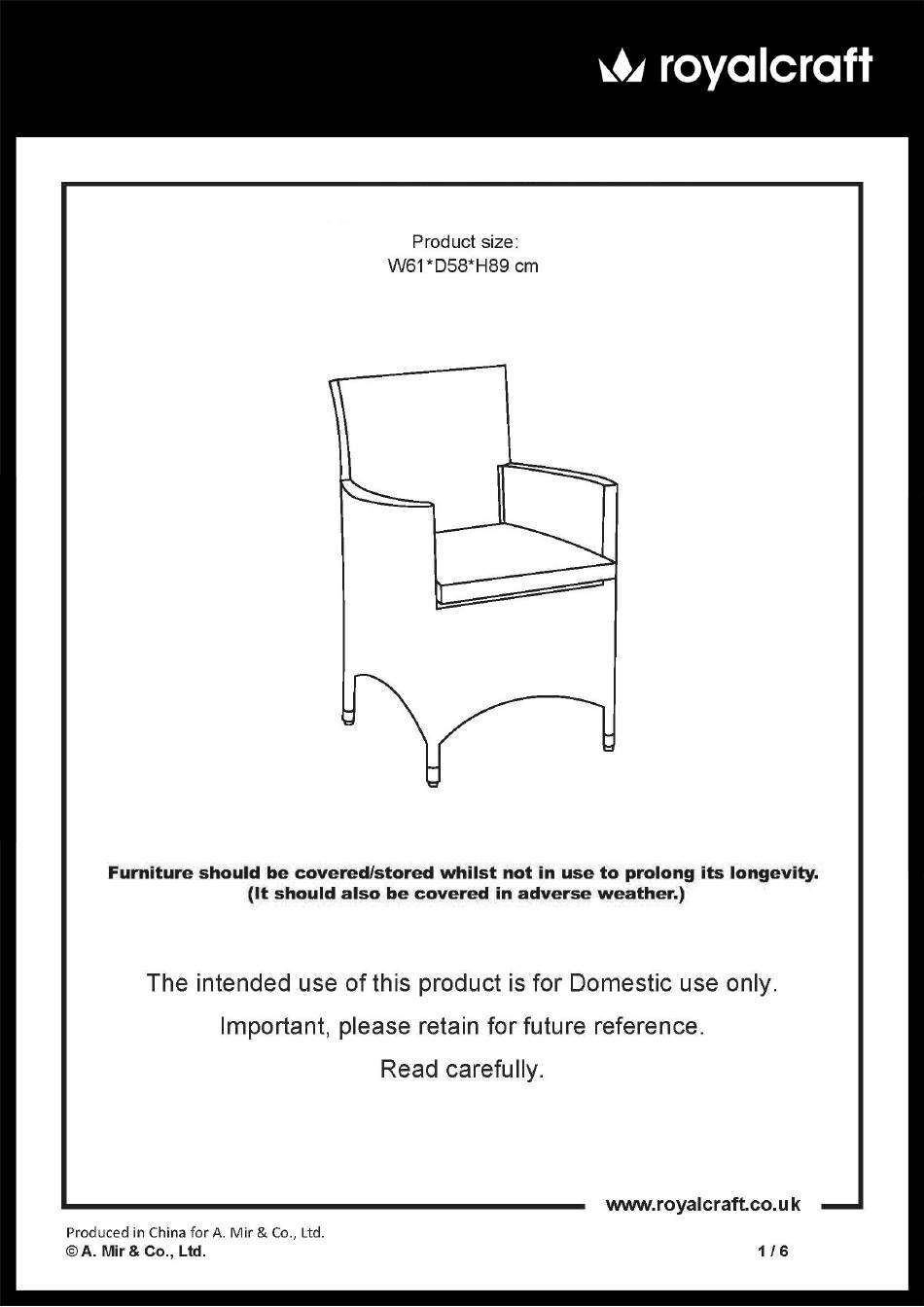

- Page 2 NEVADA KD CARVER CHAIR Assembly Instructions Before you start Warnings Where instructions as to the; storage, commissioning, installation, use and maintenance of the goods or (if there is none) good trade practice are not followed and a defect arises this will void the IMPORTANT, RETAIN FOR FUTURE REFERENCE 12 month manufacturer's guarantee on the product.
- Page 3 NEVADA KD CARVER CHAIR Assembly Instructions Components, fixtures & fittings (not actual size) Parts List Part Part Diagram Qty. Diagram Qty. 2 PCS 2 PCS Backrest Front Leg 2 PCS 2 PCS Left Armrest/Leg Right Armrest/Leg 2 PCS 2 PCS...
- Page 4 NEVADA KD CARVER CHAIR Assembly Instructions Step by step assembly instructions Step One Align Backrest (A) with Right Armrest/Leg (D). Carefully insert the tubular mating part of Right Armrest/Leg (D) into the end of the tube on Backrest (A). Step Two Repeat above steps for Left Armrest/Leg (C) as shown.
- Page 5 NEVADA KD CARVER CHAIR Assembly Instructions Step Four Turn the partly-assembled chair upside down. Locate assembly holes, connect all parts using Washers (F3) and Bolts (W20). Make sure all bolts are in place and turn freely. At this stage, don’t tighten the bolts.
- Page 6 NEVADA KD CARVER CHAIR Assembly Instructions Step Seven Level the chair with pre-fitted adjustable foot. Adjustable Foot Step Eight Place the Seat Cushion (F) onto the Seat Panel (E). Your chair is now ready for use. Never tilt the Chair during use.
