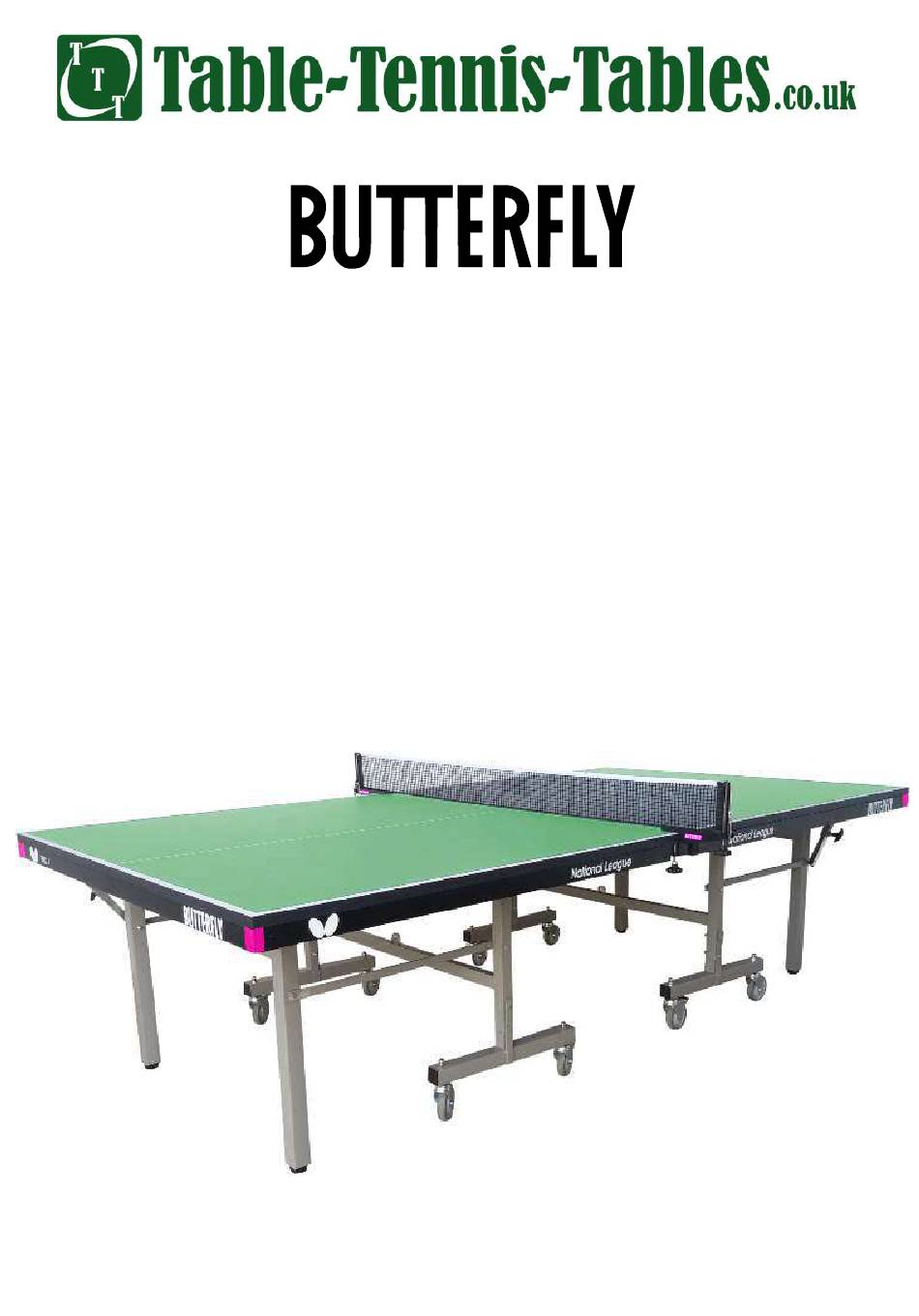

- Page 1 National league I ndoor Table Tennis Table Assembly Instructions...
- Page 2 P13 P14 1. TABLE TOP 25MM LAMINATED BOARD- 1525×1370×25MM - 2 NOS. 17. BOLTS FOR SIDE LOCK ATTACHED TO BRACKET - 3 ×6MM - 2 NOS. 2. END FRAME PIPE -1525×50×25MM - 2 NOS. 18. DOME NUT - 10MM- 8 NOS. 3.
- Page 3 P-28 - 7.5MM - QTY. - 8 P-28 - 62×7.5MM - QTY. - 8 P-32 - 7.5/6 MM - QTY. - 2 P-9 - 510×200×45×45 MM - QTY. - 4 ADULT ASSEMBLY REQUIRED PLEASE READ THE SAFETY INSTRUCTIONS AT THE BOTTOM OF PAGE- 4 STEP - 1 FIX THE WHEEL ASSEMBLY (P9)TO BOTH INNER (P7) LEGS OF EACH HALF OF THE TABLE USING 62×7.5MM NUT &...
- Page 4 STEP- 3 NOW SLIGHTLY PULL OUT THE PULL SIDE LOCK (P23) & SLOWL Y BRING DOWN THE TABLE STEP- 4 REPEAT THE SAME FOR THE 2ND HALF OF THE TABLE AS IN STEP- 1, 2, & 3 STEP- 5 STEP- 6 PLACE NET ATTACH POST TO THE LEFT...
