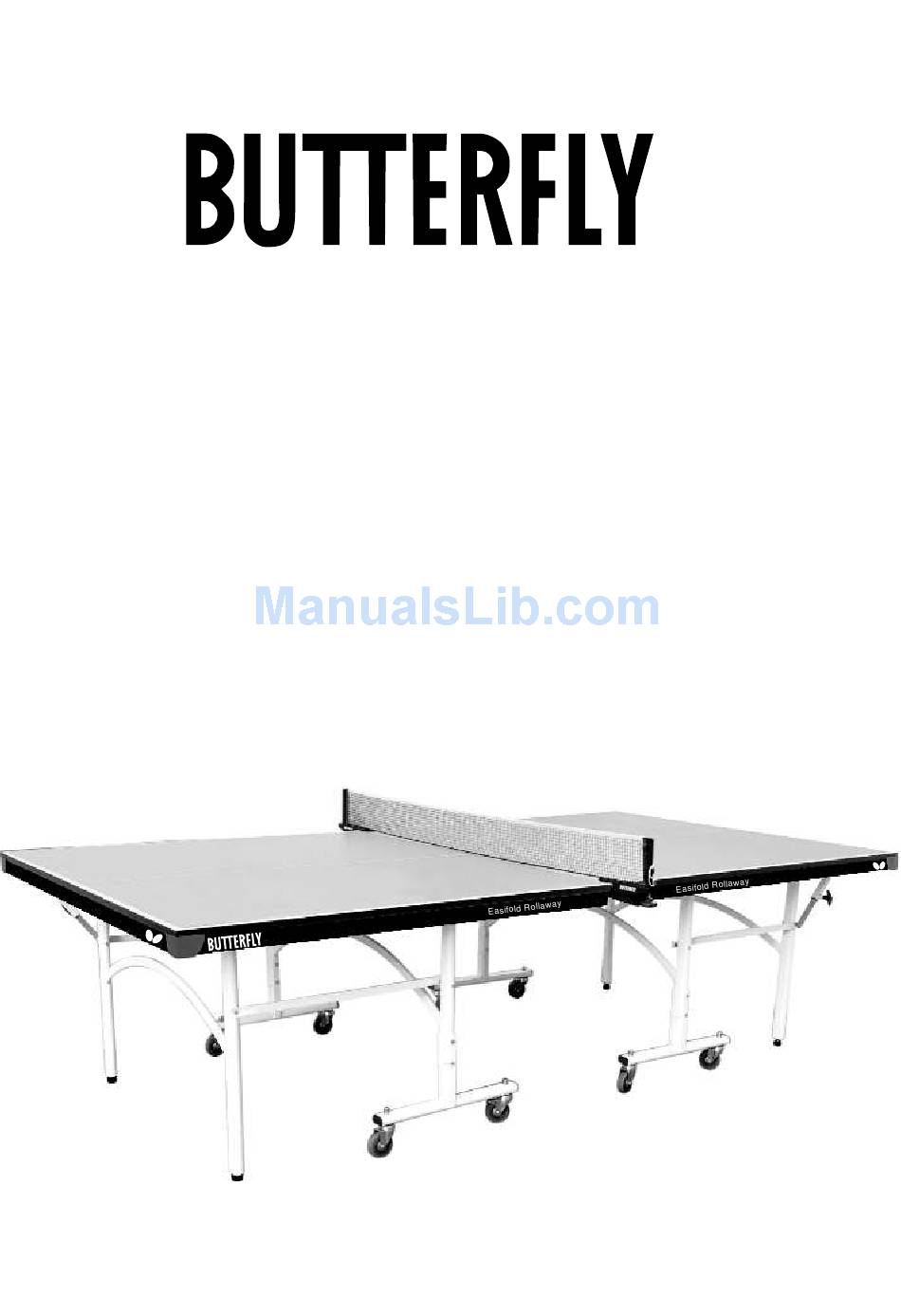

- Page 1 Easifold Rollaway 19 Table Tennis Table Assembly Instructions...
-
Page 2: Parts List
PARTS LIST 1. TABLE TOP PARTICLE BOARD- 1525×1370×18MM - 2 NOS. 17. BOLTS FOR SIDE LOCK ATTACHED TO BRACKET - 31×6MM - 2 NOS. 2. END FRAME PIPE -1490×30×20MM - 2 NOS. 18. DOME NUT - 10MM- 8 NOS. 3. SIDE FRAME PIPE - 1310×30×20MM - 4 NOS. 19. - Page 3 P-28 - 62×7.5MM - QTY. - 8 P-28 - 7.5MM - QTY. - 8 P-5 - 7.5/6 MM - QTY. - 2 P-9 - 500×230×45×25 MM - QTY. - 4 ADULT ASSEMBLY REQUIRED PLEASE READ THE SAFETY INSTRUCTIONS AT THE BOTTOM OF PAGE- 4 STEP - 1 CAREFULLY LIFT THE TABLE TOP HALF TO ATTACH WHEEL ASSEMBLY (P9) WITH INNER LEG (P7) USING...
- Page 4 STEP- 3 PULL NOW SLIGHTLY PULL OUT THE SIDE LOCK (P23) & SLOWLY BRING DOWN THE TABLE STEP- 4 REPEAT THE SAME FOR THE 2ND HALF OF THE TABLE AS IN STEP- 1, 2, & 3 STEP- 5 STEP- 6 STEP- 7 ADJUST THE HEIGHT REQUIRED WITH THE HELP OF LEVELLERS (P21) ATTACHED ON ALL 4 OUTER LEGS (P6).
