Butterfly AMICUS ADVANCE Owner's Manual

Table Tennis Robot
Important: Please read instructions carefully before using the equipment.
The chapter Control Panel (Quick Reference Guide) outlines the basic functions for operating the Table Tennis Robot AMICUS ADVANCE.

1. Assembly

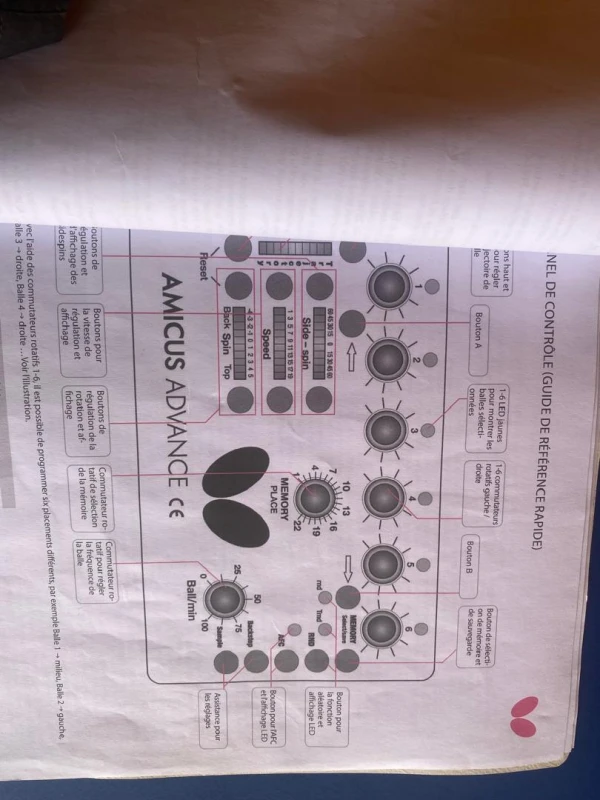

2. Control Panel (Quick Reference Guide)
3. Operation Switching on the Machine, Settings,
Selecting Type of Ball, Ball Placement, Random
placement, Rally programing, Height of the Projection
Head, AFC function, Memory, Ball Frequency
Switching off the Machine, Transport
4. Maintenance and Repair
5. Trouble Shooting
6. List of Replacement Parts
7. Technical Data Steps For Further Development
From novice to professional, from defender to attacker,
... ideal for every type of player and every level of play
Congratulations, you are now the owner
of a Butterfly table tennis robot! The ma-
nufacturer offers a full 2 year guarantee
as well as a 5 year service plan covering
repairs and replacement parts, effective
from the date of purchase. Please ensure
you keep your receipt!

Special features:

1. Unique worldwide innovation: Ball
delivery with state of the art three-
wheel technology
2. The wheels are manufactured using
rigid sponge with a special coating

Instruction manual

1. Assembly
The following components are included
with the robot and must either be assem-
bled or connected to the machine prior to
its use.
a) Base unit with collection net
b) 24V DC power adapter
c) Control unit
d) Extension cable
e) Control unit holder
Other components: Allen keys, projection
wheels, tube for wheel adjustment, spare
rubber for the collection net, Velcro strips
for securing the collection net.
1. Place the base unit on the table in an
upright position (connections facing you).
(Fig.1). Open out the net supporting frame
into Position 1. (Fig. 2); the metal poles
facing you are for securing the base unit to
the table as seen in the photograph.
2. Attach the base unit to the table with the
aid of the preassembled holder (see photo-
graph) and rotate the head by loosening
Fig. 1 Fig. 2
AMICUS ADVANCE
p. 1
p. 2
p. 2 - 3
p. 3
p. 4
p. 4
p. 4
for better durability
3. Compact, solid, functional
construction (6kg)
4. A large all-round collection net
5. Well designed and user-friendly
control panel
6. Variable ball placement, adjustable to
desired spin, speed and trajectory
7. Automatic correction of length of ball
delivery
8. Memory and AFC (Automatic
Frequency Control) functions
9. Remote control
10. All functions adjustable from the
the large screw on the base unit, turning
it in the opposite direction (180 degrees).
3.Standing behind the machine, fold down
the net supporting frame completely by gr-
ipping the top part of the frame on each
side and pulling the sides apart until fully
extended (Fig. 3) Attach the plastic corner
Fig. 3
Fig. 4
Fig. 5
player's side on the control panel
11. Adjustable height of ball delivery
Please note:
12. Please read this instruction manual
carefully before using the machine!
13. The Table Tennis Robot may only be
connected to a 100-230V power supply
14. The projection wheels rotate at high
speed therefore avoid touching the
wheels while the machine is running as
this can cause injury!
15. The Table Tennis Robot, AMICUS
ADVANCE, should only be used in c
losed and dry rooms!
pieces to the corners of the table (Fig. 4)
4.Then pull the ends of the ball collection
net between the table tennis net posts and
its supports, and secure the rubber bands
to the clamp screws. Secure the velcro
strips, which are attached to the side of
the ball collection net, to their counterparts
fixed to the plastic corner pieces.
5. Connect the extension cable and the
adapter to the appropriate connections
found on the side of the base unit (Fig.7).
The cable on the opposite side of the table
is then connected to the control unit which
you should then mount onto the players-
side of the table. ( Fig. 8.)
Fig. 6
Fig. 7
