Delta Children 22404 Assembly Instructions Manual

4-in-1 discover & play musical walker, walker/rocker/360 activity center/walk-behind
Hide thumbs

Advertisement

Table of Contents

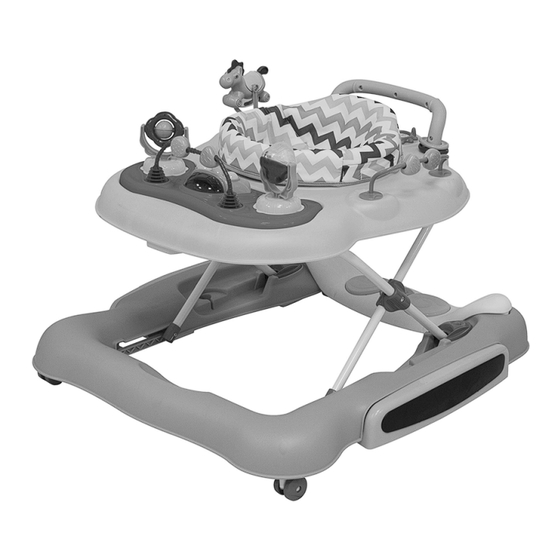

4-IN-1 DISCOVER & PLAY
MUSICAL WALKER
WALKER / ROCKER / 360 ACTIVITY CENTER / WALK-BEHIND
22404/
LF22404
ASSEMBLY INSTRUCTIONS
WARNING:
CHOKING HAZARD
Adult assembly required because of
small parts. Keep assembly parts out
of reach of children under 3 years.
REQUIRED: (x4) "AA" Batteries (not Included)
Phillips Screwdriver (not included)
IMPORTANT: Read all instructions before assembly and use of the product. Keep the
instructions for future reference.
www.DeltaChildren.com I Customer Service: (646) 435-8726
Styles and colors may vary
DCP-IM-10032019-F8
