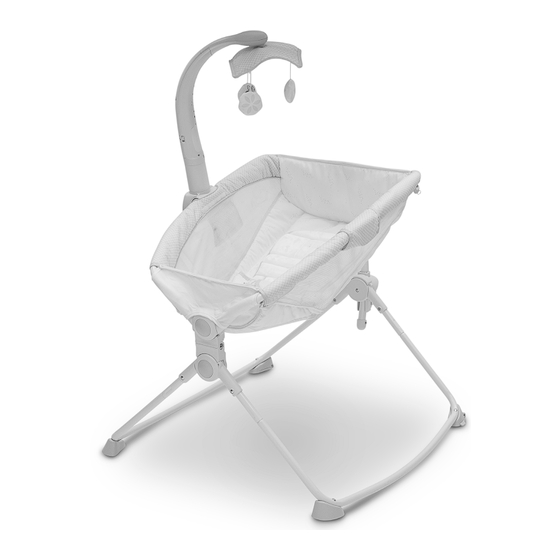

Delta Children 27404 Instruction Manual

Incline sleeper with adjustable feeding position for newborns
Hide thumbs

Advertisement

Quick Links

Download this manual

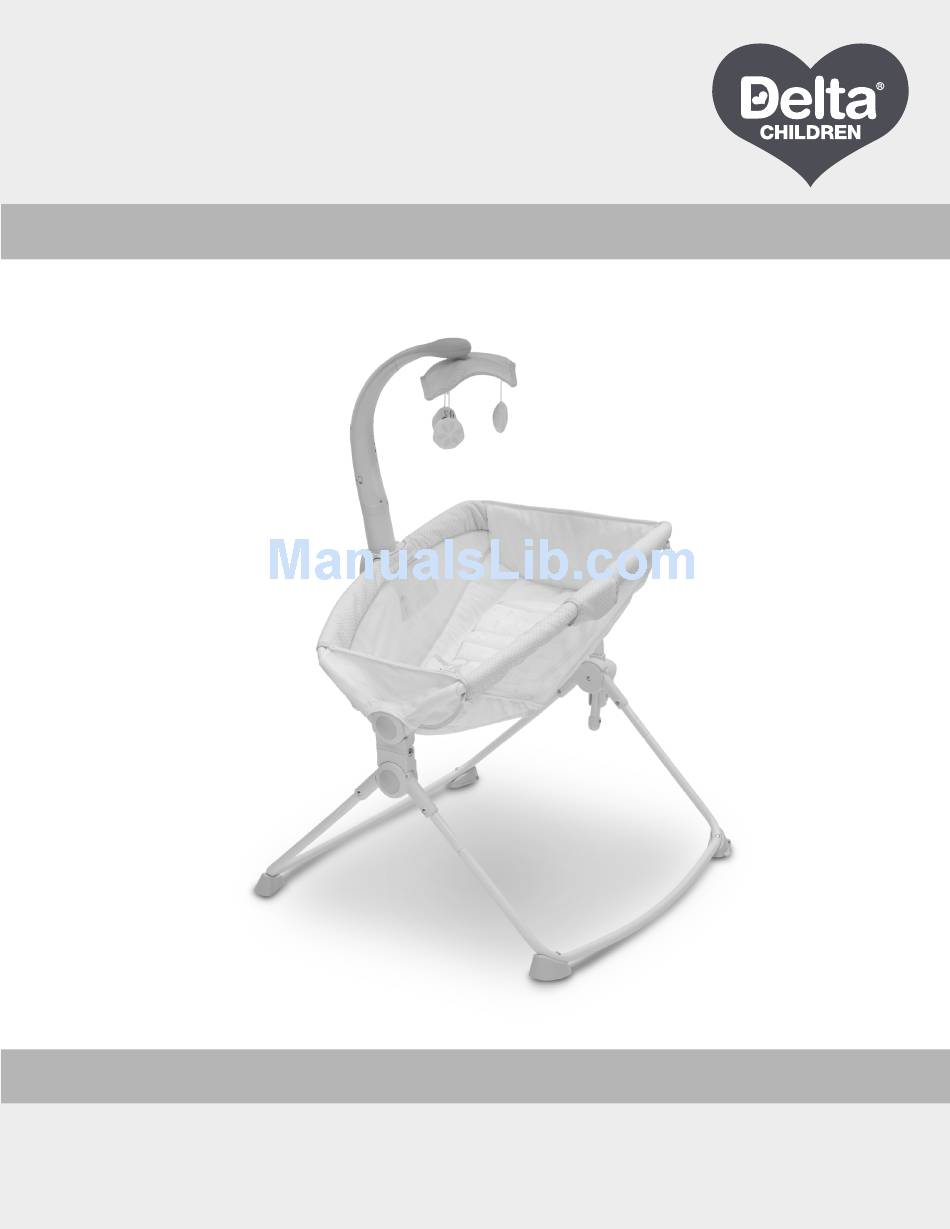

Incline Sleeper
with Adjustable Feeding Position
For Newborns
ADULT ASSEMBLY REQUIRED
THIS PRODUCT CONTAINS SMALL PARTS
STYLES AND COLORS MAY VARY
27404
Read all instructions BEFORE assembly and USE of product. KEEP INSTRUCTIONS FOR FUTURE USE.
Required Tools: 4 "AA" Batteries (Not included), Screwdriver (Not included)
Customer Service: 1-(800)-377-3777
INSTRUCTION MANUAL
www.deltachildren.com
DCPIM12072016

Advertisement

loading
Need help?

Need help?

Do you have a question about the 27404 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Delta Children 27404

Summary of Contents for Delta Children 27404

  • Page 1 INSTRUCTION MANUAL ADULT ASSEMBLY REQUIRED THIS PRODUCT CONTAINS SMALL PARTS STYLES AND COLORS MAY VARY 27404 Read all instructions BEFORE assembly and USE of product. KEEP INSTRUCTIONS FOR FUTURE USE. Required Tools: 4 "AA" Batteries (Not included), Screwdriver (Not included) www.deltachildren.com...
  • Page 2 WARNING: Failure to follow these warnings and the instructions could result in serious injury or death. FALL HAZARD: To prevent falls, STOP use of this product when the infant begins to wiggle out of position or turn over in the product, or head touches the upper edge of the product, or weighs more than 15 lb (6.8 kg) (approximately 3 months of age.) ALWAYS use restraint system.
  • Page 3 Right Side Top Support Tube (Inner Side) Left Side Top Support Tube (Outer Side) Front Support Back Support Headrest Mobile Arm Insert Hole Mobile Arm Insert Hole Circle Plush Bear Canopy Seat Pad Canopy (On Some Models) Mobile Arm (On Some Models) Locking Foot Back Right Side...
  • Page 4 ASSEMBLY ATTACHING HUBS TO BASE TUBES Back Support 1. Insert the end of the right side base tube into the back support hub, until it "clicks" into a fully locked position as shown. (Fig. 1) Right Side Base Tube Fully Locked Position Fig.
  • Page 5 ASSEMBLY Back Support Front Support 3. Insert left side base tube into the front and back support hubs until they "click" into a fully locked position as shown. (Fig 3). Locking Foot Side Left Side Base Tube Fig. 3 ATTACHING TOP SUPPORT TUBES Right Side Top Insert the left / right top support tubes into the top Support Tube...
  • Page 6 ASSEMBLY OPENING INCLINE SLEEPER PULL First, press the top button on the front support Fig. 5 hub and pull apart the top support tubes until they "click" into a fully opened and locked position (Fig. 5). Second, press the bottom button on the front support hub and pull apart base tubes until First, press top button they "click"...
  • Page 7 ASSEMBLY Pull and align the inside fabric zipper edge to the outside printed fabric zipper edge to allow both edges to be fully zippered closed. (Fig. 8) Repeat on other side. Headrest Velcro Mobile Arm Insert Hole Zipper Zipper Velcro Mobile Arm Insert Hole Fig.
  • Page 8 ASSEMBLY ATTACHING INFANT SUPPORT TO SEAT PAD Infant support pad gets placed on top of seat pad. Insert the waist belts attached to seat pad through the slots on the infant support pad. (Fig.10) Make sure the waist belts are not twisted. Insert the restraint system through the bottom slot on the infant support pad (Fig.

  • Page 9: Battery Installation

    ASSEMBLY ATTACHING MOBILE ARM To attach the bear canopy to the mobile arm, first push the canopy up to the mobile arm tip. (Fig. 12) To disassemble the mobile for storage, press the tab on the mobile arm, and pull the mobile down. (Fig.
  • Page 10 ASSEMBLY Align and slide down mobile arm onto plastic housing. It will "click" when it is fully clipped on. (Fig. 13) 90 swivel arm (Fig. 14) NOTE: When removing baby from incline sleeper, rotate the mobile arm away from the sleeper.

  • Page 11: Operation

    OPERATION MOBILE AND VIBRATIONS UNIT OPERATION Mobile Functions On/Off Switch • Push the Mobile Functions On/Off button at the base of the mobile arm to turn on power. This is the main power switch to the mobile arm and also turns on the power LED on the Night Light button. The LED will stay on in the dark.

  • Page 12: Securing Child

    SECURING CHILD Place your child in the incline sleeper. Position the crotch belt between your child’s legs. Fasten both waist belts to the buckle on Waist Belt each side of the crotch belt. Make sure you Waist Belt hear a “click” on both sides. Check to be sure the restraint system is securely attached by pulling it away from your child.
  • Page 13 SECURING CHILD To tighten the waist belts: • Feed the anchored end of a waist belt up through the buckle to form a loop . Pull the free end of the waist belt . (Fig. 17) • Repeat this procedure to tighten the other waist belt.
  • Page 14 • When used as a feeder: FALL HAZARD: To prevent death or serious injury, always keep child within arm’s reach. SUFFOCATION HAZARD: NEVER allow infant to sleep in product when in the highest position. Highest position is for feeding only. HEIGHT ADJUSTMENTS - SLEEPING TO FEEDING NOTE: Never raise with child in seat.
  • Page 15 ASSEMBLY ROCKING AND NON-ROCKING POSITION Non-rocking Position There is a rocking and non-rocking position. Rotate out the non-rocking brakes, located on the bottom left / right side back base tubes, until they click into a fully locked position. (Fig. 22) To return to a rocking position, rotate rocking brakes back into a closed position.
  • Page 16 ASSEMBLY REMOVING SOUND MODULE First, pull outward on inside mobile arm clip, then lift the mobile arm off the top support tube. (Fig. 24) Pull outward Fig. 24 REMOVING SEAT PAD Separate velcro flaps on both top and bottom of the incline sleeper.
  • Page 17 FOLDING INCLINE SLEEPER WITH OR WITHOUT SEAT PAD First, push the top button on the locking hub and push together the top support tubes until they are fully closed. (Fig. 26) Second, press the bottom button on the locking hub and push the base tubes together until they are fully closed.

  • Page 18: Care And Maintenance

    CARE AND MAINTENANCE Check Incline Sleeper for worn parts, torn material or stitching periodically. Replace or repair the parts as needed. Use Delta replacement parts. The seat pad and infant support pad are machine washable. Wash them separately in cold water on the gentle cycle.
