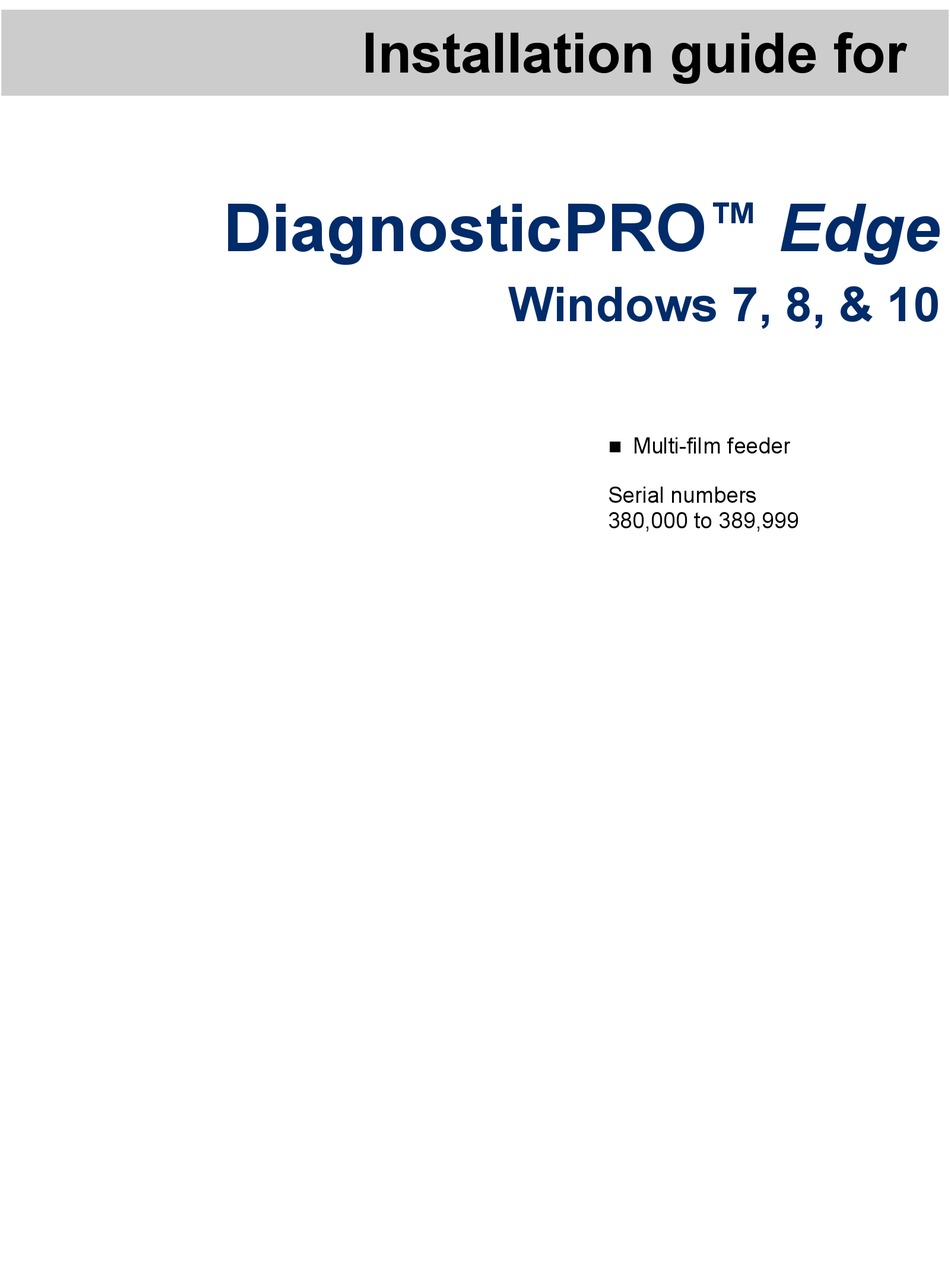

Installation guide for
DiagnosticPRO
Edge
Windows 7, 8, & 10
Multi-film feeder
Serial numbers
380,000 to 389,999

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DiagnosticPRO Edge and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for VIDAR DiagnosticPRO Edge

  • Page 1 Installation guide for DiagnosticPRO Edge ™ Windows 7, 8, & 10 Multi-film feeder  Serial numbers 380,000 to 389,999...
  • Page 2 © Copyright by November 2019 VIDAR Systems Corporation. All rights reserved. NOTE The digitizers do not include application specific software (Picture Archiving and Communications [PAC] system, Teleradiology, Oncology Systems, or Computer Aided Detection [CAD] software). The manufacturer of the application software will determine specific indications for use. These third-party software packages or complete systems are approved separately from a regulatory perspective.
  • Page 3 Product compliance testing was conducted using VIDAR shielded cables. Modifications to the digitizer or the VIDAR shielded cables or the use of cables other than those available from VIDAR could void the user’s authority to operate the equipment.
  • Page 4 2.4 sq in (15.5 sq cm). Light from the LED illuminator may be indirectly observed in the digitizer’s film entry and exit areas. 19616-001 Rev. H DiagnosticPRO Edge Film Digitizer Installation Guide...
  • Page 5: Table Of Contents

    Install Device Drivers for Windows 7, 8, and 10 ..............22   1. Apply Power to the Digitizer and the PC ............... 22   About the VIDAR Drivers ....................23   2. Install the VIDAR Drivers ....................23   Appendix: Electromagnetic guidance .................. 30   Appendix: Symbols ....................... 34  ...
  • Page 6: Intended Use

    Intended Use The DiagnosticPRO Edge digitizer is used for making digital copies of medical x-ray film, including printed and radiographic film. The target users of these devices are medical professionals or trained staff for use as secondary capture images for consultation, review and final interpretation.
  • Page 7: Notice To Users

    In the event of any serious incident occurring in relation to the device please report to the manufacturer and the competent authority of the Member State in which the user and/or patient is established. 19616-001 Rev. H DiagnosticPRO Edge Film Digitizer Installation Guide...
  • Page 8: Unpack The Digitizer

    Unpack and inspect the digitizer’s parts.  Identify the digitizer’s parts.  1. Look for damage. Before unpacking the DiagnosticPRO Edge film digitizer, examine the shipping carton for damage. If the carton is damaged: Notify the shipper immediately.  Take photographs of the damage.
  • Page 9: Unpack The Shipping Carton

    Failure to properly pack, or failure to use VIDAR authorized shipping materials, will void the product’s warranty, and will likely result in costly repairs.
  • Page 10 Place the group on one foam end cap. Lift off the upper foam end cap. d. Remove the feeder box from the lower end cap. 19616-001 Rev. H DiagnosticPRO Edge Film Digitizer Installation Guide...
  • Page 11 Failure to properly pack, or failure to use VIDAR authorized shipping materials, will void the product’s warranty, and will likely result in costly repairs.
  • Page 12: Identify The Parts

    (Note: items are not shown to same scale.) DiagnosticPRO Edge  film digitizer Multi-film feed tray   Film tray Power Adapter. Contact  Service Provider or Vidar Systems Corp for P/N 19616-001 Rev. H DiagnosticPRO Edge Film Digitizer Installation Guide...
  • Page 13: Optional Items

    USB Cable, VIDAR part number 4618-002 Optional items  Description Third-party software instructions (not supplied for the market in China)  Lint-free wipes, VIDAR part number 15194 (package of 10)  19616-001 Rev. H DiagnosticPRO Edge Film Digitizer Installation Guide...
  • Page 14: Identify Important Features

    Rear panel View the digitizer from the rear to identify the USB port and power connector. USB port Power connector 19616-001 Rev. H DiagnosticPRO Edge Film Digitizer Installation Guide...
  • Page 15: If Anything Is Missing

    Complete the form. e. Mail or fax the form to VIDAR Systems Corp. If your digitizer needs service, this information should be on file at VIDAR. Contact VIDAR Technical Support if you have any questions about installing or using your VIDAR film digitizer: Phone: 1-800-471-SCAN (1-800-471-7226) 1-703-471-7070 outside the U.S.
  • Page 16: Assemble The Digitizer

    2. Orient the film feeder with the back toward you (multi-film feeder is shown; single-film feeder is similar). You should be able to see the thumbscrew at the bottom rear of the feeder. Thumbscrew 19616-001 Rev. H DiagnosticPRO Edge Film Digitizer Installation Guide...
  • Page 17 3. Insert the tabs on the bottom of the feeder into the slots on the digitizer base. 19616-001 Rev. H DiagnosticPRO Edge Film Digitizer Installation Guide...
  • Page 18 5. Connect the multi-film feeder cable between the feeder and digitizer base as shown below. Multi-film feeder cable 6. Go to “Placing the digitizer on a table,” the next chapter in this manual. 19616-001 Rev. H DiagnosticPRO Edge Film Digitizer Installation Guide...
  • Page 19: Place The Digitizer On A Table

    5° tilt. The digitizer must not be placed on the floor. VIDAR Systems Corp. is not liable for any damages or injuries to persons or property associated with improper placement or use of the digitizer.
  • Page 20: Final Assembly

    Connect the USB cable and power supply CAUTION: Power the digitizer only with the power supply adapter provided by your Service Provider or Vidar Systems Corp. 1. Connect the USB cable to the USB port on the back of the digitizer. Do not connect the USB cable to the PC until instructed later.
  • Page 21: Install The Exit Tray

    2. When properly positioned, the exit tray will protrude a small distance from the digitizer, and it can’t be pulled out without lifting it off the internal pins. Exit tray in position 19616-001 Rev. H DiagnosticPRO Edge Film Digitizer Installation Guide...
  • Page 22: Install Device Drivers For Windows 7, 8, And 10

    Observe the LED on the front of the digitizer: the LED should flash light blue for a little over 5 minutes. This indicates the digitizer is performing internal tests. d. When the LED stops flashing and remains solid green, proceed to step 2. 19616-001 Rev. H DiagnosticPRO Edge Film Digitizer Installation Guide...
  • Page 23: About The Vidar Drivers

    PC. Wait until you are prompted to connect the digitizer to the PC. b. Turn on the PC. c. Insert the VIDAR DiagnosticPRO Edge Installation CD into the CD-ROM drive. Browse to the CD and double-click on 19090-003 VIDAR_Driver_6.1 Online Install Package.exe on the CD to install the driver.
  • Page 24 In the first screen, click Next >. e. In the License Agreement screen, activate I accept the terms of the license agreement, then click Next >. 19616-001 Rev. H DiagnosticPRO Edge Film Digitizer Installation Guide...
  • Page 25 In the Ready to Install the Program screen, click Install. g. The Setup Status screen will appear. Wait while the files are installed. 19616-001 Rev. H DiagnosticPRO Edge Film Digitizer Installation Guide...
  • Page 26 When installing on Windows 7, 8, & 10, 64 bit the name will appear as Jungo i. When installing on Windows 7, 8, & 10, 32 bit the name will appear as VIDAR j. InstallShield will indicate that installation is complete. However, the driver installation is not complete.
  • Page 27 3. Click “OK” if the Digitizer Information is present on the Screen 4. 64-bit system only: In the Windows 7, 8, & 10 Computer Management window, the digitizer is listed under Jungo. 19616-001 Rev. H DiagnosticPRO Edge Film Digitizer Installation Guide...
  • Page 28 On a 32-bit system: Start > Control Panel > Scanners and Cameras 2. In the device window, right-click VIDAR Film Digitizer, then click Properties in the pop-up menu. 3. In the VIDAR Film Digitizer Properties window, click the VIDAR Properties tab.
  • Page 29 You may need to install other application software to run the digitizer. Note: While the digitizer works with both 32-bit and 64-bit versions of Windows 7, 8, & 10 it only works with 32-bit image processing applications. 19616-001 Rev. H DiagnosticPRO Edge Film Digitizer Installation Guide...
  • Page 30: Appendix: Electromagnetic Guidance

    Guidance and manufacturer’s declaration – electromagnetic equipment The DiagnosticPRO Edge Digitizer is intended for use in a professional healthcare facility environment. The customer or end user of the Digitizer should assure that it is used in such an environment. Emissions test...
  • Page 31 Guidance And Manufacturer’s Declaration – Electromagnetic Immunity Enclosure Port The DiagnosticPRO Edge Digitizer is intended for use in a professional healthcare facility environment. The customer or end user of the Digitizer should assure that it is used in such an environment.
  • Page 32 While communication might not be possible when ME EQUIPMENT that includes radio equipment is tested in its bandwidth, the ME EQUIPMENT or ME SYSTEM shall still be able to provide its BASIC SAFETY and ESSENTIAL PERFORMANCE. 19616-001 Rev. H DiagnosticPRO Edge Film Digitizer Installation Guide...
  • Page 33 Table A- Test specifications for Enclosure Port immunity to RF wireless communications equipment. The DiagnosticPRO Edge Digitizer is intended for use in a professional healthcare facility environment. The customer or the user of the Digitizer can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Digitizer as recommended below, according to the maximum output power of the communications equipment.
  • Page 34: Appendix: Symbols

    For more information about where you can dispose of your waste equipment for recycling please contact your local city office, your household waste disposal service or the shop where you purchased the product. 19616-001 Rev. H DiagnosticPRO Edge Film Digitizer Installation Guide...
  • Page 35 365 Herndon Parkway Herndon, VA 20170 USA Phone: 1-703-471-7070 Main fax: 1-703-471-1165 Web: www.vidar.com Technical Support: Phone: 1-703-471-7070 1-800-471-7226 Fax: 1-703-471-7665 E-mail: medtech@3dsystems.com...
