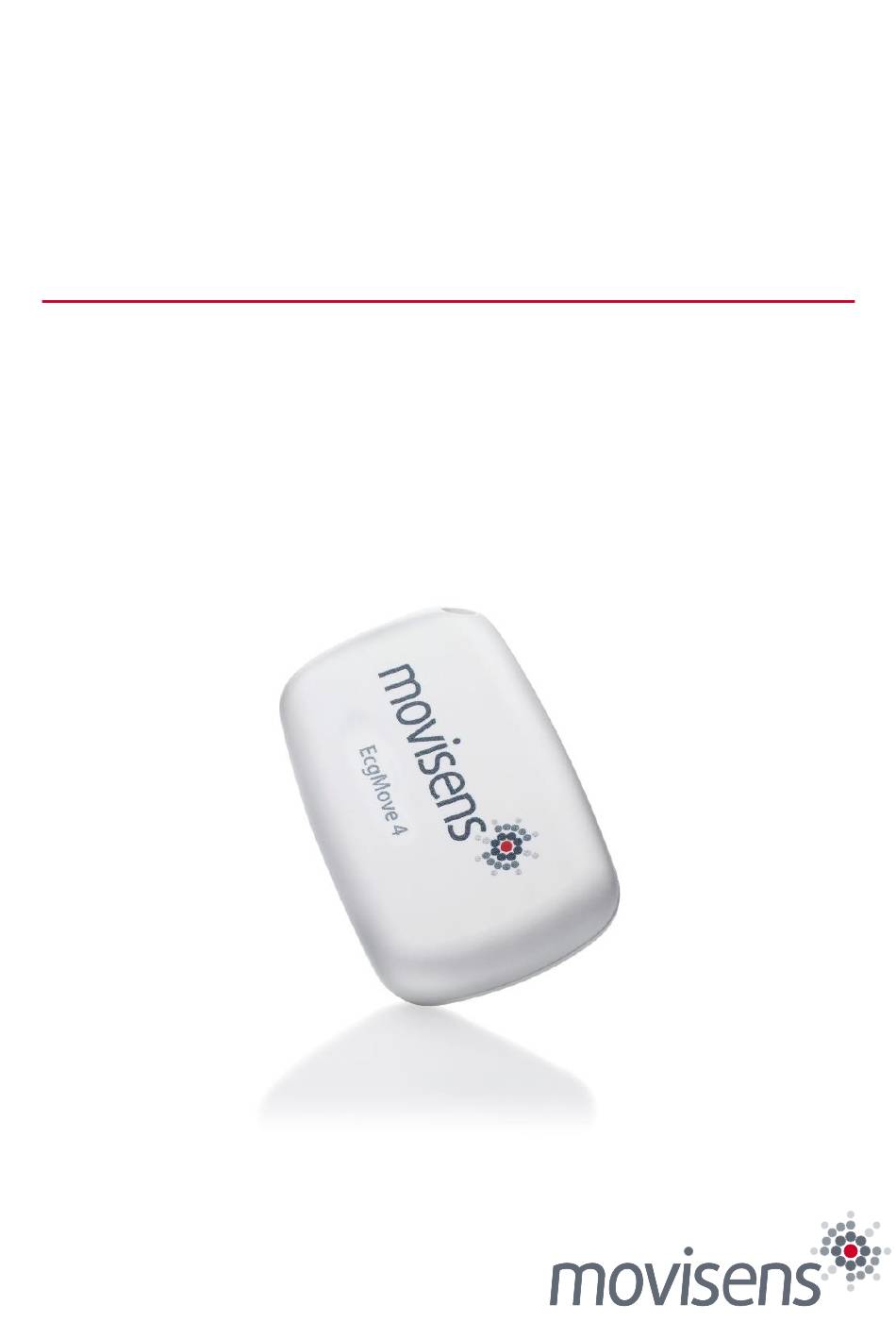

  • Page 1 EcgMove 4 ECG and Physical Activity Sensor Operating and Safety Instructions...
  • Page 2 Imprint EcgMove 4 Operating and Safety Instructions Version: 21.08.2019 movisens GmbH Augartenstraße 1 76137 Karlsruhe Germany Phone: +49 721 381344-0 Fax: +49 721 381344-90 Internet: www.movisens.com E-Mail: info@movisens.com © Copyright: movisens GmbH...
  • Page 3 Welcome! Dear customer, Thank you for choosing the ECG and Physical Activity Sensor EcgMove 4 from movisens. With this sensor, you get the newest technology for mobile monitoring of ECG and physical activity in everyday life. Please read this manual completely and thoroughly before bringing the...

  • Page 4: Intended Use

    EcgMove 4 is designed and tailored for use in research applications. The ECG and physical activity sensor EcgMove 4 is not a medical device! The sensor acquires a single channel ECG signal and can be used with a dry electrode chest belt or with disposable electrodes.

  • Page 5: Safety Instructions

    Please follow these safety instructions. Improper use of the product may impair/affect the protection provided by the product and cause product damage or personal/physical injury: EcgMove 4 is not a medical device. Do not use it for a medical purpose. Only use EcgMove 4 for the intended use.

  • Page 6: Scope Of Delivery

    Accessories The following accessories can be ordered optionally: Article Order No. Chest Belt (XS) For EcgMove 4 and EcgMove 3 30420 Size: XS, Underbust Measurement: 51 to 59 cm Chest Belt (S) For EcgMove 4 and EcgMove 3 30421...
  • Page 7 For EcgMove 4 and EcgMove 3 Size: L, Underbust Measurement: 80 to 110 cm Chest Belt (XL) For EcgMove 4 and EcgMove 3 30424 Size: XL, Underbust Measurement: 110 to 166 Cradle 4 Cradle for EcgMove 4 30400 with Micro USB Interface...

  • Page 8: Description Of The Sensor

    To connect the sensor to a PC, you have to separate it from the chest belt or the electrodes and plug it into the cradle. EcgMove 4 is also equipped with a Bluetooth Smart interface. The sensor can be used in conjunction with a gateway or a mobile phone for live applications.
  • Page 9 User interface and indicators EcgMove 4 is equipped with a multi-colored LED to show the status of the sensor: Status-LED Meaning Flashing red (once The sensor is active and records per second) data Flashing red slowly (every two Delayed recording active...

  • Page 10: Software Installation

    EcgMove 4 features a vibration alarm. It vibrates two times when a marker is set. During measurement a marker can be set by double tapping on the front of the sensor.

  • Page 11: Charging The Sensor

    ✓ The Installation runs automatically in the background. After successful installation, a shortcut “UnisensViewer” is created in the Windows Start Menu. 11 Handling This chapter describes how to prepare a measurement and how to attach the sensor to a test person. Furthermore you get information on how to save, delete and analyze data from the sensor.

  • Page 12: Preparing A Measurement

    Start the SensorManager by selecting Windows Startmenu → movisens SensorManager → SensorManager Step 2: Connect the EcgMove 4 sensor to your PC using the cradle. The SensorManager application shows information about sensor hardware, sensor state and sensor configuration. Before you start a measurement please check the charging status of the battery.
  • Page 13 Attach the EcgMove 4 sensor to the two push buttons. The movisens label on the sensor has to be upright and readable.
  • Page 14 Therefore please take care to attach the chest belt 15 minutes preceding the acquisition of relevant data. If you use a chest belt, you can shorten the time to obtain a good ⚫ signal by moistening the electrode areas with water before attaching the chest belt.

  • Page 15: Stopping A Measurement

    Step 1: Start the SensorManager by selecting Windows Start menu → movisens SensorManager → SensorManager Step 2: Connect EcgMove 4 sensor to the PC using the cradle. Step 3: Click on „Save Data“. Step 4: Please type in the requested information.

  • Page 16: Cleaning Instructions

    Clean the sensor and the chest belt at least after each participant. 12.1 Cleaning the Sensor If you want to clean EcgMove 4, please note the following: Disconnect the sensor from chest belt and cradle. ⚫...

  • Page 17: Maintenance And Proper Disposal

    Besides charging the batteries, EcgMove 4 does not need any further maintenance. The battery capacity will decrease slowly with charging cycles and age. The battery can only be changed by movisens. Please contact us in the case when a replacement is necessary.

  • Page 18: Technical Data

    15 Technical Data Power supply Lithium-Polymer-Battery, 3,7V Number of charging cycles 300 (with 1 C / 1 C > 80%) Internal memory 4 GB Maximum recording capacity 2 weeks Battery run time ~ 3 days Recharging time ~ 1 hour Connectors USB 2.0 via Micro-USB, 5V, 500mA Size of sensor (W x H x D)
  • Page 19 Output rate: 8 Hz Temperature sensor: Output rate: 1 Hz Heart Rate, bpmBxB, NN-List, HRV Live Analysis Rmssd, HRV is valid, Movement Acceleration, Step count LED, 3-color Indicators Vibration alarm User Interfaces Marker (tapping) Wireless interface Bluetooth Smart (4.0) Java API for USB (Windows) Java Bluetooth Smart Gatt Library Wear locations Chest...

  • Page 20: Legal Notes

    herein.
