Movisens EdaMove 3 User Manual

Eda and physical activity sensor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EdaMove 3
EDA and Physical Activity Sensor
User Manual
Bedienungsaneitung

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EdaMove 3 and is the answer not in the manual?

Questions and answers

Related Manuals for Movisens EdaMove 3

Summary of Contents for Movisens EdaMove 3

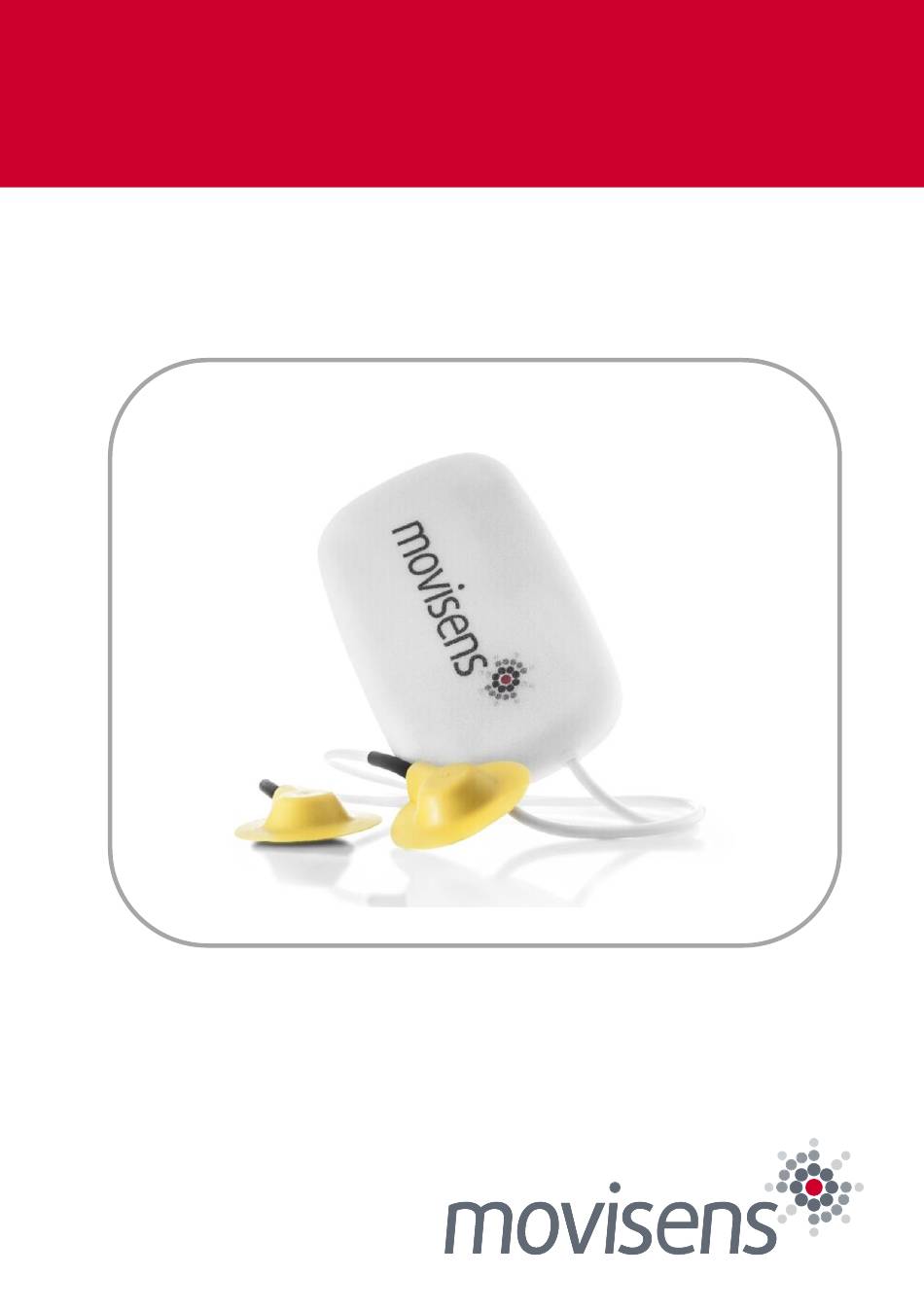

  • Page 1 EdaMove 3 EDA and Physical Activity Sensor User Manual Bedienungsaneitung...
  • Page 2 Imprint EdaMove 3 User Manual Version: 13.03.2018 The newest version of the User Manual can be found here: https://www.movisens.com/wp- content/downloads/EdaMove3_User_Manual.pdf Frequently asked questions: https://www.movisens.com/en/faq/ movisens GmbH Augartenstraße 1 76137 Karlsruhe Germany Phone: +49 721 381344-0 Fax: +49 721 381344-90...
  • Page 3 Internet: www.movisens.com E-Mail: support@movisens.com © Copyright: movisens GmbH...

  • Page 4: Table Of Contents

    Contents 1 Welcome! .......................1 2 Scope of Application .................3 3 Instructions of Use ..................7 4 Scope of Delivery and Accessories ............9 Scope of Delivery....................9 Accessories ......................10 Complementary Products ................11 Complete Measurement System..............12 5 Description of the Sensor ..............14 6 Software Installation ................
  • Page 5 8 Maintenance and Proper Disposal ............ 47 Maintenance ......................47 Cleaning Instructions ..................47 Cleaning the electrodes ..................47 Cleaning of Wrist Bands ................... 47 Proper Disposal ....................48 Troubleshooting ....................48 9 Technical Data ..................50 10 Legal Notes ....................53 10.1 Copyright ........................

  • Page 7: Welcome

    1 Welcome! Dear customer, Thank you for choosing the EDA (electrodermal activity) and physical activity sensor EdaMove 3 from movisens. This sensor provides researchers the latest technology for the mobile monitoring of psycho-physiological parameters in everyday life. Please read this manual completely and thoroughly before...

  • Page 9: Scope Of Application

    Other secondary parameters are also calculated from this raw data. The EdaMove 3 comes optimized for researchers. The EDA and physical activity sensor EdaMove 3 is not a medical device! The sensor acquires a single channel EDA signal using two Ag/AgCl electrodes.
  • Page 10 Physical activity and energy expenditure report  In addition to long term data recording and offline processing; the EdaMove 3 can transmit a live analysis of EDA data and physical activity parameters via Bluetooth Smart. When connected to the Sensor Trigger application, changes in these parameters can trigger questionnaires on the experience sampling platform movisensXS.
  • Page 11 1/10 Hz (whether the device is being charged)  State of charge 1/60 Hz (the current battery level)  These values are transmitted with 1 value per minute. Additional live parameters will be available soon. Tip: movisens can calculate other parameters from raw data upon request.

  • Page 13: Instructions Of Use

    Never connect the sensor to the charging cradle when the electrodes are attached to the test person. Never open the EdaMove 3. The battery of the EdaMove 3 may only be changed by the manufacturer. The EdaMove 3 is not waterproof. Don’t use the sensor in wet environments.

  • Page 15: Scope Of Delivery And Accessories

    Scope of Delivery The following component is included in delivery: Article Order No. EdaMove 3 EDA and Activity Sensor Raw data acquisition: EDA 32 Hz, 3D acceleration 64 Hz, Barometric Altitude 8 Hz Measurement duration: 5 days...

  • Page 16: Accessories

    Accessories The following accessories can be ordered optionally: Article Order No. Wrist Band Move 3 (S) Size: S 10129 Wrist Measurement: 13 to 16 cm Wrist Band Move 3 (M) Size: M 10130 Wrist Measurement: 15 to 18 cm Wrist Band Move 3 (L) Size: L 10131 Wrist Measurement: 17 to 23 cm...

  • Page 17: Complementary Products

    Complementary Products The following products can be used together with EdaMove 3: Article Order No. DataAnalyzer Base Single User Licence 20100 Basic Software with Algorithms for Physical Activity DataAnalyzer Module EnergyExpenditure Single User Licence, in combination with DataAnalyzer 20101 Base...

  • Page 18: Complete Measurement System

    Complete Measurement System Through a combination of the following components you can measure and analyze EDA and physical activity data: An EdaMove 3 sensor for the objective assessment and  recording of the electrodermal and physical activity...
  • Page 19 The experience sampling platform movisensXS (for  interactive ambulatory assessment) The SensorTrigger application allows the EdaMove 3 to  transmit various parameters to an Android smartphone. The application evaluates these parameters with predefined and configurable algorithms and triggers forms in movisensXS.

  • Page 20: Description Of The Sensor

    The measurable bandwidth for EDA signals in the literature is from 0 to 5Hz when a DC voltage is applied to the skin. The EdaMove 3 uses a sample rate of 32 Hz, to achieve an ideal tradeoff between exact determination of skin conductance reaction timing and preserving memory and battery.
  • Page 21 The EdaMove 3 utilizes a Bluetooth Smart interface to allow the sensor to connect with a gateway or a mobile phone for live applications. The Bluetooth Smart interface comes activated in the default configuration of the sensor. If this feature is not required, it can be deactivated by installing a different firmware.
  • Page 22 No LED active The sensor is inactive. Combinations of red and green blinking as well as red and blue blinking are possible with the appropriate combination of the above descriptions. EdaMove 3 will vibrate upon Bluetooth disconnection.

  • Page 23: Software Installation

    6 Software Installation System Requirements Before installing the software, please check that the following system requirements are fulfilled. PC with one of the following Versions of Microsoft  Windows: Windows 7, Windows 8, Windows 8.1, Windows 10 USB 2.0 or USB 3.0 interface ...

  • Page 24: Installing The Software

    “movisens_SensorManager_Setup.exe “ ✓ The Installation runs automatically in the background. After a successful installation, shortcuts are created in the Windows Start Menu under the entry “movisens SensorManager”. The following chapters detail how to use the software. Step 3: Double click the file “UnisensViewer_Setup_Full.exe“...
  • Page 25 ✓ The Installation runs automatically in the background. After a successful installation a shortcut “UnisensViewer” is created in the Windows Start Menu.

  • Page 26: Updating The Software

    DataAnalyzer User Manual. Updating the Software You need an internet connection to update the software. Select Windows Start Menu  movisens SensorManager  Updater If a new version is available, it will be downloaded and installed automatically after starting the updater software.

  • Page 27: Uninstalling The Software

    These firmware versions are available upon request from movisens. To install the new firmware, please start Windows Start Menu  movisens SensorManager  Firmware Updater You can now select the new firmware and start the update. Uninstalling the Software The software can be uninstalled using the Windows Control Panel.

  • Page 29: Handling

    7 Handling This chapter describes how to prepare a measurement and how to attach the sensor to a test person. Furthermore you get information on how to save, delete and analyze data from the sensor. A typical usage scenario for the assessment of data and offline analysis is shown in the following diagram.
  • Page 30 The different steps are described in further detail in the chapters indicated on the right of the diagram. If you want to use the sensor in combination with the experience sampling platform movisensXS, the different steps to use the sensor are shown in the following figure. Unlike the offline measurement, the measurement is initiated on your mobile device.
  • Page 31 To retrieve the data from the EdaMove 3, you have to read out the sensor after the measurement. The results of movisensXS only contain the sensor information that causes a trigger.

  • Page 32: Charging The Sensor

    Charging the Sensor Step 1: Connect the cradle with the USB cable to a USB port (USB port of your computer or another port that conforms to USB standard like a USB hub or USB charger). Attach the sensor with the help of the push buttons on the cradle. Please make sure that the 4 contacts are connected (marked red in the picture).
  • Page 33 If you want to recharge the sensor, you first have to remove the electrodes from the test person. If recharging while taking a measurement DO NOT to plug it into your PC as that will stop the measurement. Instead use a USB charger. When recharging the sensor you have to ensure that the battery is fully charged (until the sensor is blinking yellow).
  • Page 34 If the sensor is discharged completely (e.g. after a long period where it was not used), it can take up to several minutes until the sensor reacts and can be identified by the computer. You can check the battery status before the measurement with the sensor manager, see the following section.

  • Page 35: Preparing A Measurement

    Start the SensorManager by selecting Windows Startmenu  movisens SensorManager  SensorManager ✓ SensorManager is now searching for available sensors. Step 2: Connect EdaMove 3 with your PC using the cradle. ✓ The software will automatically detect the device and open the following window:...

  • Page 36: Starting A Measurement

    This application shows information about sensor hardware, sensor state and sensor configuration. Before you start a measurement please check the charging status of the battery. The maximum measurement duration can only be reached when the battery is fully charged. When connecting for the first time allow up to 30 seconds for the device to be detected as it installs the driver.
  • Page 37 Please supply the following information into the text fields: Measurement duration: The maximum measurement  duration of the EdaMove 3 is about 5 days without recharging the sensor. (see 0) Start time: You can start the measurement immediately  or delayed at a specific time. If you want to start your measurement delayed please specify date and time.

  • Page 38: Attaching The Sensor To The Test Person

    Step 4: Please follow the instructions and remove the sensor from the PC. ✓ The status LED will flash red once per second as soon as the measurement has started and data will be recorded. If a delayed start was configured the LED flashes red every two seconds until the measurement starts.
  • Page 39 Step 1: Clean the electrodes, making sure that there are no traces of old electrode gel and that the surfaces are free from grease. Step2: Connect the sensor to the wrist strap and lay the sensor on a flat surface in front of the test subject. Make sure that the electrode cables are lying towards the subjects elbow, not the fingers and ensure that they are separated on either side of the arm.
  • Page 40 around the hand. The slack of the cable should remain on the elbow side of the wrist strap against the forearm to minimize any discomfort for the test person. Tip: We recommend to use an electrode gel containing chloride salt (concentration <= 0.5 %) in a neutral base.

  • Page 41: Stopping A Measurement

    Sensor Movement Activity Body Energy location acceleration class position expenditure right, left (✓) ✓ ✓ wrist right, left ✓ ankle Stopping a Measurement The measurement will automatically be stopped, if the configured measurement duration has passed. A running measurement will also be stopped when: The sensor is connect to a PC ...

  • Page 42: Storing Measurement Data

    Windows Start menu  movisens SensorManager  SensorManager Step 2: Remove EdaMove 3 and the electrodes from the test person and connect it to the PC using the cradle. ✓ After the SensorManager has detected the connected sensor, the following windows will be shown:...
  • Page 43 Step 3: Click on „Save Data“. ✓ You will see the following window:...
  • Page 44 ID click the button after the text input field. If the measurement data shall be further processed with  the movisens DataAnalyzer the additional information about the person and the sensor location is mandatory. Step 5: Finally click on „Save data“...
  • Page 45 movementacceleration.bin is the result of the live analysis on the sensor, the other .bin files are the raw data of the other measurement parameters. If you select to store data in .csv format, the following files will be generated:...
  • Page 46 Tip: When storing data as .csv file, you have to take into account that the size of the data file doesn’t exceed the maximum size of the program you want to use (e.g. Microsoft Excel) ✓ The software confirms the end of data storing process. The following window is shown:...

  • Page 47: Viewing Measurement Data

    You can now directly show the stored data. The measurement will be opened in the UnisensViewer. If you have installed the DataAnalyzer you can directly start data analysis and generate reports by clicking on “Analyze data”. You can find more information in the DataAnalyzer User Manual.
  • Page 48 A first preprocessing of the data can be done with UnisensViewer. You can crop your signal to the desired time, set markers and annotate artefacts. Details can be found in the online help of UnisensViewer. Tip: Before changing the data of your study, be sure to have a copy of your raw data.

  • Page 50: Analyzing Data

    DataAnalyzer. This scientific software package allows the analysis of physiologic measurement data. Optimized for movisens sensors, the software can also utilise raw data acquired from sensors that also record raw data in the unisens format. DataAnalyzer calculates secondary parameters from your physiologic measurement data, creating summaries and reports in just a few clicks.
  • Page 51 data contained in your measurement. You can now select the desired analysis output. If you want to select more than one analysis output keep the Ctrl-key pressed while selecting. The results of the analysis are stored as a unisens data set. A unisens data set consists of a meta file (unisens.xml) and additional data files for each measurement signal and secondary parameter.

  • Page 53: Maintenance And Proper Disposal

    Please contact us in the case when a replacement is necessary. Cleaning Instructions If you want to clean EdaMove 3, please note the following: Disconnect the sensor from USB cable and wrist band.  Use a soft slightly moistened cloth.

  • Page 54: Proper Disposal

    Directly after washing, air -dry the bands before storing  or using it for new measurements. Proper Disposal EdaMove 3 is subject to the EU directive WEEE (Waste Electrical and Electronic Equipment). Please consider your local regulations for waste disposal. Troubleshooting You can find answers to the most common questions here: https://www.movisens.com/en/faq/...
  • Page 55 when it is reset. An error occurred. Reset sensor. If Flashing Red (3 the sensor doesn’t stop flashing, times per second) please contact the manufacturer.

  • Page 56: Technical Data

    9 Technical Data Power supply Lithium-Polymer-Battery Battery voltage 3,0 – 4,2 V Number of charging cycles 300 (with 1 C / 1 C > 80%) Internal Memory 4 GB Maximum recording capacity 4 weeks Battery run time (recording) ~ 5 days Recharging time 1 hour Size of sensor (W x H x D)
  • Page 57 Output rate: 1 Hz EDA SCL mean Temp mean Movement Acceleration Live analysis Step count charging State of charge LED, 3-color Indicators Vibration alarm Marker Interfaces Micro-USB, Bluetooth Smart (4.0) Java API for USB (Windows) Example for Bluetooth Smart (Android) Wear locations Wrist, Ankle Temperature:...

  • Page 59: Legal Notes

    The activity sensor EdaMove 3 is not a medical device and is not intended to be used for medical purposes. 10.3 Trademarks Windows and Windows XP are registered trademarks of Microsoft Corporation.
  • Page 60 GmbH Tel.: +49 721 381344-0 Fax: +49 721 381344-90 Augartenstraße 1 support@movisens.com 76137 Karlsruhe http://www.movisens.com Germany Bedienungsaneitung...
