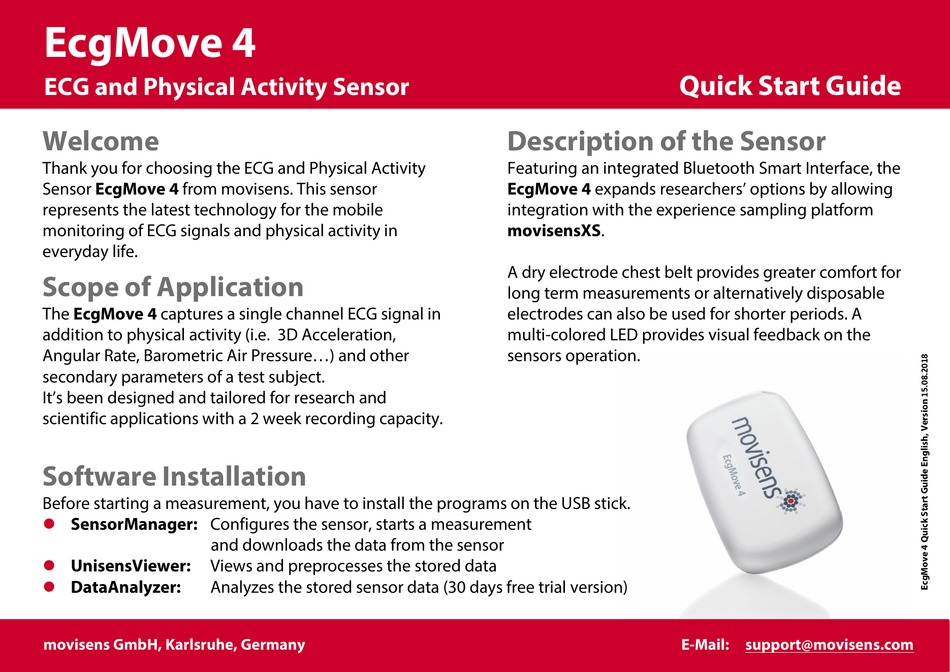

EcgMove 4
ECG and Physical Activity Sensor
Welcome
Thank you for choosing the ECG and Physical Activity
Sensor EcgMove 4 from movisens. This sensor
represents the latest technology for the mobile
monitoring of ECG signals and physical activity in
everyday life.
Scope of Application
The EcgMove 4 captures a single channel ECG signal in
addition to physical activity (i.e. 3D Acceleration,
Angular Rate, Barometric Air Pressure...) and other
secondary parameters of a test subject.
It's been designed and tailored for research and
scientific applications with a 2 week recording capacity.
Software Installation
Before starting a measurement, you have to install the programs on the USB stick.
SensorManager: Configures the sensor, starts a measurement

and downloads the data from the sensor
UnisensViewer:
Views and preprocesses the stored data

DataAnalyzer:
Analyzes the stored sensor data (30 days free trial version)

movisens GmbH, Karlsruhe, Germany
Quick Start Guide

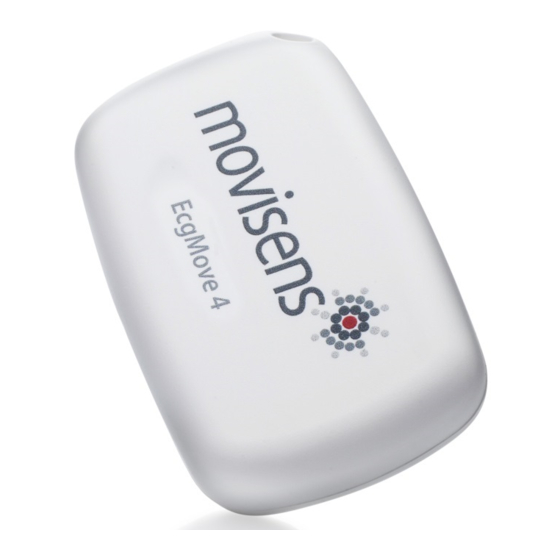

Description of the Sensor
Featuring an integrated Bluetooth Smart Interface, the
EcgMove 4 expands researchers' options by allowing
integration with the experience sampling platform
movisensXS.
A dry electrode chest belt provides greater comfort for
long term measurements or alternatively disposable
electrodes can also be used for shorter periods. A
multi-colored LED provides visual feedback on the
sensors operation.
E-Mail: support@movisens.com
