Pyle Mini Blue PFA330BT User Manual

Pyle Mini Blue PFA330BT User Manual

Wireless bt compact audio amplifier
Hide thumbs Also See for Mini Blue PFA330BT:

Advertisement

Quick Links

Features:
Compact and Powerful Mini Amp System
Built-in Wireless BT Audio Streaming
1/4'' Microphone Input Connector Jack
Aux (3.5mm) iPod/MP3 Input Connector Jack
RCA (L/R)Audio Input Connector Jacks
Four Push Type Speaker Terminals
Rotary Treble, Bass, Master Volume Adjustable Controls
Electronic Short, Overload & Overheat Protection
Audio Source Input Selection
Includes Power Adapter
Wireless BT Connectivity:
Instant Wireless BT Streaming Ability
Works with All of Today's Latest Devices
(Smartphone, Tablet, Laptop, Computer, etc.)
Wireless BT Version: 2.1
Wireless BT Range: 30'+ Feet
Technical Specs:
Max Power Output: 90 Watt Output
RMS Power Output: 45 Watt x 2 @ 4Ohm
Frequency Response: 20Hz-20kHz
Speaker Impedance: 4-8
Class-T Circuit Design
Rate Level Mic Input: 8mv/600
Tone Control (Bass): +/- 8dB
Tone Control (Treble): +/- 8dB
Signal to Noise Ratio: >80dB
Total Harmonic Distortion: <0.4%
Input Power: DC 9 ~ 14.4V, 2A
12V AC/DC Power Adapter
Dimensions (L x W x H): 6.0'' x 4.6'' x 1.6'' -inches

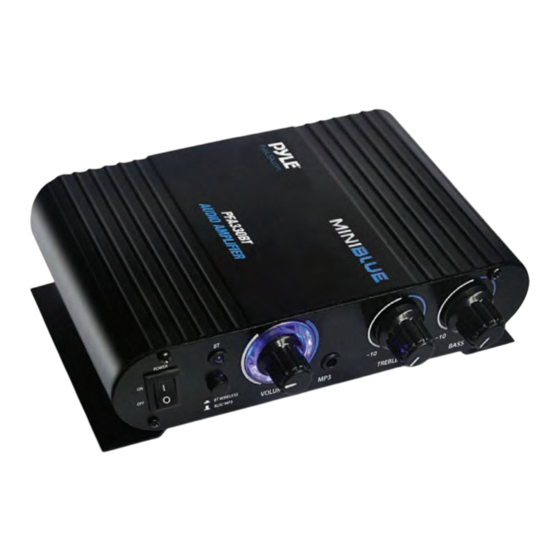

Wireless BT Mini Blue Compact Audio Amplifier
Aux (3.5mm) Input, Push-Type Speaker Terminals,
Includes Power Adapter, 90 Watt Amp
PFA330BT

Advertisement

loading
Need help?

Need help?

Do you have a question about the Mini Blue PFA330BT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pyle Mini Blue PFA330BT

  • Page 1 Features: • Compact and Powerful Mini Amp System • Built-in Wireless BT Audio Streaming • 1/4'' Microphone Input Connector Jack • Aux (3.5mm) iPod/MP3 Input Connector Jack • RCA (L/R)Audio Input Connector Jacks • Four Push Type Speaker Terminals • Rotary Treble, Bass, Master Volume Adjustable Controls •...
  • Page 2 4. Search for available Bluetooth devices and make sure to be within range of Plug it In your amp, and wait for your device to select "PYLE SPEAKER” on the pairing Connect your iPod/MP3 player to the 3.5mm input jack. This unit also devices lists of Wireless BT networks.
