Pyle PFA320BT User Manual

Customize Your Audio Experience
Tone/direct switching allows for customized listening via
separate bass and treble adjustments - or the original can
be passed through without enhancement.
Built-In Safety Features
Short cut, overload, and overheat protection keeps this amp,
as well as other connected devices, functioning properly and
safe. The built-in loudspeaker protection circuit triggers when
the amplifier is turned on to protect your speakers from high
volume bursts of audio. Overload protection shuts down the
amplifier if input voltage exceeds 14.4 volts.
Never Leave Home Without It
This Hi-Fi amp can be used in car, bus and boat microphone
systems. The compact size will allow you to install it right
under your seat or any other small compartments.
Extra Features
Bluetooth Music Streaming Ability
Works with Bluetooth Compatible Phones, MP3 Players,
Tablets, etc
12V AC/DC Adapter
Class-T Circuit Design
Microphone Input Jack
Ω
Speaker Impedance: 4-8
3.5mm iPod/MP3 Input Jack
Signal to Noise Ratio: >80dB
Total Output Power: 90 Watt
Input Power: DC 9 ~ 14.4V 2A
Total Harmonic Distortion: <0.4%
Frequency Response: 20Hz-20kHz
Short Cut, Overload & Overheat Protection
www. PyleAudio. com

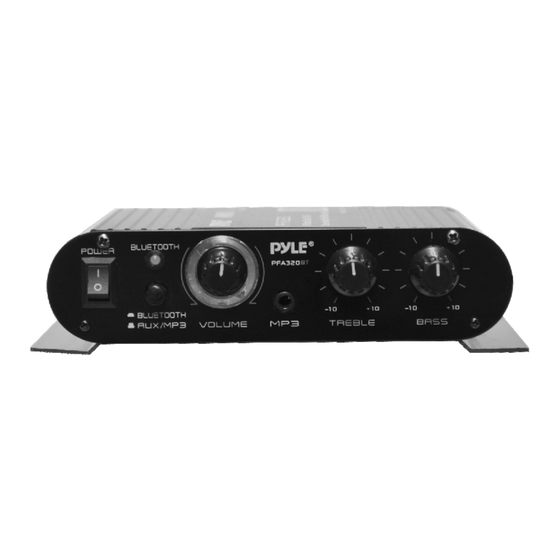

PFA320BT
90 Watts Class T Hi-Fi Stereo Amplifier
w/Bluetooth
The PFA320BT use a Class-T audio amplifier IC for low
distortion and acoustically accurate reproduction of music.
And Bluetooth wireless music streaming ability makes it
working with virtually any Bluetooth compatible devices
like iPhone, Android, Smartphones, Tablet, MP3 players,
TV, PC, etc.
The built-in loudspeaker protection circuit triggers when
the amplifier is burned on to protect speakers from high
volume bursts of audio.
Over-voltage protection circuit shuts down the amplifier
if input voltage exceeds 14.4V DC.
