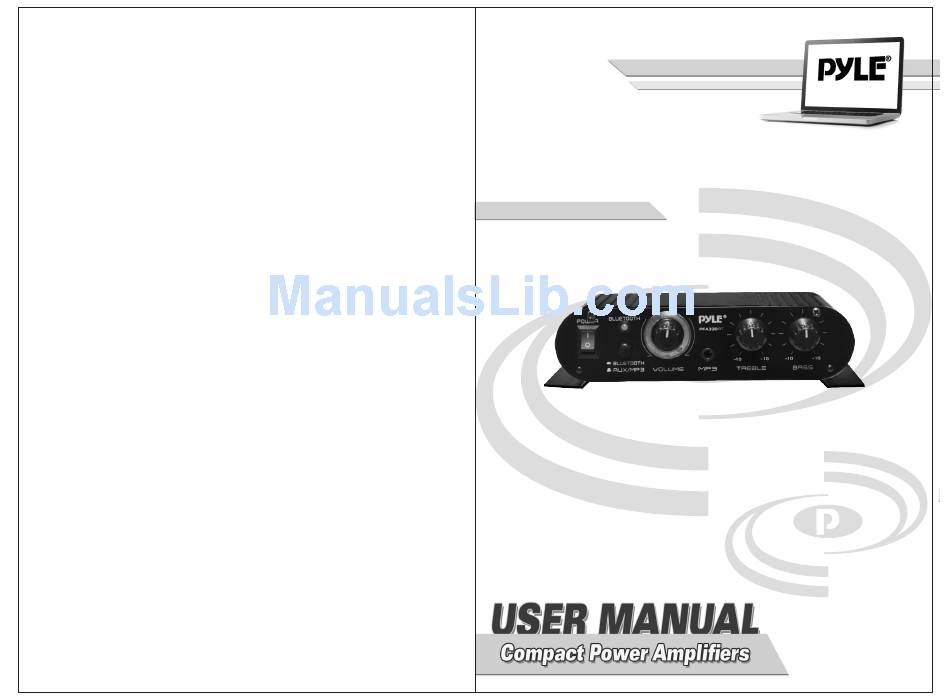

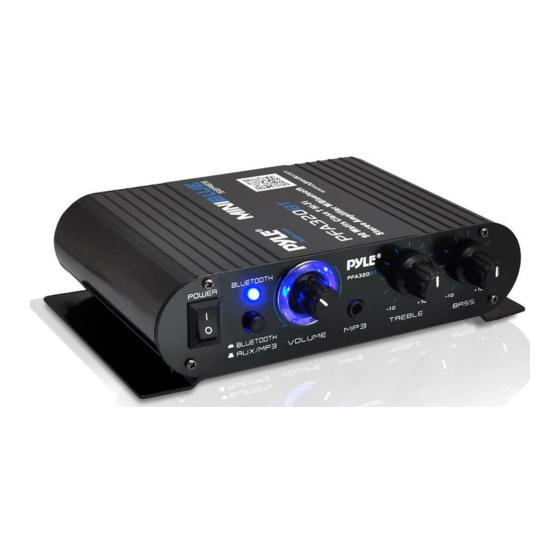

Pyle PFA330BT User Manual

The amplifier use a Class-T audio amplifier IC for low
distortion and acoustically accurate reproduction of music.
And Bluetooth wireless music streaming ability makes it
working with virtually any Bluetooth compatible devices
like iPhone, Android, Smartphones, Tablet, MP3 players,
TV, PC, etc.
Over-voltage protection circuit shuts down the amplifier
if input voltage exceeds 14.4V DC.
Features:
Compact and Powerful Mini Amp System
Built-in Bluetooth for Wireless Audio Streaming
Compatible with All Your Favorite Bluetooth Devices
(Works with iPhone, Android, Smartphone, iPad, Tablet, PC, etc.)
1/4'' Microphone Input Connector Jack
Aux (3.5mm) iPod/MP3 Input Connector Jack
RCA (L/R)Audio Input Connector Jacks
Four Push Type Speaker Terminals
Rotary Treble, Bass, Master Volume Adjustable Controls
Short Cut, Overload & Overheat Protection
Source Input Selection
Includes Power Adapter
Bluetooth Connectivity:
Instant Bluetooth Wireless Streaming Ability
Works with All of Your Favorite Devices
(iPhone, Android, Smartphone, iPad, Tablet, MP3 Player, etc.)
Bluetooth Version: 4.0
Bluetooth Wireless Range: 30'+ Feet
Technical Specs:
Max Power Output: 90 Watt Output
RMS Power Output: 45 Watt x 2 @ 4Ohm
Frequency Response: 20Hz-20kHz
Speaker Impedance: 4-8Ω
Class-T Circuit Design
Rate Level Mic Input: 8mv/600 Ω
Tone Control (Bass): +/- 8dB
Tone Control (Treble): +/- 8dB
Signal to Noise Ratio: >80dB
Total Harmonic Distortion: <0.4%
Input Power: DC 9 ~ 14.4V, 2A
12V AC/DC Adapter
Dimensions (L x W x H): 6.0'' x 4.6'' x 1.6''
PFA330BT
