Features:
•
Compact and Powerful Mini Amp System
•
Built-in BT for Wireless Audio Streaming
•
1/4'' Microphone Input Connector Jack
•
Aux (3.5mm) iPod/MP3 Input Connector Jack
•
RCA (L/R) Audio Input Connector Jacks
•
Four Push Type Speaker Terminals
•
Rotary Treble, Bass, Master Volume Adjustable Controls
•
Electronic Short, Overload & Overheat Protection
•
Audio Source Input Selection
•
Includes Power Adapter
Wireless BT Connectivity:
•
Built-in Wireless BT Audio Receiver
•
Simple Pairing for Wireless Music Streaming
•
Works with All of Today's Latest Wireless BT Devices
(Smartphones, Tablets, Laptops, computers, etc.)
•
Wireless BT Version: 5.0
•
Wireless BT Network Name: 'PYLEUSA'
•
Wireless Range: Up to 40' ft.
Technical Specs:
•
Max Power Output: 90 Watt Output
•
RMS Power Output: 10 Watt x 2 @ 4 Ohm
•
RMS Power Output: 10 Watt x 2 @ 8 Ohm
•
Max Power Output: 15 Watt x 2 @ 8 Ohm
•
Frequency Response: 20Hz-20 kHz
•
Speaker Impedance: 4-8
•
Class-T Circuit Design
•
Rate Level Mic Input: 8mv/600
•
Tone Control (Bass): +/- 8dB
•
Tone Control (Treble): +/- 8dB
•
Signal to Noise Ratio: >80dB
•
Total Harmonic Distortion: <0.4%
•
Input Power: DC 9 ~ 14.4V, 2A
•
12V AC/DC Power Adapter
•
Dimensions (L x W x H): 6.0'' x 4.6'' x 1.6'' -inches

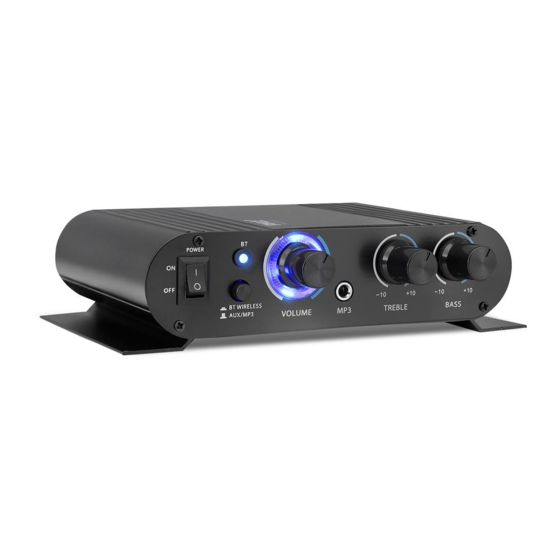

Wireless BT Mini Blue Compact Audio Amplifier
Aux (3.5mm) Input, Push-Type Speaker Terminals,
Includes Power Adapter, 90 Watt Amp
PFA330BT
Advertisement
Related Manuals for Pyle Mini Blue PFA330BT
Summary of Contents for Pyle Mini Blue PFA330BT
- Page 1 Features: • Compact and Powerful Mini Amp System • Built-in BT for Wireless Audio Streaming • 1/4'' Microphone Input Connector Jack • Aux (3.5mm) iPod/MP3 Input Connector Jack • RCA (L/R) Audio Input Connector Jacks • Four Push Type Speaker Terminals •...
- Page 2 4. Search for available Bluetooth devices and make sure to be within range of Plug it In your amp, and wait for your device to select "PYLE SPEAKER” on the pairing devices lists of Wireless BT networks. Connect your iPod/MP3 player to the 3.5mm input jack. This unit also 5.
Need help?
Do you have a question about the Mini Blue PFA330BT and is the answer not in the manual?
Questions and answers

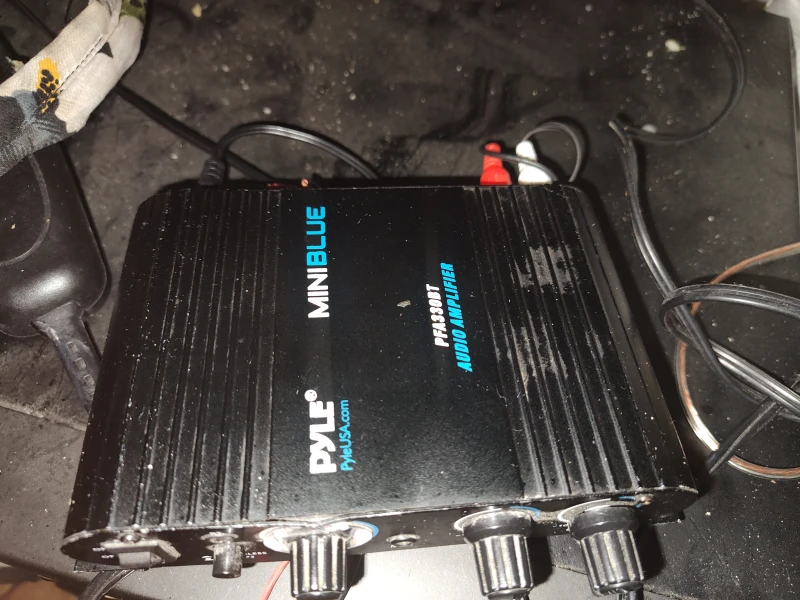

Will 30 watt speakers blow with the330bt
