Karaoke USA MET8021TFT User Manual

Mp3g karaoke player & bluetooth media with 7 ” tft screen
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

CDG / MP3G KARAOKE PLAYER & BLUETOOTH
MEDIA WITH 7 " TFT SCREEN
Model: MET8021TFT
User's Guide

PLEASE READ BEFORE OPERATING THIS EQUIPMENT



Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MET8021TFT and is the answer not in the manual?

Questions and answers

Related Manuals for Karaoke USA MET8021TFT

Summary of Contents for Karaoke USA MET8021TFT

  • Page 1   CDG / MP3G KARAOKE PLAYER & BLUETOOTH MEDIA WITH 7 ” TFT SCREEN Model: MET8021TFT User’s Guide    PLEASE READ BEFORE OPERATING THIS EQUIPMENT    ...
  • Page 2   FCC Warnings 2ANH7- 3938021BT FCC ID: Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

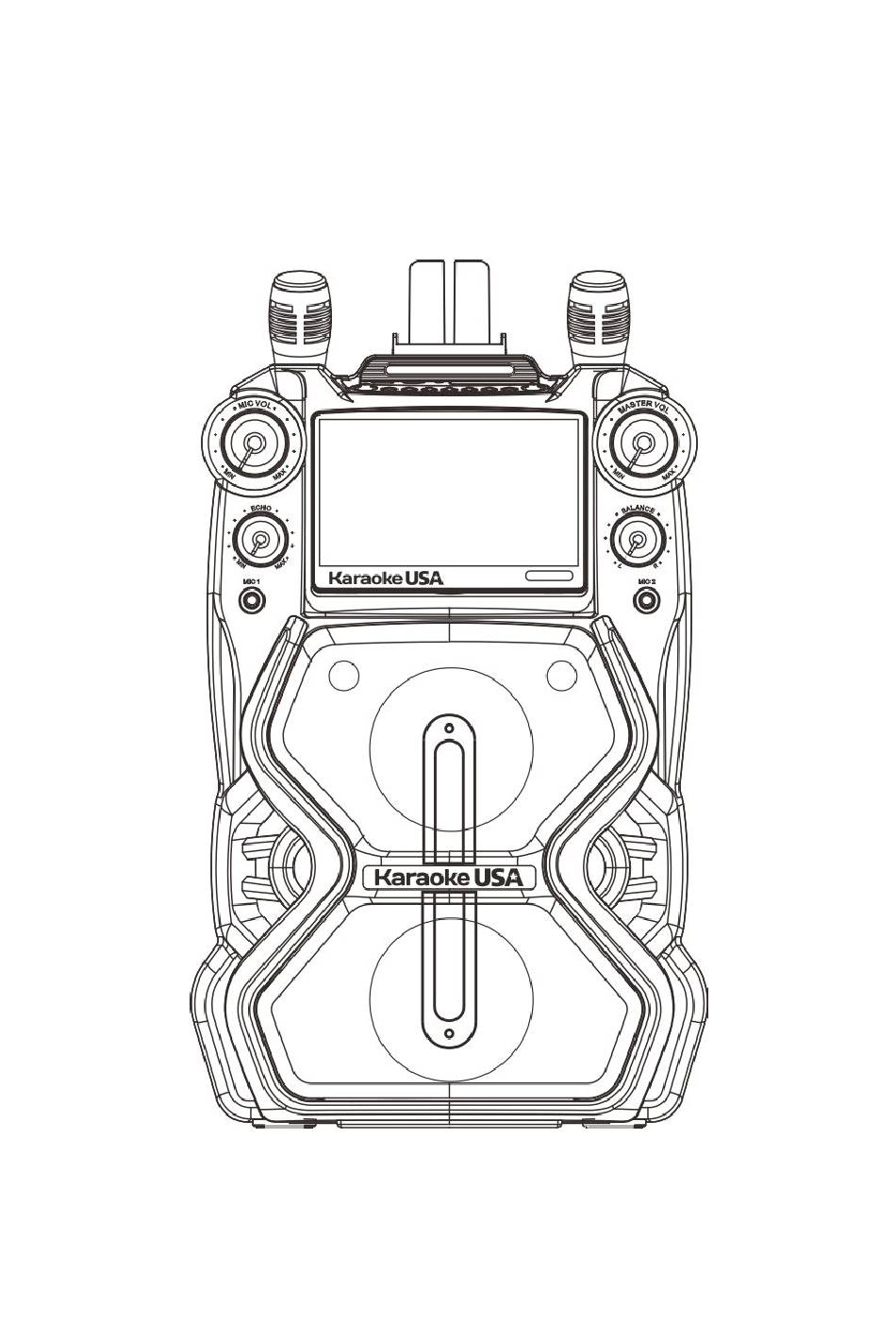

  • Page 3   MAIN UNIT LOCATION CONTROLS 1.1        ...
  • Page 4     MAIN UNIT LOCATION CONTROLS 1.2 CONTROLS: SCREEN Button SOURCE Button LIGHT Button KEY CHANGER (KEY- / PAGE- or KEY+/PAGE+) Button NORMAL Button CHARGING Indicator AUX IN Input USB Port For Play Back STANDBY Button 10. RECORD Button 11. RECORD PLAYBACK Button 12.
  • Page 5   REMOTE LOCATION CONTROLS Notes: 1. Press the MUTE button of remote to mute the audio sound, press again to resume. Other button of remote same as main unit function. 2. Remove spacer tab before using this unit for first time . 3.
  • Page 6   MONITOR MESSAGE CONNECT POWER ADAPTER Plug the included AC adapter into the standard AC power outlet to power the unit. Connect small end to DC INPUT jack of the KARAOKE MACHINE. After adapter connection, Slide the MAIN POWER switch to ON position and press STANDBY button to turn on unit.

  • Page 7: Charging Internal Battery

      CHARGING INTERNAL BATTERY The KARAOKE MACHINE operates on a built-in battery that can be recharged using included adapter. CHARGING THE BATTERY FOR FIRST TIME 1. Connect the including adapter for start charging the internal battery 2. Charge the built-in battery a minimum of 12 hours prior to first use.

  • Page 8: Charging Your Mobile

      CHARGING YOUR MOBILE Require an USB cable to connect USB port for battery charging. 1. Plug the standard end of the USB cable into the USB port located on the rear of the KARAOKE MACHINE. Plug the small end of the USB cable into the device you wish to charge.

  • Page 9: Install Cradle

      INSTALL CRADLE INSTALL CRADLE INTO THE UNIT Install the cradle (included ) to hold the Mobile & Tablet onto unit. PLACE MOBILE INTO CRADLE PLACE EXTERNAL DEVICE Insert Personal Player / Mobile Phone / Tablet with cradle onto the unit.  ...
  • Page 10   CONNECTING TO A TELEVISION / EXT. DEVICE AUX IN ( AUDIO IN / LINE IN ) To connect a MP3 Player or other Audio Device you will need a 3.5mm Auxiliary Cable. Connect a 3.5mm Auxiliary Cable to the AUX IN jack on front of unit and to the Audio Output or Phones on the audio device you wish to play.

  • Page 11: Loading A Disc

      LOADING A DISC 1. Turn on POWER follow previous page CONNECT POWER ADAPTER 2. Press the CD DOOR OPEN AREA to open the CD DOOR. 3. Place a DISC into the CD compartment. Close the CD DOOR. 5. Press the SOURCE button to select DISC mode. Notes: This unit is designed to play CDs bearing these identification logos.
  • Page 12   STALL US SB MEM ORY STI Turn on P POWER fol llow previo ous page C CONNECT POWER A ADAPTER Plug the USB mem mory stick t o USB inp put jack ( o on control panel of m main unit).

  • Page 13: Using Repeat / Program

      USING REPEAT / PROGRAM REPEAT FUNCTION When play music on USB / DISC mode of the KARAOKE MACHINE. 1. To repeat the current track: Press the REPEAT button until the icon will show on the display. The track will continue to play . 2.
  • Page 14   USING G BULET TOOTH nnecting B Bluetooth to o your Sma artphone I Tablet unit Press the e POWER b button to tur n on On your s smartphone e / Tablet, tu rn on Bluet ooth and en nable devic e scanning ET-8021...
  • Page 15   USING TH HE RECO ORDING This s unit can record the unit music c sound to USB from m DISC / BL LUETOOT X mode. Turn on P POWER fo ollow previo ous page I NSTASLL L USB MEM MORY STI Follow be elow step t...

  • Page 16: Specification

      SPECIFICATION Use included adapter AC Power Adapter AC Input : 120-240V , 50 / 60 Hz , Connect to DC Jack DC Output : 12V , 2500 mA Built-In battery 11.1V 2200 mAh DC 12V , 2500 mA DC Input Support 32GB memory USB Input Jack (Top View) For battery charging of external mobile...
