Karaoke USA MET8021BT User Manual

Karaoke system with bluetooth
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Karaoke
System with Bluetooth
MET8021BT
User's Guide



Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MET8021BT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Karaoke USA MET8021BT

Summary of Contents for Karaoke USA MET8021BT

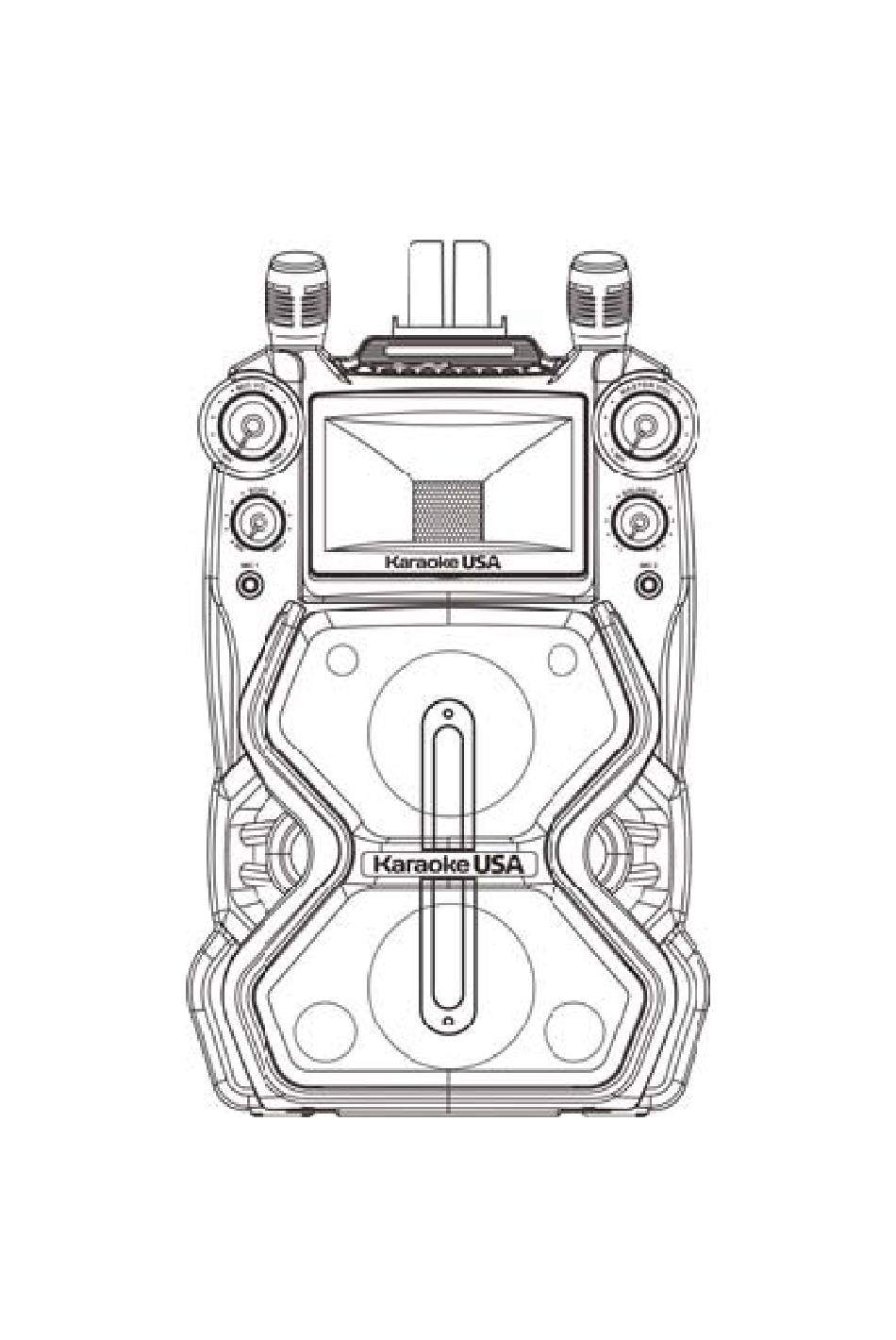

  • Page 1   Karaoke System with Bluetooth MET8021BT User’s Guide    ...
  • Page 2   FCC Warnings FCC ID: 2ANH7-MEF8021BT Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 3: Safety Instructions And Warnings

      SAFETY INSTRUCTIONS & WARNINGS This product utilizes a class 1 laser to read compact Discs. This laser compact Disc Player is equipped with safety switches to avoid exposure when the CD door is open and the safety interlocks are defeated. invisible laser radiation is present when the Player’s lid is open and the system’s interlock has failed or been defeated.

  • Page 4: Warning And Precaution

      WARNING AND PRECAUTION     1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 5     MAIN UNIT LOCATION CONTROLS 1.1                ...
  • Page 6     MAIN UNIT LOCATION CONTROLS 1.2 CONTROLS: 1. AUX input : Connect external device for Aux play back. 2. USB input : Connect to USB device for USB play back. 3. SOURCE button: Press to select SD CARD (Built-in) /BLUETOOTH / AUX IN / USB .

  • Page 7: Power & Charging

      POWER & CHARGING Connect Power Adapter Plug the included AC/DC power adapter into the standard wall outlet to power the unit. Connect small end to DC INPUT jack of your unit. After adapter connection, the CHARGE indicator on the control panel of unit will light red. When the battery is fully charged;...

  • Page 8: Using Microphone

      USING MICROPHONE Requires a microphone (included 1 microphone) . 1. Plug the microphone (see below figure) into the MIC 1 INPUT or MIC 2 INPUT. 2. Slide the ON /OFF switch of microphone. 3. Use the MIC VOL dial to adjust the volume of audio sound from the microphone.
  • Page 9   SETUP CRADLE PLACE EXTERNAL DEVICE Insert Personal Player / Mobile Phone / Tablet with cradle onto the unit. CHARGING YOUR MOBILE Require an USB cable (included) to connect USB CHARGE port for battery charging. 1. Plug the standard end of the USB cable into the USB CHARGE port located on the rear of the unit.
  • Page 10   DISCO LIGHT When unit turn on, the disco light will show on speaker panel. Press and hold the REPEAT/ LIGHT button to turn on or turn off the disco light show. USING AVC / ECHO / BALANCE ECHO  Turn on KARAOKE MACHINE and connect microphone. Adjust the ECHO knob of KARAOKE MACHINE to enhance your voice for a concert hall effect.

  • Page 11: Composite Video Output

      CONNECTING TO A TELEVISION / EXT. DEVICE CONTINUE COMPOSITE VIDEO OUTPUT  1. Require an RCA video cable and plug the included RCA audio/video cable into the VIDEO OUT and a composite video input on a television. 2. Adjust the television to the correct input setting. 3.

  • Page 12: Play And Pause

      USING USB PLAY BACK PLAY AND PAUSE 1. Follow the instructions for Loading a USB Memory Stick 2. Press the button to begin playing the loaded USB./SD. Rotate the MASTER VOLUME dial to select the sound level. 3. To temporarily stop playing, press the button once to Pause mode.
  • Page 13   USING BULETOOTH Connecting Bluetooth to your Smartphone / Tablet 1. Press SOURCE button to BLUETOOTH mode. The “bt” will flash on the LED display. 2. Press and hold the button to begin pairing. When pairing, remain within 3 feet of the unit. 3.

  • Page 14: Specification

      SPECIFICATION AC Power AC Input : 120-240V , 50 / 60 Hz , Adapter Connect DC Jack DC Output : 12V DC Input DC 12V USB Input Jack (Top View) Support 32GB memory USB Port (Rear View) For battery charging of external mobile USB Input Jack (Top View) Support 32GB memory Bluetooth...
