Summary of Contents for Karaoke USA GQ450

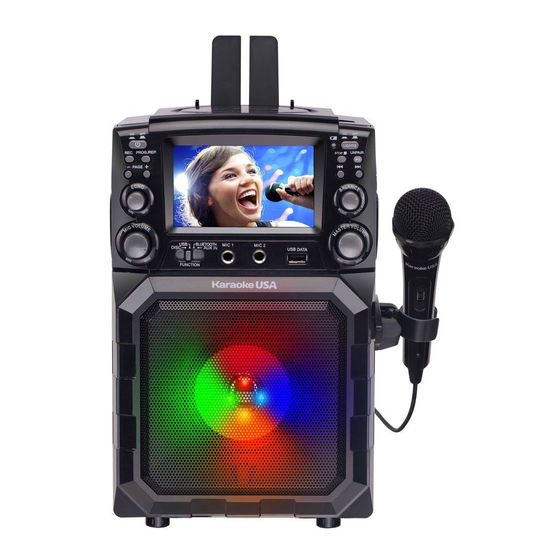

- Page 1 Portable CDG/MP3G Karaoke Player and PA System with 4.3" Color TFT Screen, Bluetooth, Recording Function and Built-In Battery English User’s Guide Español Français MODEL: GQ450 Smart Device not included Before operating this product, please read these instructions.
-
Page 3: Table Of Contents
Contents Warnings and Precautions..................01 Important Safety Instructions..................02 What’s in the Gift Box....................03 Features......................... 04 Main Control Functions..................05-06 Monitor / Screen Functions..................06 Setup Cradle......................07 Setup – Power......................08 USB Flash Drive Operation..................09 Bluetooth Operation....................09 Connect External Device Using Aux-in................10 Using CD+G, CDs.................... -
Page 4: Warnings And Precautions
Warnings and Precautions MOISTURE AND CONDENSATION WARNING: To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture. If the unit is exposed to moisture and extreme cold temperatures and moved to a warm CAUTION: Use of controls or adjustments or environment, condensation may form on the units performance of procedures other than those... -
Page 5: Important Safety Instructions
Important Safety Instructions 1. Read These Instructions: All way. If any damage occurs, consult 18. Replacement Parts and Safety with a trained technician for repair. safety and operations manual should Check: When replacement parts are be read before the product is required, be sure the service 11. -
Page 6: What's In The Gift Box
UNPAIR BLUETOOTH DISC AUX IN USB DATA FUNCTION AUX IN Cable x 1 GQ450 X 1 Microphone x 1 RCA Cable x 1 AC Adaptor x 1 Smart Device DC5V/2A Holder x 1 Por table CDG/MP3G Karaoke Player and PA System with 4.3"... -
Page 7: Features
Features LIGHTS REC. PROG./REP . STOP UNPAIR BLUETOOTH DISC AUX IN USB DATA FUNCTION ● 4.3" Color TFT Screen ● 40W Peak Power Output (3W RMS) ● CDG/MP3G Compatible ● Record Voice and Music mix ● Bluetooth Wireless Speaker & Wireless Connection ●... -
Page 8: Main Control Functions
Main Control Functions FRONT VIEW LIGHTS REC. PROG./REP . STOP UNPAIR BLUETOOTH DISC AUX IN USB DATA FUNCTION 1. DETACHABLE CRADLE 12. CD Door Open Area 2. CD Door 13. BATTERY Indicator 3. POWER ON/OFF Button 14. LIGHT ON/OFF Button 4. -
Page 9: Monitor / Screen Functions
Main Control Functions REAR VIEW AUX IN DC IN 22. AUX IN Input 24. AUDIO OUT Jack 23. VIDEO OUT Jack 25. DC Input (5V) Monitor / Screen Functions... -
Page 10: Setup Cradle
Setup Cradle Install Cradle into the unit Install the cradle (included ) to hold the Mobile & Tablet onto unit. Place External Device Insert Personal Player / Mobile Phone / Tablet with cradle onto the unit. LIGHTS REC. PROG./REP . STOP UNPAIR BLUETOOTH... -
Page 11: Setup - Power
Setup – Power Connect Power Adapter Connect the included AC adapter into the standard AC power outlet to power the KARAOKE MACHINE. Connect small end to DC INPUT jack of main unit. After adapter connection, Press the POWER button to turn on / off the Karaoke Machine. Built-in Rechargeable battery operation 1. -
Page 12: Usb Flash Drive Operation
2. On your smartphone / Tablet, turn on Bluetooth and enable device scanning. 3. When unit shows GQ450 on the Bluetooth scan, select it to connect it to your device. Notes: If cannot connect, press UNPAIRING button to reconnect again. -
Page 13: Connect External Device Using Aux-In
Connect External Device Using Aux-in AUX IN (LINE In / AUDIO In ) 1. Connect a 3.5 mm Auxiliary Cable to the AUX-IN jack on rear of unit and to your device's audio-out (headphone) jack. 2. Slide the FUNCTION selector of Karaoke Machine to AUX-IN position. 3. -
Page 14: Connecting To A Television With Av Output Jacks
Repeat Function 1. Follow the instructions for Loading a Disc and Playing a Disc. 2. Press the REP button once and indicator light on the screen. The unit will play the current track repeatedly. 3. Press the REP button twice and indicator light on the screen. -
Page 15: Recording Operation
Recording Operation This machine can record the music & sound while playing a CD or CD+G disc or Bluetooth when connected or an Aux Input. The recording will be an MP3 file. 1. Switch on Power (follow SETUP POWER page) 2. -
Page 16: Microphone
Microphone When either one or two Microphones are plugged into the MIC 1 jack / MIC 2 jack, their output is mixed with the playback from USB / Bluetooth Using mic volume Adjust corresponding MIC VOLUME knob for best balance between playback and microphone (singing) levels. -
Page 17: Echo / Balance Control
Echo / Balance Control Echo Adjust the ECHO dial of Karaoke Machine to enhance your voice for a concert hall effect. Balance Rotate the BALANCE dial of Karaoke Machine to hear the music and vocals or to hear the music only. Notes: To use the BALANCE dial, a CD+G disc must be used. -
Page 18: Troubleshooting
Troubleshooting Possible Problem Solution Symptom Power outlet Ensure all are connected firmly power adaptor No Power DC IN jack Ensure the switch is in "ON" General Power switch ON/ OFF mode position Unit in the wrong mode Select the correct mode Powered but not respond Turn off the unit then turn on... - Page 19 Troubleshooting Possible Problem Solution Symptom Ensure the AUX IN cable connect AUX IN cable not to the correct AUX IN input jack connected properly on the front No music Set the Function switch to Unit set in BLUETOOTH AUX IN mode mode Play AUX IN The volume setting too...
- Page 20 KARAOKE USA 1185 GOODEN CROSSING LARGO, FL 33778 USA TECH SUPPORT: WWW.KARAOKEUSA.COM/CS DOWNLOAD SONGS: WWW.SINGTHEHITS.COM SALES DEPARTMENT: SALES@KARAOKEUSA.COM Printed in China...
