Nice DS100 Instructions And Warnings For Installation And Use

Wireless keypad

Hide thumbs Also See for DS100:

DS100

Wireless Keypad

Instructions and warnings for installation and use

PUK CODE

Table of Contents

Need help?

Do you have a question about the DS100 and is the answer not in the manual?

Page 1 DS100 Wireless Keypad Instructions and warnings for installation and use PUK CODE...

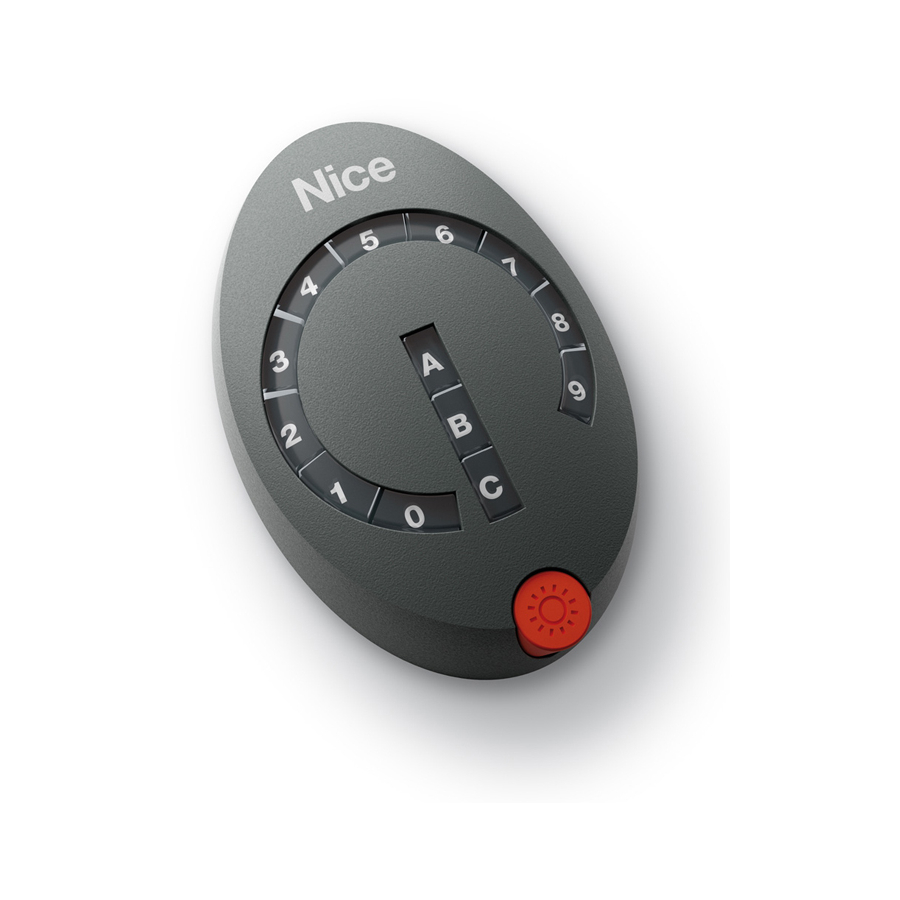

Page 2 The DS100 wireless keypad is a secure way to operate Mhouseplus automation. INSTALLATION Test the effective range of the keypad before fixing it. Place it on the wall where it's to be mounted and enter the new PIN. CAUTION: Position of the DS100 should be carefully considered.
Page 3 Also take into consideration that when the batteries are low the range can be reduced by 25÷30%. Once the test has been done, fix the DS100 at a suitable height: 1. Undo the retaining screw 2. Remove the base and screw it to the wall 3.
Page 4 A series of rapid beeps confirms the command was sent. The DS100 will beep each time a button is pressed. The DS100 cannot send a command until the PIN is set, after which the A B C buttons can be used to send a command as normal.
Page 5 PIN SET-UP The following steps describe how to reset the PIN on a new DS100. Any PIN change need the existing PIN as shown in Step 02. The PIN set at the factory is 1-1. PIN change process Example 01. Push orange button 02.
Page 6 Five rapid beeps indicate the PIN was unsuccessful Note: To use the DS100 without a PIN, follow the same process 'PIN change' process without entering any PIN (steps 04 and 06). If the PIN is forgotten it can be changed by entering the default “PUK code”...
