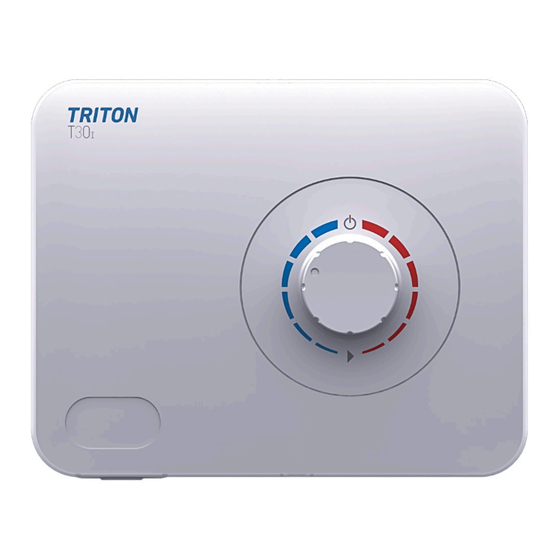

T30I INSTAFLOW
Han dw ash
REGISTER ONLINE
ENTER A PRIZE DRAW
WIN
£100
LOVE2SHOP VOUCHERS
VISIT OUR WEBSITE TODAY
TRITONSHOWERS.CO.UK/REGISTER
FOR YOUR SERVICE REFERENCE
NOTE DOWN THE PRODUCT CODE BELOW
(FROM THE FRONT OR TOP OF THE BOX)
ALTERNATIVELY REGISTER BY TEL: 024 7637 8321
INSTALLATION AND OPERATING INSTRUCTIONS
Please read this book thoroughly and familiarise yourself with all instructions before commencing
installation and keep it for future reference.
The handwash installation MUST be carried out by a suitably qualified person, in the sequence of
this instruction book.
IMPORTANT SAFETY ADVICE
The swivel arm supplied with this product is
a safety critical part of your shower. Failure to
use genuine Triton parts may cause injury and
invalidate your guarantee.
2181599A - February 2020
100mm arm available

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T30I INSTAFLOW and is the answer not in the manual?

Questions and answers

Related Manuals for Triton T30I INSTAFLOW

Summary of Contents for Triton T30I INSTAFLOW

  • Page 1 The swivel arm supplied with this product is (FROM THE FRONT OR TOP OF THE BOX) a safety critical part of your shower. Failure to use genuine Triton parts may cause injury and invalidate your guarantee. ALTERNATIVELY REGISTER BY TEL: 024 7637 8321...
  • Page 2 INTRODUCTION - PLEASE READ PLEASE READ THIS IMPORTANT SAFETY INFORMATION Products manufactured by Triton are safe and without risk provided they are installed, used and maintained in good working order in accordance with our instructions and recommendations. ARNING: DO NOT operate handwash if frozen, or suspected of being frozen.
  • Page 3 2.2 The supply pipe must be ushed to clear debris deterioration due to age and usage. before connecting to the handwash unit. To check the product suitability for commercial and multiple installations, please contact Triton’s specification advisory service before installation. Please see back of book for contact information.

  • Page 4: Important Safety Information & General Guidance Notes (Please Read) General Advice To Users Specification And Advice To Users

    INTRODUCTION ADVICE TO USERS This book contains all the necessary fitting The following information will help you and operation instructions for your Triton T30I understand how the handwash product Instaflow handwash. Please read carefully. operates. The installation must be carried out by a...

  • Page 5: Table Of Contents

    CONTENTS Page INTRODUCTION IMPORTANT SAFETY INFORMATION & GENERAL GUIDANCE NOTES (please read) GENERAL ADVICE TO USERS Specification and advice to users................4 Key to main components and entry points ............... 6 Electrical requirements ....................7 Water requirements ....................8 Siting of the unit ...................... 8 Fitting the unit to the wall ..................

  • Page 6: Key To Main Components And Entry Points

    MAIN COMPONENTS NOTE: Not all wiring is shown for reasons of clarity Inside Unit 1. Terminal block 2. Cable clamp top Entry Points Key: 3. Cable clamp bottom 4. Mircoswitch 5. Stabiliser valve 6. Pressure Relief Device (PRD) Water Entry Point 7.

  • Page 7: Electrical Requirements

    ELECTRICAL REQUIREMENTS Table A CIRCUIT PROTECTION WARNING! THIS APPLIANCE MUST BE EARTHED unit cartridge rating fuse The installation, supply cable and circuit 3.0kW – protection must conform with BS7671 (IEE wiring regulations) and be sufficient for the Table B amperage required. The following notes are for guidance only: Twin and earth PVC insulated cable The unit must only be connected to a...

  • Page 8: Water Requirements

    If it is intended to operate the unit at pressures supplies to the unit at the isolating switch and above the maximum or below the minimum stop valve. stated, contact Triton Customer Experience for Contact Triton Customer Experience for advice advice. on replacing the PRD.

  • Page 9: Fitting The Unit To The Wall

    FITTING THE UNIT TO THE WALL Pipe trims WARNING CHECK THERE ARE NO HIDDEN CABLES OR PIPES BEFORE DRILLING HOLES FOR WALL PLUGS. USE GREAT CARE WHEN USING POWER TOOLS NEAR WATER. THE USE OF A RESIDUAL CURRENT DEVICE (RCD) IS RECOMMENDED WHEN USING POWER TOOLS.

  • Page 10: Plumbing Connections

    PLUMBING CONNECTIONS Plumbing to be carried out before wiring. Filter DO NOT use jointing compounds on any pipe fittings for the installation. DO NOT use soldered fittings near the unit as heat can transfer along the pipework and can damage components. NOTE: An additional isolating valve (complying Pipe with Water Regulations/Bylaws) MUST be fitted...

  • Page 11: Electrical Connections

    ELECTRICAL CONNECTIONS SWITCH OFF THE ELECTRICITY SUPPLY 1. Terminal block 2. Thermal cut-out AT THE MAINS. 3. Microswitch Fig.8 shows a schematic wiring diagram 4. Element The cable can be surface clipped, hidden or via 20mm conduit. For this handwash unit the minimum cable size will be 1.5mm².

  • Page 12: Fitting The Swivel Arm And Cover

    FITTING SWIVEL ARM Insert the washer into the swivel arm and screw onto the outlet pipe connection (fig.11). FITTING THE COVER To ensure that the temperature control is correctly positioned on the stabiliser valve, temporarily place the cover in position so that the splines engage.

  • Page 13: Commissioning

    COMMISSIONING WARNING BEFORE NORMAL OPERATION OF THE HANDWASH, IT IS ESSENTIAL THE FOLLOWING COMMISSIONING PROCEDURE IS COMPLETED CORRECTLY. Sprayhead assembly The first operation of the unit is intended to flush out any unit debris and to ensure the heater unit contains water before the elements are switched on.

  • Page 14: Operating The Handwash

    OPERATING THE HANDWASH To start the handwash unit Turn the temperature control anti-clockwise and the water will begin to flow. The flow of water is controlled by the combined start/stop temperature control. To obtain warm water turn the control slowly anti-clockwise to the mid position (fig.16).

  • Page 15: Cleaning

    IMPORTANT: After any servicing of the mains water supply, always make sure the unit is run with no power supplied to it - see Commissioning section for details. CLEANING THE SPRAYHEAD IMPORTANT: Before cleaning, turn off the unit at the isolation switch to avoid the handwash Sprayplate being accidentally switched on.

  • Page 16: Flow Rates And Temperatures

    FLOW RATES & WATER TEMPERATURES The temperature of the water coming flowing from the unit depends on: • The temperature of the mains water supply • The water flow rate through the unit • The power level of the unit •...

  • Page 17: Fault Finding

    4.3.1 Reduce the flow rate. water temperature. 4.4.1 Have unit checked by suitably qualified 4.4 Electrical elec trician or contact Triton Customer Experience. malfunction. 4.5.1 Blown fuse or circuit breaker. Check supply. 4.5 Interrupted power Renew or reset fuse or circuit breaker. If it fails supply.
  • Page 18 FAULT FINDING Problem Cause Action 5 Unit varies from 5.1 Water pressure has 5.1.1 Wait until the water pressure resumes to normal temperature dropped below minimum normal. to cold during use. required 6 Pressure relief 6.1 Blocked sprayhead. 6.1.1 Clean or replace sprayhead and then fit device has operated new PRD.

  • Page 19: Spare Parts

    Please have your model name available. WEEE Directive – Policy Statement As a producer and a supplier of electric showers, Triton Showers is committed to the protection of the environment via our own environmental policy and compliance with the WEEE directive.
  • Page 20 Trade Installer Hotline: 024 7637 8344 Nuneaton www.tritonshowers.co.uk Warwickshire, CV11 4NR E-mail: serviceenquiries@tritonshowers.co.uk Triton is a division of Norcros Group (Holdings) Limited E-mail: technical@tritonshowers.co.uk Triton reserve the right to change product specifi cation without prior notice. E&OE. © TRITON SHOWERS 2020...
