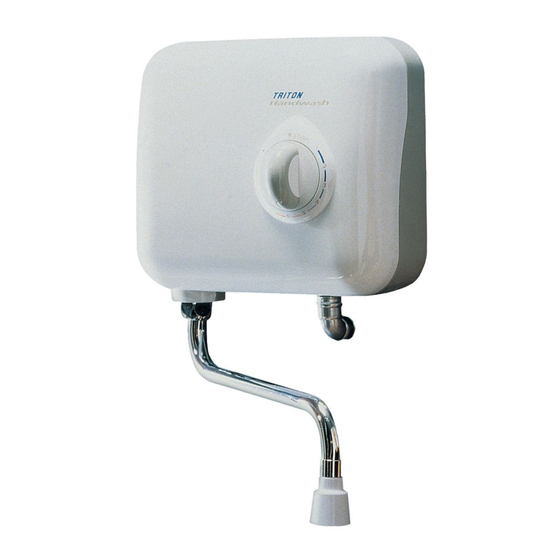

T30i
electric
handwash
Installation and
operating
instructions
I
nstallers please note these InstructIons are to be left wIth the user
2180153N
January 2006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T30i and is the answer not in the manual?

Questions and answers

Summary of Contents for Triton T30i

  • Page 1 T30i electric handwash Installation and operating instructions nstallers please note these InstructIons are to be left wIth the user 2180153N January 2006...
  • Page 2: Table Of Contents

    Fault finding 18 – 19 Guarantee, service policy, etc. rear cover To check the product suitability for commercial and multiple installations, please contact Triton’s specification advisory service before installation. Telephone: 0870 067 3767 Facsimile: 0870 067 3334 E mail: technical@tritonshowers.co.uk...
  • Page 3: Important Safety Information

    Products manufactured by Triton are safe and without risk provided they are installed, used and maintained in good working order in accordance with our instructions and recommendations. WARNING: Do not operate unit if it is frozen, or suspected of being frozen. It must thaw out before using.
  • Page 4: Introduction

    The following points will help you understand and operating instructions for your Triton how the handwash operates: T30i electric handwash unit. Please read them a. The electric heating elements operate carefully. at a constant rate. It is the flow rate of the...
  • Page 5: Key To Main Components

    T30i KEY TO MAIN COMPONENTS 38 mm Fig. NOTE: Not all wiring shown for reasons of clarity 56 mm 200 mm Inside unit – fig.1 Pack contents 1. Top cable entry Handwash unit 2. bottom cable entry 200mm swivel arm 3. Rear cable entry Fixing screws and plugs 4.
  • Page 6: Electrical Requirements

    Check your consumer unit (main fuse box) has a main switch rating of 80A or above Shepperton Park, and that it has a spare fuse way which will Triton Road, Nuneaton, take the fuse or mCb necessary for the Warwickshire, CV11 4NR handwash (fig.).
  • Page 7 T30i at least 4mm² cross sectional area. These using the handwash. parts include metal baths, radiators, water 7.5 Preferably it should be outside the pipes, taps and waste fittings. handwash area and be readily accessible in For close circuit protection DO NOT use a order to switch off after using the unit.
  • Page 8: Water Requirements

    T30i WATER REqUIREMENTS Mains electric supply (via double pole switch) The installation must be in accordance with Water Regulations and bylaws. To guarantee activation of the heating elements, Double the unit must be connected to a mains water pole isolating supply with a minimum running pressure of switch 100kPa (1.0 bar) at a minimum flow rate of...
  • Page 9: Siting Of The Unit

    T30i SITING Of THE UNIT WARNING! ImpoRTANT: For ease of servicing, the unit The unit musT NoT be positioned must always be mounted on the surface of where it will be subjected to freezing tiled walls. never tile up to the unit. conditions.
  • Page 10: Fitting The Unit To The Wall

    T30i fITTING THE UNIT TO THE WAll Fig. WARNING! check there are no hidden cables or pipes before drilling holes for wall plugs. use great care when using power tools near water. The use of a residual current device (Rcd) is recommended. Procedure Unscrew the top and bottom retaining screws (fig.) and lift the cover from the backplate.
  • Page 11 T30i DO NOT fully tighten the screws at this stage, as the fixing holes are elongated to allow for out of square adjustment after the plumbing connections have been completed. ImpoRTANT: Using a suitable sealant, always seal around the incoming pipework to...
  • Page 12: Plumbing Connections

    DO NOT use jointing compounds on any pipe and must not be connected to any tap fittings for the installation. or fitting not recommended by Triton DO NOT use soldered fittings near the unit as plc. heat can transfer along the pipework and can damage components.
  • Page 13: Electrical Connections

    T30i T30 3kW ElECTRICAl CONNECTIONS 1. Terminal block sWITch oFF The elecTRIcITy supply AT 2. Thermal cut-out The mAINs. 3. microswitch 4. Element Fig. shows the 3kW unit and 7kW unit schematic wiring diagrams. The cable can be surface clipped, hidden or via 20mm conduit.
  • Page 14: Replacing The Cover

    T30i REPlACING THE COVER Fig.0 To ensure that the temperature control is Position for top entry cable clamp correctly positioned on the stabiliser valve, temporarily place the cover in position so that the splines engage and rotate the temperature Terminal control fully clockwise.
  • Page 15: Commissioning

    T30i COMMISSIONING Fig. WARNING! before normal operation of the handwash, it is essential the following commissioning procedure is completed correctly. The first operation of the unit is intended to flush out any unit debris, and to ensure the heater unit contains water before the elements are switched on.
  • Page 16: Operating The Unit

    T30i OPERATING THE UNIT Fig. WARNING! before normal operation of the handwash, it is essential that the commissioning procedure has been completed correctly. To start the handwash unit Turn the temperature control anti-clockwise and the water will begin to flow. The flow of water is controlled by the combined start/stop temperature control.
  • Page 17: Operating Functions

    T30i OPERATING fUNCTIONS WARNING! low water pressure cut-out After any servicing of the mains water If the water pressure falls below the minimum supply, always make sure the unit is required for correct operation of the unit, power started on cold in order to purge any will be switched off to the heating elements air in the pipework.
  • Page 18: Cleaning

    The sprayhead is a critical part of the unit and has been designed to give the maximum Fig. performance. ImpoRTANT: triton sprayheads onLy to be used with this product. In order to maintain the performance from the handwash, the spray rings should be cleaned at...
  • Page 19: Spare Parts

    T30i SPARE PARTS Ref. Description Part No. 1. Cover assembly 81200120 2. Heater can assembly 84500010 84500020 3. Stabilising valve assembly 82600730 82600720 4. Thermal cut-out 22010010 5. Terminal block & wires 82200110 6. Cable clamp 7050253 7. Pressure Relief Device (PRD) 83301330 8.
  • Page 20: Fault Finding

    4.4 Electrical 4.4.1 Have unit checked by suitably qualified malfunction. electrician or contact Triton Customer Service. 4.5 Interrupted power 4.5.1 blown fuse or circuit breaker. Check supply. supply. Renew or reset fuse or circuit breaker. If it fails again, consult a qualified electrician.
  • Page 21: Fault Finding

    T30i fAUlT fINDING Problem/Symptom Cause Action/Cure 5 Unit varies from 5.1 Water pressure has 5.1.1 Wait until the water pressure resumes to normal temperature dropped below minimum normal. to cold during use. required 6 Pressure relief 6.1 blocked sprayhead. 6.1.1 Clean or replace blocked spray rings in device has operated the sprayhead and then fit new PRD.
  • Page 22 T30i...
  • Page 23 T30i...
  • Page 24 Triton is a division of Norcros Group (Holdings) Limited e mail: technical@tritonshowers.co.uk Extended Warranty AVAILABLE NOW. Call 0870 067 3333 for more details. TRITON reserve the right to change product specification without prior notice. E&OA. © TRITON SHOWERS 2008...
