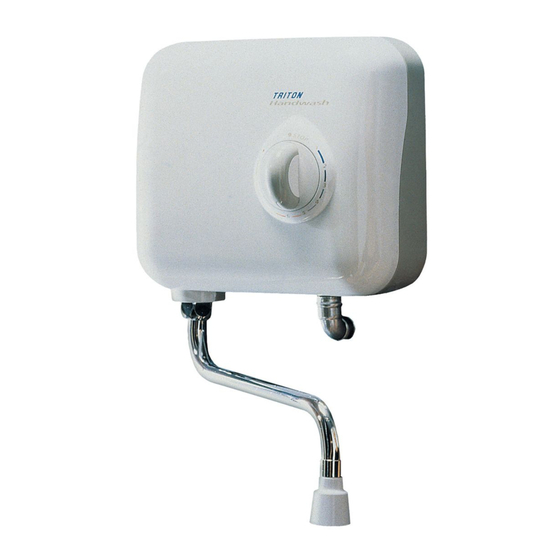

Triton T30i Installation And Operating Instructions Manual
Electric handwash
Hide thumbs
Also See for T30i:
- Installation and operating instructions manual (24 pages) ,
- Installation and operating instructions manual (20 pages) ,
- Installation and operating instructions manual (20 pages)
Related Manuals for Triton T30i
Summary of Contents for Triton T30i
- Page 1 T30i electric handwash Installation and operating instructions nstallers please note these InstructIons are to be left wIth the user 2180153P February 2010...
-
Page 2: Table Of Contents
Cleaning ..............16 Spare parts ............. 17 Fault finding ............18 – 19 Guarantee, service policy, etc......rear cover To check the product suitability for commercial and multiple installations, please contact Triton’s specification advisory service before installation. Telephone: 0844 980 0730... -
Page 3: Important Safety Information
T30i PLEASE READ THIS IMPORTANT SAFETY INFORMATION Products manufactured by Triton are safe and without risk provided they are installed, used and maintained in good working order in accordance with our instructions and recommendations. WARNING: DO NOT operate the handwash if frozen, or suspected of being frozen. It must ... -
Page 4: Introduction
The following points will help you understand and operating instructions for your Triton how the handwash operates: T30i electric handwash unit. Please read them a. The electric heating elements operate at carefully. a constant rate. It is the flow rate of the... -
Page 5: Key To Main Components
T30i KEY TO MAIN COMPONENTS Fig. 38 mm NOTE: Not all wiring shown for reasons of clarity 56 mm 200 mm Pack contents Inside unit – fig.1 Handwash unit 1. Top cable entry 200mm swivel arm 2. Bottom cable entry Instructions, guarantee, etc. 3. Rear cable entry 4. -
Page 6: Electrical Requirements
Shepperton Park, The following notes are for guidance only: Triton Road, Nuneaton, Warwickshire, CV11 4NR The unit must only be connected to a 230 - 240V ac supply. 1.1 The electrical rating of the unit is shown on the rating label (fig.) within the unit. - Page 7 T30i 6.2 The switch must be accessible and clearly Table A identifiable, but out of reach of a person using the unit. cIRcuIT pRoTecTIoN Where shower cubicles are located in any unit cartridge rooms other than bathrooms, all socket rating fuse outlets in those rooms must be protected 3.0kW...
-
Page 8: Water Requirements
T30i WATER REqUIREMENTS Mains electric supply (via double pole switch) The installation must be in accordance with Water Regulations and Bylaws. To guarantee activation of the heating elements, Double the unit must be connected to a mains water pole isolating supply with a minimum running pressure of switch 100kPa (1.0 bar) at a minimum flow rate of... -
Page 9: Siting Of The Unit
T30i WARNING! ImpoRTANT! This product musT oNly The unit musT NoT be positioned be connected to cold water where it will be subjected to freezing mains pipework. conditions. SITING Of THE UNIT ImpoRTANT: the unit must be mounted ImpoRTANT: For ease of servicing, the unit on a flat surface which covers the full width must always be mounted on the surface of and length of the backplate. It is important tiled walls. never tile up to the unit. -
Page 10: Fitting The Unit To The Wall
T30i fITTING THE UNIT TO THE WAll Fig. WARNING! check there are no hidden cables or pipes before drilling holes for wall plugs. use great care when using power tools near water. The use of a residual current device (Rcd) is recommended. Procedure Unscrew the top and bottom retaining screws (fig.) and lift the cover from the backplate. - Page 11 T30i Position the unit vertically and using the Fig. backplate as a template, mark the two fixing holes (fig.). Drill and plug the wall. (An appropriate drill bit should be used. If the wall is brick, plasterboard or a soft building block, appropriate wall plugs and screws should be fitted).
-
Page 12: Plumbing Connections
NoT use jointing compounds on any pipe and must not be connected to any tap fittings for the installation. or fitting not recommended by Triton do NoT use soldered fittings near the unit as heat can transfer along the pipework and can damage components. -
Page 13: Electrical Connections
T30i T30 3kW ElECTRICAl CONNECTIONS 1. Terminal block sWITch oFF The elecTRIcITy supply 2. Thermal cut-out AT The mAINs. 3. Microswitch 4. Element Fig. shows the 3kW unit and 7kW unit schematic wiring diagrams. The cable can be surface clipped, hidden or via 20mm conduit. -
Page 14: Replacing The Cover
T30i REPlACING THE COVER To ensure that the temperature control is correctly positioned on the stabiliser valve, temporarily place the cover in position so that Terminal the splines engage and rotate the temperature block control fully clockwise. Remove the cover and position the temperature... -
Page 15: Commissioning
T30i COMMISSIONING Fig. WARNING! before normal operation of the handwash, it is essential the following commissioning procedure is completed correctly. The first operation of the unit is intended to flush out any unit debris, and to ensure the heater unit contains water before the elements are switched on. -
Page 16: Operating The Unit
T30i OPERATING THE UNIT Fig. WARNING! before normal operation of the handwash, it is essential that the commissioning procedure has been completed correctly. To start the handwash unit Turn the temperature control anti-clockwise and the water will begin to flow. The flow of water is controlled by the combined start/stop temperature control. -
Page 17: Operating Functions
T30i OPERATING fUNCTIONS WARNING! low water pressure cut-out After any servicing of the mains water If the water pressure falls below the minimum supply, always make sure the unit is required for correct operation of the unit, power run with no power supplied to it. -
Page 18: Cleaning
T30i ClEANING WARNING! Before cleaning, turn off the unit at the isolation do NoT use ‘powerful’ abrasive or switch to avoid the handwash being accidentally solvent cleaning fluids when cleaning switched on. the shower as they may damage the Cleaning the sprayhead and rings plastic fittings. -
Page 19: Spare Parts
T30i SPARE PARTS Ref. Description Part No. 1. Cover assembly ....... 81200120 2. Heater can assembly 3kW ......84500010 7kW ......84500020 3. Stabilising valve assembly 3kW ......82600730 7kW ......82600720 4. Thermal cut-out ...... 22010010 5. Terminal block & wires ... 82200110 6. -
Page 20: Fault Finding
4.4 Electrical 4.4.1 Have unit checked by suitably qualified malfunction. electrician or contact Triton Customer Service. 4.5 Interrupted power 4.5.1 Blown fuse or circuit breaker. Check supply. supply. Renew or reset fuse or circuit breaker. If it fails again, consult a qualified electrician. -
Page 21: Fault Finding
T30i fAUlT fINDING Problem/Symptom Cause Action/Cure 5 Unit varies from 5.1 Water pressure has 5.1.1 Wait until the water pressure resumes to normal temperature dropped below minimum normal. to cold during use. required 6 Pressure relief 6.1 Blocked sprayhead. 6.1.1 Clean or replace blocked spray rings in device has operated the sprayhead and then fit new PRD. - Page 22 T30i...
- Page 23 T30i...
- Page 24 Triton is a division of Norcros Group (Holdings) Limited E-mail: serviceenquiries@tritonshowers.co.uk Extended Warranty AVAILABLE NOW. Call 0844 980 0740 for more details. 4-1-2010 TRITON reserve the right to change product specification without prior notice. E&OA. © TRITON SHOWERS 2010...
- Page 25 Pdf Supplied By http://www.plumbworld.co.uk/...
