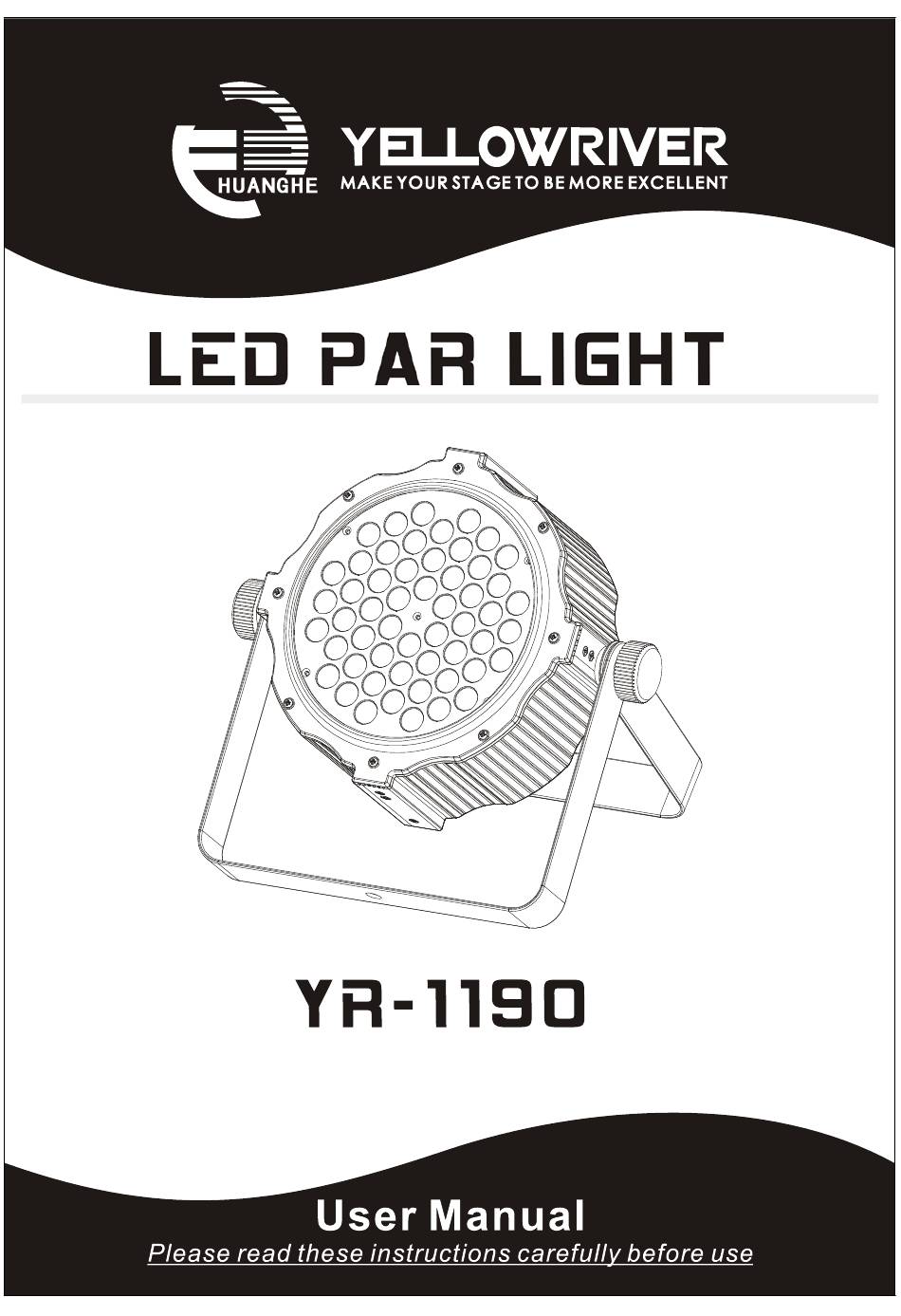

- Page 2 YR-1190 V: 1.0...
- Page 3 YR-1190 Warning For you safe，Please read this user manual carefully before turn on this lighting equipment. This machine should be operated by professional！ Please conserve this manual as operation guidance. If you sell this product to other user, please make sure that they also have this user manual.
-
Page 4: Installation
The bearing of truss should be 3 times of machine weight. And make sure to use safe wire which bearing 3 time of machine weight. Specification of YR-1190 Voltage：AC110V-240V Frequency：50/60HZ Wattage：120W(1W) / 180(3W) LED：54pcs RGBW/R12/G14/B14/W14... - Page 5 YR-1190 Beam Angle：30degree（standard） Signal Control：DMX512 Channel：4/8ch（switchable） Control Mode：DMX、sound active、auto and master/slave Specification of YR-1190-II Voltage：AC110V-240V Frequency：50/60HZ Wattage：180W(54pcs 3W 3in1)/120W(36pcs 3W 3in1) LED：54pcs 3W 3in1 /36pcs 3W 3in1 Beam Angle：25degree（Pearl surface） Signal Control：DMX512 Channel：4/8ch（switchable） Control Mode：DMX、sound active、auto and master/slave Specification of YR-1190-III Voltage：AC110V-240V...
- Page 6 4. DMX Signal output Transfer DMX signal to next model, please use 3pin XLR signal cable. 5. Power output Connect to obtain power (attention：please use connect to stated voltage.) 6．Power input Connect to obtain power LED displayed function reference table A：YR-1190 / YR-1190-III...
- Page 7 YR-1190 Menu Function（press ENTER button） The 4 r— — r000 to r255: R dimmer， from dark to light color’s different g— — g000 to g255：G dimmer，from dark to brightness can mix out light all kinds of b— — b000 to b255：B dimmer，from dark to...
- Page 8 YR-1190 LED displayed function reference table B: YR-1190-I/ YR-1190-II Menu Function（press ENTER button） The 4 r— — r000 to r255: R dimmer， from dark to light color’s different g— — g000 to g255：G dimmer，from dark to brightness can mix out...
- Page 9 YR-1190 Channel Function specification CH 1 Total R G B total linear dimmer, from dark to light Dimmer CH 2 R dimmer R linear dimmer, from dark to light CH 3 G dimmer G linear dimmer, from dark to light...
- Page 10 YR-1190 181-240: flash by sound；241-255: skip by sound CH 8 DMX 7 channel auto running speed, from slow to fast, Auto speed/ sound active sensitivity, from feebleness to strong sound active DMX512 channel chart：（9CH） Channel Function specification CH 1 Total...
- Page 11 YR-1190 For YR-1190，power connection can not be more than 8pcs. If more than 8pcs, please connect to another power input. Attention In address state, when connect multiple models, do not connect to controller, it will run as master and slave. Operate one of the model, this model will auto act as master, other models run the same as master.
- Page 12 YR-1190 slaves are controlled by master, running as master. Controller control Multiple models：set all models to the same or different address value（notice：before running, all the models should be set to the same channel model, 9CH/8CH or 5CH/4CH, or they run differently. Address value should be match with controller’s type and character）connect by signal cables,...
-
Page 13: Machine Maintenance
YR-1190 Machine maintenance Lens of the led face should be cleaned usually, this will make the light beam penetrate normally. Clean frequency depends on environment. In humidity and foggy or dirty environment, lens will easily accumulate dust. * Use soft flax cloth or special depurative to clear lens * Clean the components carefully. - Page 14 YR-1190 -13-...
- Page 15 YR-1190 -14-...
- Page 16 YR-1190 本公司有权对此份产品说明书进行修改，恕不另行通知。 Innovation | Efficiency | Dedication | Harmonious -15-...
