Gima 32926 User Manual

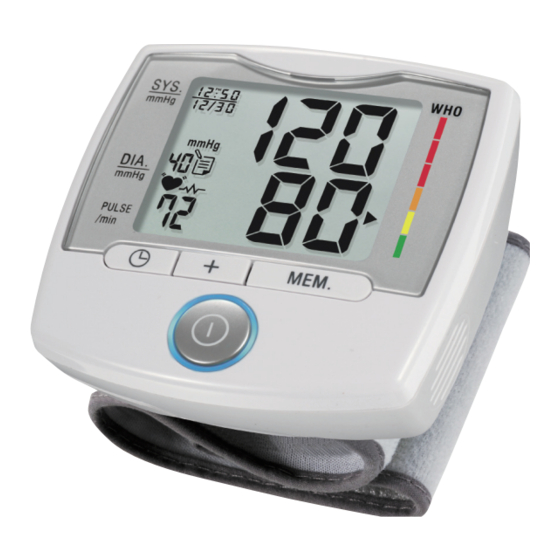

Automatic wrist blood pressure monitor
Hide thumbs Also See for 32926:
Table of Contents

Advertisement

Quick Links

Download this manual
PROFESSIONAL MEDICAL PRODUCTS
SFIGMOMANOMETRO DIGITALE
AUTOMATICO DA POLSO
AUTOMATIC WRIST BLOOD PRESSURE MONITOR
AUTOTENSIOMÈTRE DE LA PRESSION
ARTÉRIELLE AU POIGNET
MONITOR AUTOMÁTICO DE MUÑECA
DE PRESIÓN SANGUÍNEA
Manuale d'uso - User manual
Notice d'utilisation - Manual del usuario
ATTENZIONE: Gli operatori devono leggere
e capire completamente questo manuale
prima di utilizzare il prodotto.
ATTENTION: The operators must carefully
read and completely understand the present
manual before using the product.
AVIS: Les opérateurs doivent lire et bien comprendre
ce manuel avant d'utiliser le produit.
ATENCIÓN: Los operadores tienen que leer y entender
completamente este manual antes de utilizar el producto.
32926
Gima S.p.A.
Via Marconi, 1
20060 Gessate (MI) - Italy
Made in China
Gima S.p.A.
Via Marconi, 1 - 20060 Gessate (MI) Italy
gima@gimaitaly.com - export@gimaitaly.com
www.gimaitaly.com
0476

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 32926 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gima 32926

Summary of Contents for Gima 32926

  • Page 1 Gima S.p.A. Via Marconi, 1 - 20060 Gessate (MI) Italy gima@gimaitaly.com - export@gimaitaly.com www.gimaitaly.com PROFESSIONAL MEDICAL PRODUCTS SFIGMOMANOMETRO DIGITALE AUTOMATICO DA POLSO AUTOMATIC WRIST BLOOD PRESSURE MONITOR AUTOTENSIOMÈTRE DE LA PRESSION ARTÉRIELLE AU POIGNET MONITOR AUTOMÁTICO DE MUÑECA DE PRESIÓN SANGUÍNEA Manuale d’uso - User manual...

  • Page 2: Table Of Contents

    ENGLISH Table of Contents Medical Disclaimer ........................24 Intended Use ..........................24 About Blood Pressure ......................... 24 Precautions ..........................25 Device Overview .......................... 27 Symbols ............................28 Features ............................29 Installing Batteries ........................31 Applying the Cuff ......................... 32 Positioning Guide ........................33 Measurement Procedure ......................

  • Page 3: Medical Disclaimer

    ENGLISH MEDICAL DISCLAIMER This manual and product are not meant as a substitute for advice provided by your doctor. You are not to use the information contained herein, or this product for diagnosing or treating a health problem or prescribing any medication. If you have or suspect that you have a medical problem, promptly consult your healthcare provider.

  • Page 4: Precautions

    ENGLISH A. WHO blood pressure classifications: Standards for assessment of high or low blood pressure without regard to age, have been established by the World Health Organization (WHO), as shown in the chart. However this chart is not exact for classification of blood pressure and it’s intended to be used as a guide in un- derstanding non-invasive blood pressure measurements.
  • Page 5 ENGLISH • Rest at least 5 ~ 10 minutes before taking a measurement. • To allow your blood vessels to return to the condition prior to taking the measurement, please wait at least 3 ~ 5 minutes in between measurements. You may need to adjust the wait time according to your personal physiological situation.

  • Page 6: Device Overview

    ENGLISH *Attention! 1. Do not use the device on infants, children, or those who cannot express their own intention. 2. The device is equipped with sensitive electronic components. While measuring, avoid strong electrical or electromagnetic fields, e.g. mobile phones, microwave ovens, etc; or it may lead to temporary reading error or inaccuracy.

  • Page 7: Symbols

    ENGLISH Unit display Hour : Minute (Also represents YEAR in Setting Mode) Risk category Month/Date indicator Blood pressure unit Systolic rate Low battery symbol Memory record number Pulse symbol Diastolic rate Irregular heartbeat detector Heart rate SYMBOLS SYMBOLS DEFINITIONS Low Battery Symbol This symbol appears when the battery power is excessively low or the polarity reverses.

  • Page 8: Features

    ENGLISH FEATURES Irregular Heartbeat Detector The symbol will appear on screen indicating a certain heartbeat irregularity was detected during measurement. The heartbeat rhythm that is more than or less than 25% from the average rhythm is usually defined as an irregular heartbeat rhythm. Talking, moving, shaking or an irregular pulse during the meas- urement can result in the appearance of this symbol.
  • Page 9 ENGLISH Risk Category Indicator This device is equipped with Risk Category Indicator which classifies your blood pressure measurements into six stages (Optimal to Severe hypertension) as shown in below chart: Stages of Blood Pressure Systolic Diastolic Recommendations by SIGN n. 49: Levels (mmHg) (mmHg)

  • Page 10: Installing Batteries

    ENGLISH *Note! The above table is not exact for classification of blood pressure and it’s intended to be used as a guide in understanding non-invasive blood pressure measurements. Usually this is not a cause for concern; however we recommend you consult with your physician for proper diagnosis or seek medical advice according to our recommendation mentioned above.

  • Page 11: Applying The Cuff

    ENGLISH Make sure the polarities “+” and “–” ends are properly positioned. *Attention! • Batteries are hazardous waste. Do not dispose of them together with the household garbage. Please take the used batteries to the recycling collection point according to your local regulations. •...

  • Page 12: Positioning Guide

    ENGLISH POSITIONING GUIDE It is extremely important that the cuff be at the same height as the heart. Having the cuff higher or lower may cause inaccurate results. 1. Sit down comfortably with your feet flat on the floor. 2. Position the blood pressure monitor on your wrist. 3.

  • Page 13: Memory Function

    ENGLISH B. With the cuff wrapped around your wrist, press button to start measurement. All display units appear on the screen. *Note! Do not inflate the cuff until it is wrapped around your wrist. After all symbols disappear, the display will show “00”. The monitor is “Ready to Measure”...

  • Page 14: Storage And Maintenance

    ENGLISH D. To stop reading memories, press button, and switch to Stand- by Mode. Erasing data A. Press button to select User 1, 2, or 3. B. Press MEM. button to enter Memory Mode. C. Press and hold buttons at the same time, the data will be erased automatically.

  • Page 15: Troubleshooting

    ENGLISH Storage • If the device is not to be used for a long time, please remove the batteries from the device (leaking of battery acid can cause the device to malfunction). • Always store the unit in the storage case after use. •...

  • Page 16: Specifications

    ENGLISH SPECIFICATIONS Model Number 32926 Measurement Method Oscillometric Pressure: 0 ~ 300 mmHg Measurement Range Pulse: 40 ~ 199 Beats / Minute Pressure: ± 3 mmHg Accuracy Pulse: ± 5% Max. Inflation Automatic Inflation (Air Pump) Deflation Automatic Air Release Control Valve...

  • Page 17: Note

    ENGLISH NOTE 0476 This blood pressure monitor complies with the EC (93/42/EEC ) Directive and bears the CE mark This blood pressure monitor also complies with mainly following standards (included but not limited): Safety standard: EN 60601-1 Medical electrical equipment part 1: General requirements for safety EMC standard: EN 60601-1-2 Medical electrical equipment part 1-2: General requirements for safety- Collateral standard:...
  • Page 18 ENGLISH SYMBOLS Keep in a cool, dry place Keep away from sunlight Please read instructions carefully Product complies with European Directive Product code Lot number (see box / package) Serial number Manufacturer 40°C Temperature limit 5°C Date of manufacture IP22 Impermeability index Products should not be disposed of with household waste Type BF applied part...

  • Page 19: Appendix

    ENGLISH To avoid inaccurate results caused by electromagnetic interference between electrical and electronic equipments, do not use the device near a mobile phone or microwave oven. At least keep a maximum output power of 2 W yields and a distance 3.3m away from this equipment. APPENDIX Guidance and manufacturer’s declaration –...
  • Page 20 ENGLISH Guidance and manufacturer’s declaration – electromagnetic immunity The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments: IEC 60601 COMPLIANCE ELECTROMAGNETIC ENVIRONMENT IMMUNITY TEST LEVEL – GUIDANCE TEST LEVEL Conducted RF 3 Vrms Portable and mobile RF communications...
  • Page 21 The warranty is valid for 12 months from the date of supply of GIMA. During the period of validity of the warranty, GIMA will repair and/or replace free of charge all the defected parts due to production reasons.
