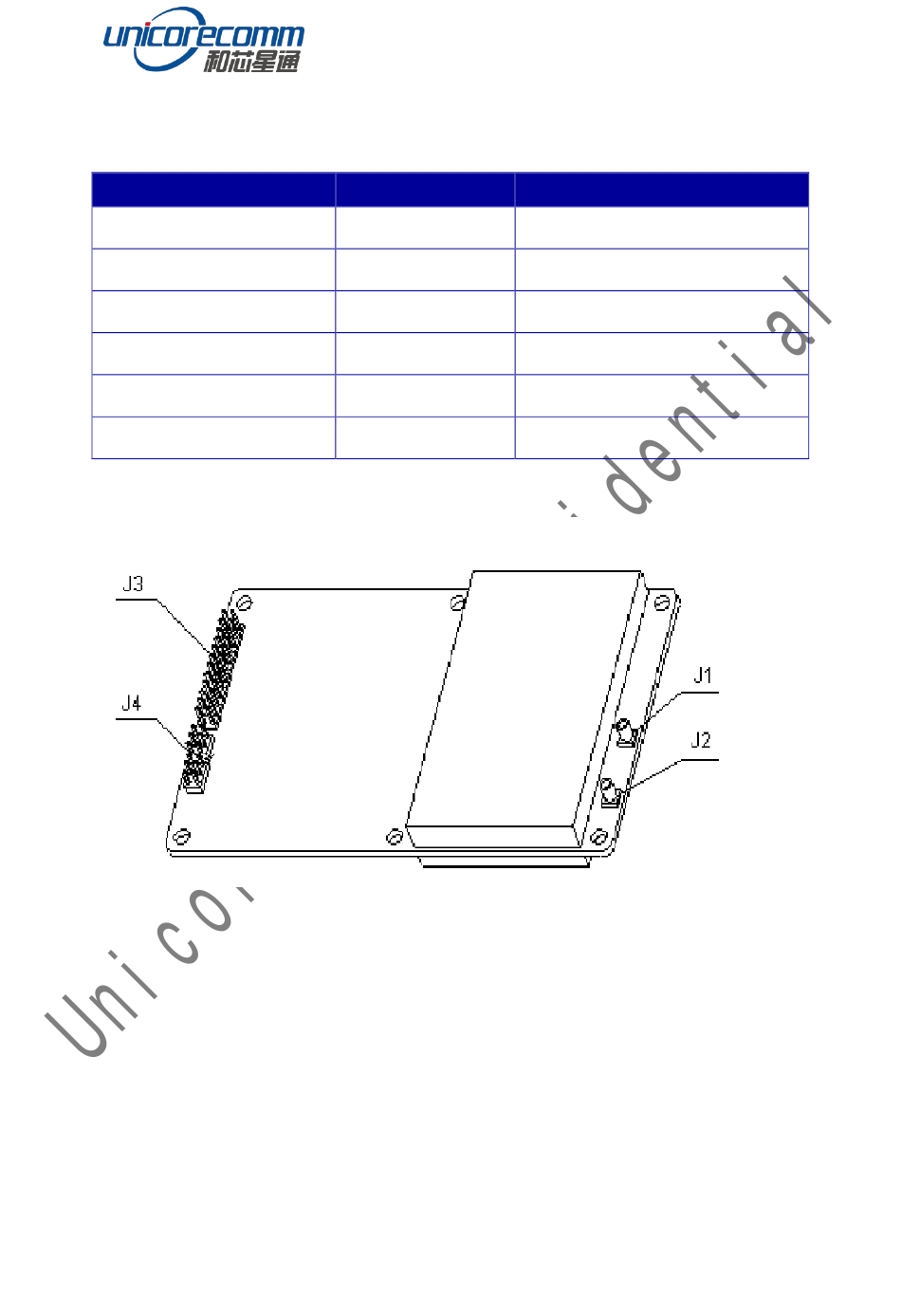

Appendix I Mechanical drawing
Parameter
Length
Width
Height (PCB)
RF Connector
Shield
Pin Height
Value
100mm
60mm
1.6mm
4.5mm
3.1mm
5.9mm
21
Tolerance
-0.2mm +0.5mm
± 0.2mm
± 10%
± 0.2mm
± 0.2mm
± 0.2mm
