5. Press the red button to power on the product. The red LED of the product will be on
immediately. Wait for up to 1 minute until the red LED blinks. The product starts and ready
for control.
6. Now you can run PC software tool RTKFox to evaluate the product.

7. Configuration examples

RTK-M100 product series can work in three different modes, including rover, base station
and sensor mode. The user can use PC software tool RTKFox to configure. After finishing the

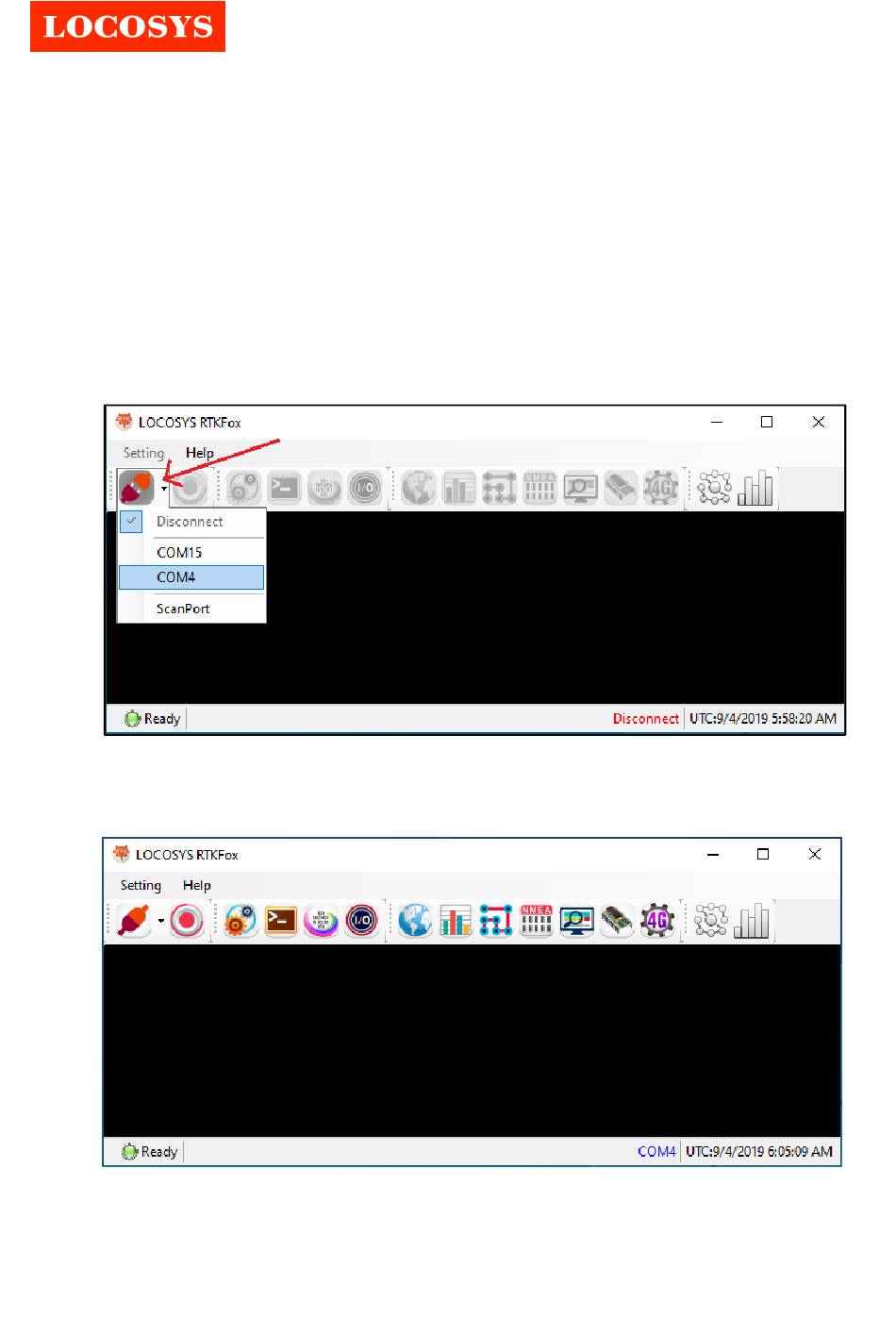

steps in section 6, RTKFox starts as below. Select COM port that the product is connected.
If RTKFox connects to the product successfully, all buttons are enabled as below.
