Locosys GW-52 Quick Start Manual

Hide thumbs Also See for GW-52:
Table of Contents

Advertisement

Quick Links

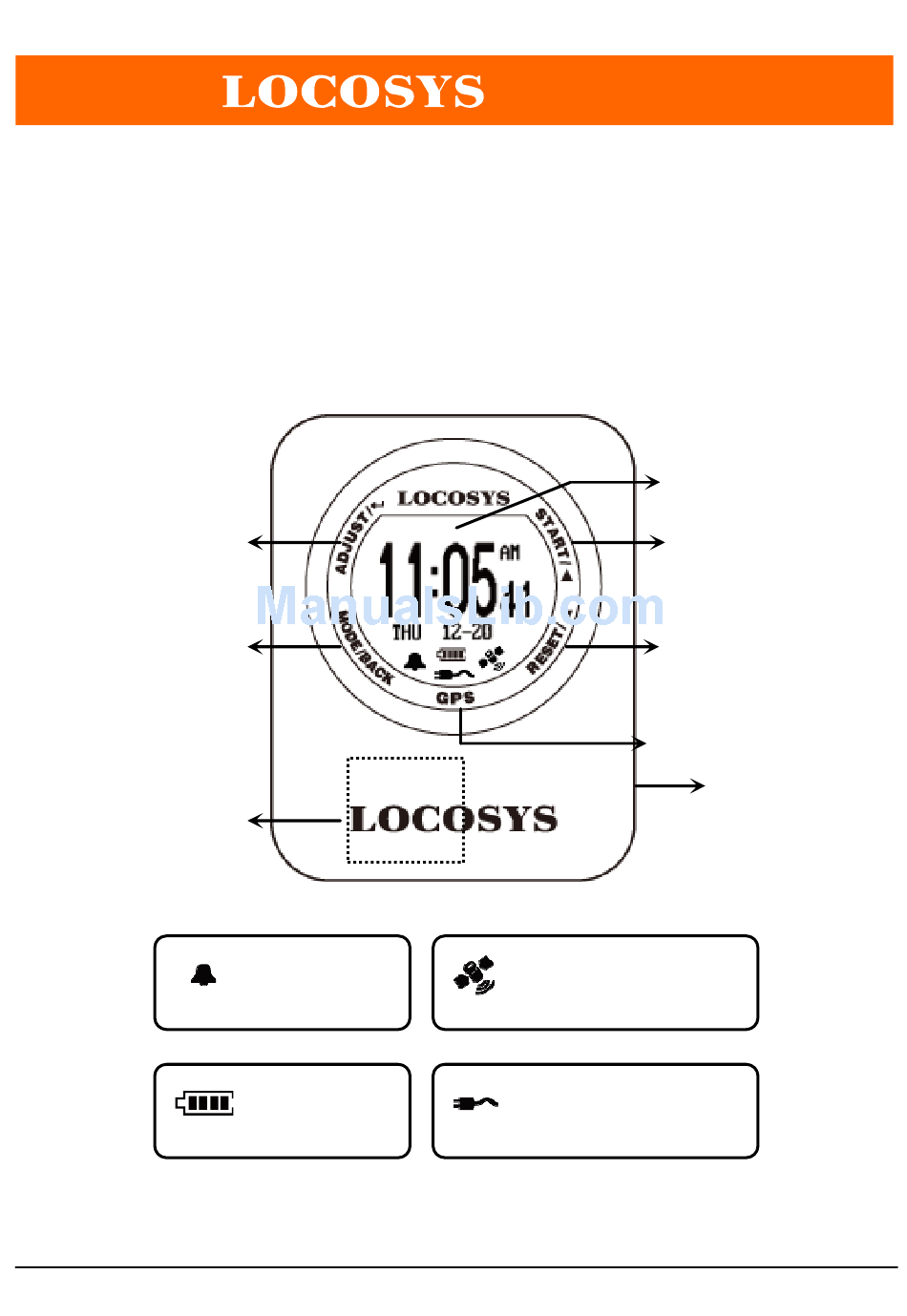

Quick Start Guide

ADJUST/ENTER
MODE/BACK
GPS Antenna
Alarm status
Battery level
GW-52
BACKLIGHT
(in the center of the screen)
START/UP
RESET/DOWN
GPS Function
Blinking:
searching for GPS
Steady on:
GPS is ready
Charging
status
www.locosystech.com
USB Port

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GW-52 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Locosys GW-52

Summary of Contents for Locosys GW-52

  • Page 1: Quick Start Guide

    GW-52 Quick Start Guide BACKLIGHT (in the center of the screen) START/UP ADJUST/ENTER MODE/BACK RESET/DOWN GPS Function USB Port GPS Antenna Blinking: searching for GPS Alarm status Steady on: GPS is ready Battery level Charging status www.locosystech.com...

  • Page 2: Section 1. Brief Introduction

    Section 1. Brief Introduction Use the cable that comes along in the package to power on GW-52 and charge it for at least 2 hours. Touch MODE and select Time modes (1) Clock; (2) Alarm; (3) Stopwacth; (4) Timer Touch both ADJUST key and GPS key simultaneously to enter GW-52 setting screen.

  • Page 3: Section 2. Time Mode

    Section 2. Time Mode Clock Mode Display local time and be adjusted with GMT setting. Tip: Quick clock time setup for first time usage. (1) GMT Setting: Refer to 3.4 (2) GPS Time Synchronization: Under open sky environment, switch to "Action Speed" screen and wait until the GPS icon is steady on.

  • Page 4: Section 3. Setting

    Section 3. Setting LOGGING: Log rate setting. Touch ADJUST key to select OFF, 1HZ, 5HZ through UP or DOWN key. Touch ADJUST key again to complete. MIN SPEED: Speed threshold, only speed above [MIN SPEED] is logged. Touch ADJUST key to select 0 KMH to 15 KMH through UP or DOWN key.

  • Page 5: Firmware Version

    ACTION SPEED: Speed display type. Touch ADJUST key to select SPEED , NS AVG through UP or DOWN key. Touch ADJUST key again to complete. SPEED - Current speed NS AVG - Average speed based on [SPEED AVG]. SPD FONT: Speed display font. Touch ADJUST key to select SMALL, BIG through UP or DOWN key.

  • Page 6: Section 4. Gps Mode

    Section 4. GPS Mode Action Speed: Display current instant speed or N-sec. average speed. Vertical Bar: Log memory usage. Horizontal Bar: Speed accuracy indicator. (Long bar means good signal) Touch START key to next page “Top 10 AVG Speed”. Auto Speed Report: If [SPD GENIE] is enabled, the auto speed report screen shows at the end of each session.
  • Page 7 Top 10 AVG Speeds: Show Top 10 average speed records. Touch START key to next page and touch RESET key to previous page. Touch MODE key to scroll page. Touch ADJUST key to delete records. Top 10 Max Speeds: Show Top 10 max speed record. Touch START key to next page and touch RESET key to previous page.

  • Page 8: Section 5. Gw-52 Pc Utility

    Section 5. GW-52 PC Utility Connect device procedure : (Make sure USB driver is installed) (1) Select COM port properly. (2) Click “Connect” to connect device. Once the device is connected, the firmware version will be displayed. (“V1.0G1120A” in this example)
  • Page 9 Click L og Data to select log function page. “ ” In this page, users can download log data (in SBP format). www.locosystech.com...
  • Page 10 Click “Log Convert” to convert the SBP file into cvs, NMEA, GPX and KML files. (If users want to see the travel trajectory, please check [ ] Google Earth View.) www.locosystech.com...
  • Page 11 Click B rowse to view the SBP file. “ ” www.locosystech.com...
  • Page 12 Click the SBP record in the browse page to view the point on Google Map. Or, to view the converted GPX and KML files on Google Earth. www.locosystech.com...

Table of Contents
