Manual Version: 6PW104-20170414
1 Card view

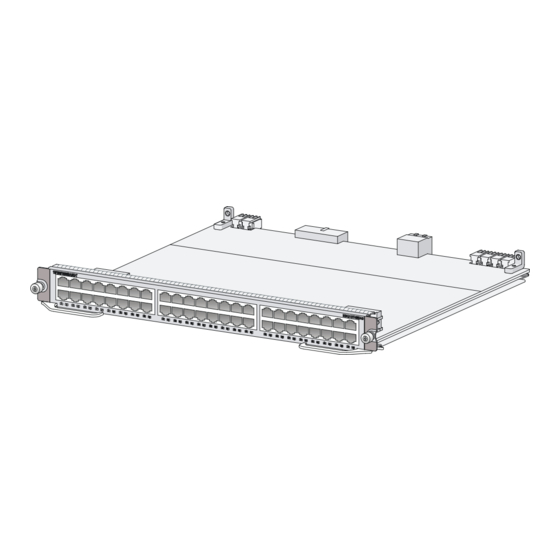

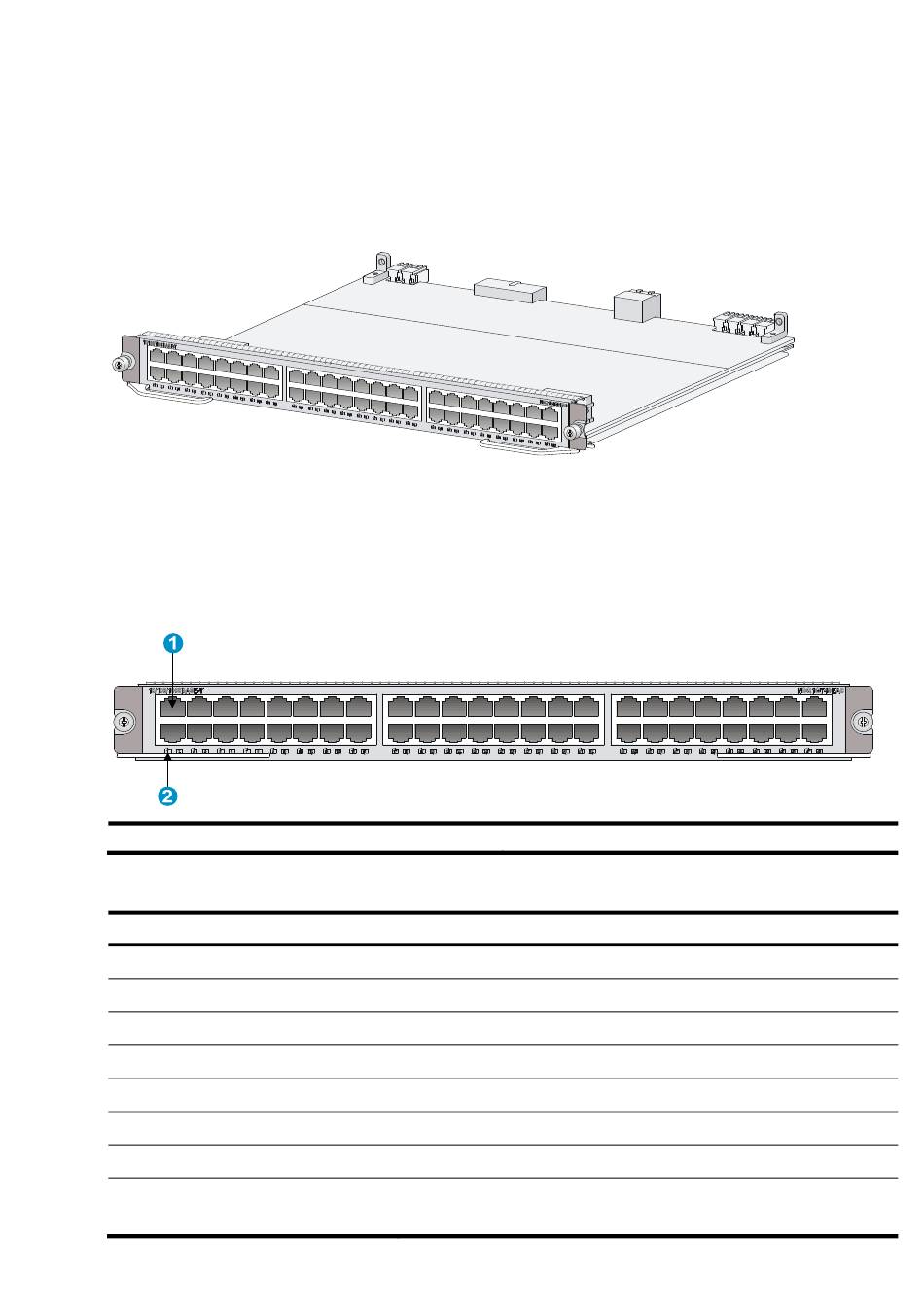

Figure 1 NSQ1GT48EA0 LPU
2 Specifications
The NSQ1GT48EA0 provides 48 10/100/1000BASE-T Ethernet ports on its front panel.
Figure 2 Front panel of the NSQ1GT48EA0
(1) 10/100/1000BASE-T Ethernet port
Table 1 LPU specifications
Item
Dimensions (H × W × D)
Power consumption
Weight
Hot swapping
Connector type
Interfaces
Transmission speed
Ambient temperature
H3C NSQ1GT48EA0 LPU manual
(2) 10/100/1000BASE-T Ethernet port status LED
Specification
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in)
67 W to 95 W
3.31 kg (7.30 lb)
Supported
RJ-45
48 10/100/1000Base-T Ethernet ports
10/100/1000 Mbps, half/full duplex
•
Operating: 0°C to 45°C (32°F to 1 13°F)
•
Storage: –40°C to +70°C (–40°F to +158°F)
i
BOM: 3123A0R7
