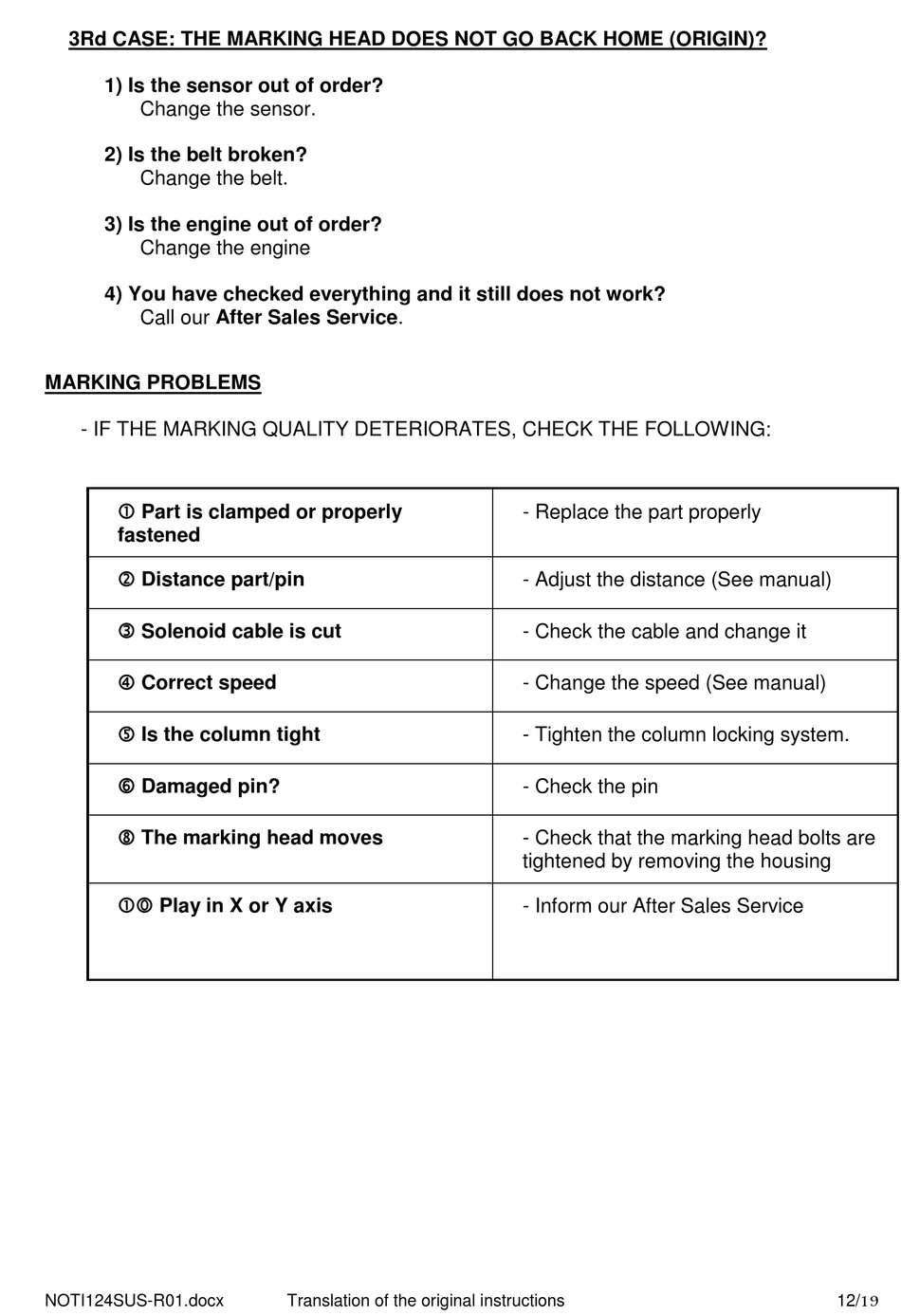

Sic Marking i124s User Manual page 12

3Rd CASE: THE MARKING HEAD DOES NOT GO BACK HOME (ORIGIN)?
1) Is the sensor out of order?
Change the sensor.
2) Is the belt broken?
Change the belt.
3) Is the engine out of order?
Change the engine
4) You have checked everything and it still does not work?
Call our After Sales Service.
MARKING PROBLEMS
- IF THE MARKING QUALITY DETERIORATES, CHECK THE FOLLOWING:
 Part is clamped or properly
fastened
 Distance part/pin
 Solenoid cable is cut
 Correct speed
 Is the column tight
 Damaged pin?
 The marking head moves
 Play in X or Y axis
NOTI124SUS-R01.docx Translation of the original instructions
- Replace the part properly
- Adjust the distance (See manual)
- Check the cable and change it
- Change the speed (See manual)
- Tighten the column locking system.
- Check the pin
- Check that the marking head bolts are
tightened by removing the housing
- Inform our After Sales Service
