Summary of Contents for Will Burt Nightscan Spot

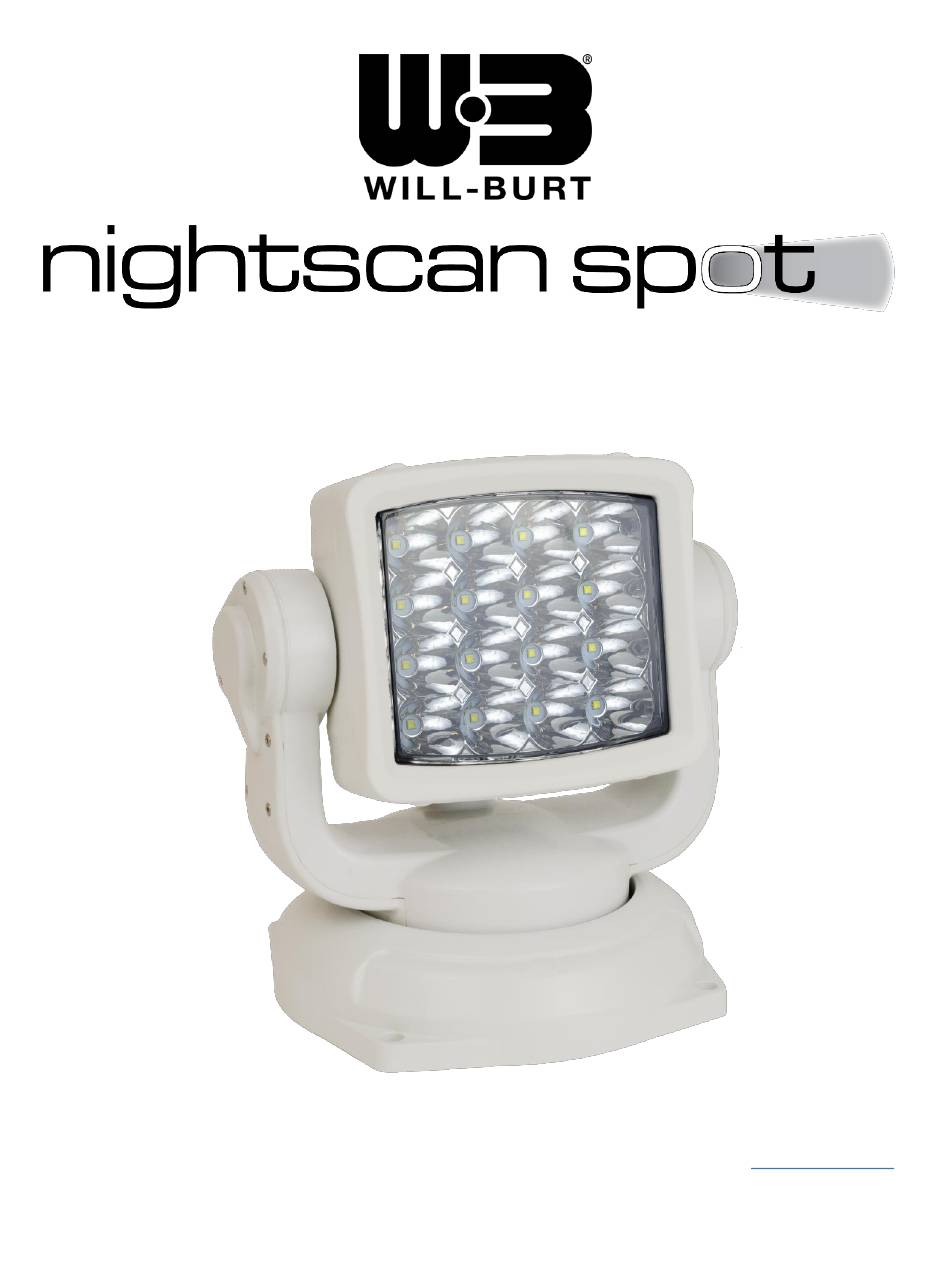

- Page 1 ’ IGHT PERATOR ANUAL The Will-Burt Company 401 Collins Boulevard (P/N: 5584901) Orrville, OH 44667 www.willburt.com TP-5590101-B, October 2019 © 2019 The Will-Burt Company Original Instructions...
- Page 3 ’ IGHT PERATOR ANUAL Warranty Will-Burt warrants its Night Scan Spot to be free from defects in material and workmanship for a period of five (5) years with such time periods running from the date of shipment by Will-Burt. Will-Burt shall not be responsible for any damage resulting to or caused by its products by reason of failure to properly install, maintain or store the product;...
- Page 4 ’ IGHT PERATOR ANUAL Document History Document Numbers Dates Remarks TP-5590101-00 June 17, 2019 Initial Release TP-5590101-A July 10, 2019 Added Logo. TP-5590101-B October 28, 2019 Corrected Front Cover and updated Section 2.2. TP-5590101-B October 2019...
-
Page 5: Table Of Contents
’ IGHT PERATOR ANUAL Table of Contents Safety Summary ........................iii General Safety Instructions ........................iii Section 1 Introduction ......................1 1.1 Safety Precaution Notification ......................1 1.2 Manual Organization ........................... 1 1.3 Specifications ............................2 1.4 Night Scan Spot Description ....................... 2 Section 2 Installation ....................... - Page 6 ’ IGHT PERATOR ANUAL TP-5590101-B October 2019...
-
Page 7: Section 1 Introduction
’ IGHT PERATOR ANUAL Section 1 Introduction Review this manual in its entirety. Contact The Will-Burt Company with any questions before performing any procedure outlined in this manual. The views depicted in this manual are provided for clarification and are subject to change without notice. Views are not to scale. This manual describes installation, operation, and maintenance procedures for the Night Scan Spot. -
Page 8: Specifications
’ IGHT PERATOR ANUAL 1.3 Specifications Table 1 Night Scan Spot Specifications Functional Characteristic Specification 10 – 30 VDC Operating Voltage Range Power Consumption Maximum Distance for Operating Remote Control Up to 130 ft. Approximate Weight 7 lb. (3.2 kg) Remote Control Battery One 23A battery (12V) 1.4 Night Scan Spot Description... -
Page 9: Section 2 Installation
’ IGHT PERATOR ANUAL The Night Scan Spot is equipped with a flashing alert feature which can be used: • To warn approaching motorists of pedestrians of potential hazards • To alert that help is needed • With service vehicles to alter on-coming vehicles that there are people at work The Stow Feature causes the light to automatically turn to face the forward position when turned off. -
Page 10: Figure 2-1 Night Scan Spot Mounting Hole Pattern
’ IGHT PERATOR ANUAL 4. Use the Night Scan Spot as a template to drill four holes in the desired mounting location or use the mounting hole pattern (Figure 2-1). Ensure the Night Scan Spot remains level during drilling. Figure 2-1 Night Scan Spot Mounting Hole Pattern 5. -
Page 11: Section 3 Operation
’ IGHT PERATOR ANUAL Section 3 Operation The Remote Control is used to operate the Night Scan Spot as shown in Table 2 and Figure 3-1. Table 2 Button Function Symbol Function Symbol Function Warning Signal. Press to toggle the ON/OFF. -
Page 12: Section 4 Remote Control Pairing
’ IGHT PERATOR ANUAL Section 4 Remote Control Pairing The default state for the Night Scan Spot is to be unpaired to any Remote Control. To avoid interference from other Remote Control devices that are within range, it is highly recommended that the light be paired to a Remote Control. -
Page 13: Section 5 Maintenance
’ IGHT PERATOR ANUAL Section 5 Maintenance As needed, use a clean, soft cloth, mild soap, and water to clean the lens. Note: The Night Scan Spot uses Lexan lenses and cleaning with abrasive materials, solvents, or most chemical cleaners can cause lens surface degradation and reduce performance of the light. - Page 14 ’ IGHT PERATOR ANUAL TP-5590101-B October 2019...
