Sloan EHD-302 Quick Start Manual

► ► Code Number

Code Number

3366013
► ► Specifications

Specifications

● ● Model EHD-302 208/230 VAC, 10 Amp, 60 Hz
● ● Maintenance free brushless motor with self-lubricating bearings,
capacitor initiated for quick starts
● ● State-of-the-art electronic timer with adjustable time cycle (set
at 30 seconds)
● ● Air delivery of approximately 150 CFM at an outlet temperature
of 145°F/63°C at a 72°F/22°C ambient room temperature
● ● Heating element constructed of Nichrome wire and protected
by an automatic resetting thermostat
● ● Chrome plated die-cast zinc alloy push button and air nozzle
● ● One piece heavy-duty rib reinforced die cast zinc alloy housing
● ● Bright chrome plate or chip-proof electrostatically-applied epoxy
finish
● ● Decibel Rating of 74 dB
● ● Air nozzle rotates 360 degrees to facilitate hand and face drying
● ● Tamper-proof cover fasteners are included
► ► Colors

Colors

☐ White
☐ Chrome Plate
► ► Electrical Requirements

Electrical Requirements

● ● Install electrical line in the location shown in the Wiring Diagram
below.
● ● Electrical Connection Specifications
● ● Connect 110/120 VAC dryer to not more than a 20 Amp branch
circuit using #12 gauge or larger wire, and a 208/230/277 VAC
dryer to not more than a 15 Amp branch circuit using #14 gauge
or larger wire. DO NOT attach any other electrical devices to this
branch circuit.
● ● Important: ALL ELECTRICAL WIRING SHOULD BE INSTALLED IN
ACCORDANCE WITH NATIONAL/LOCAL CODES AND
REGULATIONS.
► ► OPERATION

OPERATION

Ph: 1-800-9-VALVE-9 or 1-847-671-4300 ● Fax: 1-800-447-8329 or 1-847-671-4380 ● http://www.sloan.com
2017-11-12
SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. 60131 SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL.

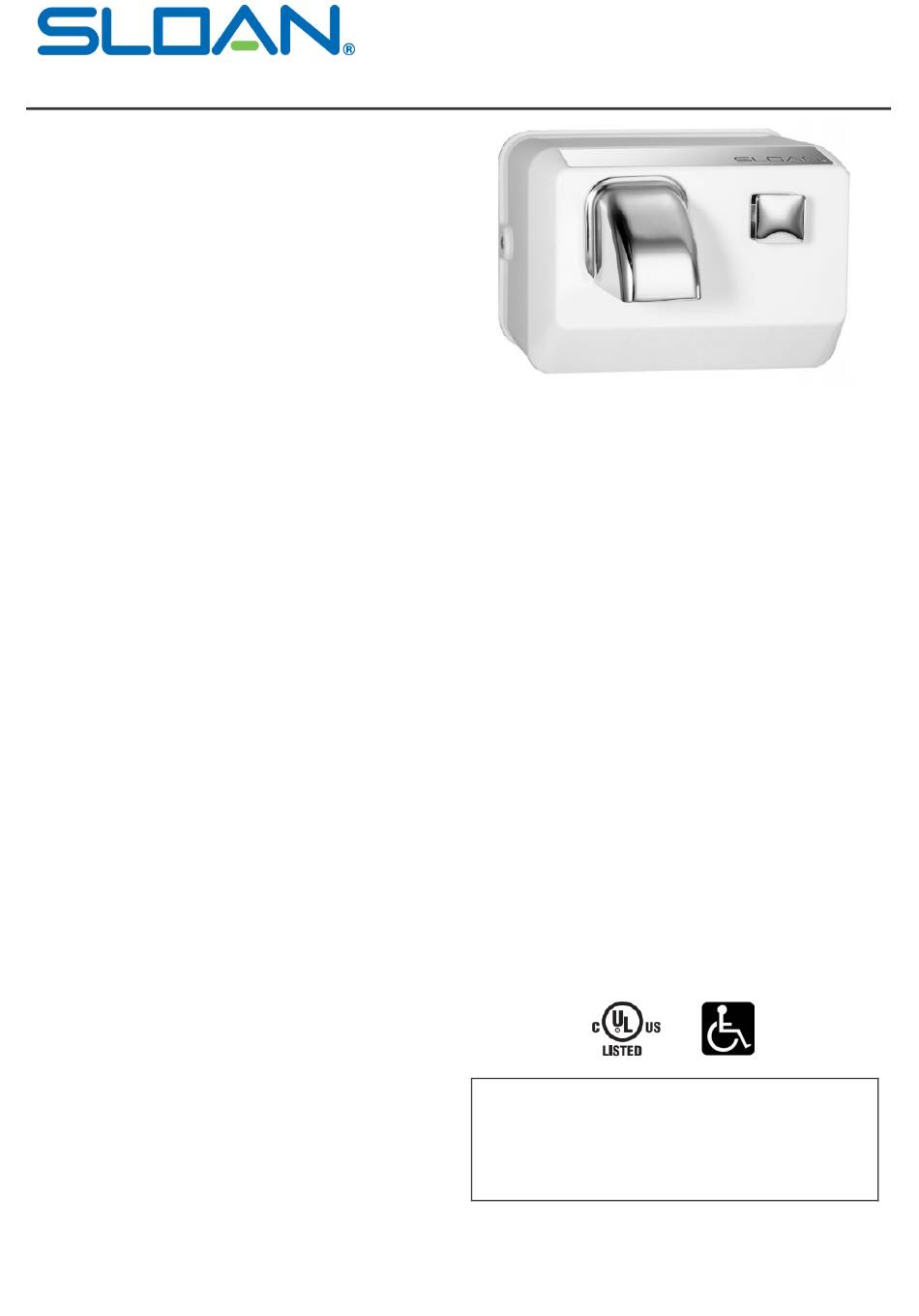

Push Button Activated Surface
Mounted Electronic Hand Dryer
EHD-302
► ► Installation Precautions

Installation Precautions

Mounting surface should be smooth and flat.
Mount dryer at least 24 inches (610 mm) away from basins and at
least 20 inches (508 mm) away from corners.
Mount multiple hand dryers a minimum separation distance of 20
inches (508 mm) (measured center to center).
Avoid installing hand dryers in narrow hallways and behind swinging
doors.
► ► Rotating Air Nozzle

Rotating Air Nozzle

The Air Nozzle rotates a full 360 degrees to facilitate hand and face
drying. It can also be secured in a stationary downward position.
► ► Push Button Activated

Push Button Activated

Sloan OPTIMA® EHD-301, EHD-302 and EHD-304 Push Button
Activated Hand Dryers operate by means of a state-of-the-art
electronic timing device. Once the user presses the Push Button, the
Hand Dryer will activate for thirty (30) seconds of continuous
operation.
► ► Maintenance Free Motor

Maintenance Free Motor

Sloan OPTIMA® EHD-301, EHD-302 and EHD-304 Push Button
Activated Hand Dryers come equipped with a maintenance free
brushless motor with self-lubricating bearings, capacitor initiated for
quick starts.
► ► Compliance & Certifications Compliance & Certifications
This space for Architect/Engineer Approval
