Makita RT0700C Instruction Manual page 7

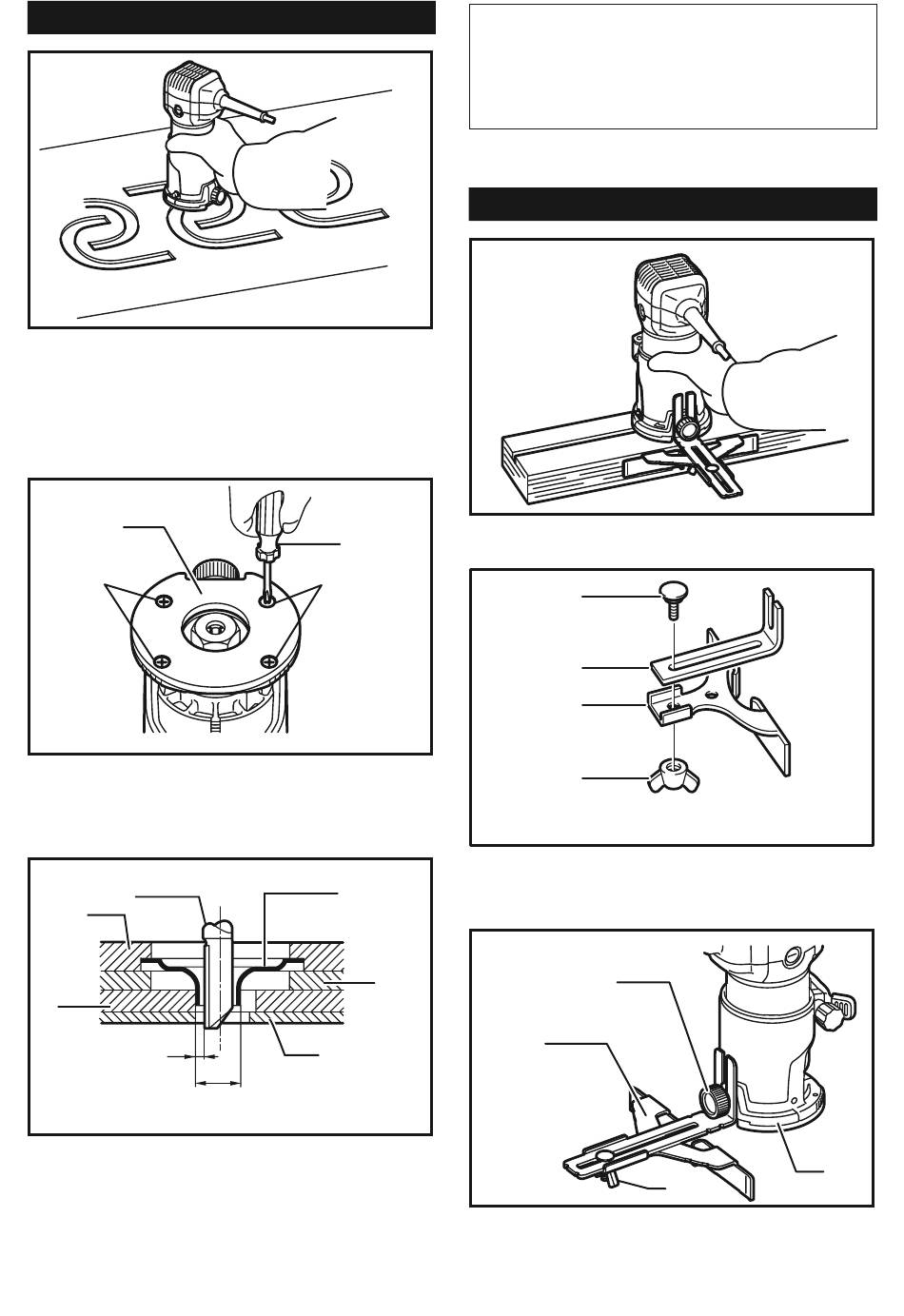

Templet guide (optional accessory)
The templet guide provides a sleeve through which the
bit passes, allowing use of the trimmer with templet
patterns.
Loosen the screws and remove the base protector.
Place the templet guide on the base and replace the
base protector. Then secure the base protector by
tightening the screws.
1
2
► 1. Base protector 2. Screws 3. Screwdriver
Secure the templet to the workpiece. Place the tool on
the templet and move the tool with the templet guide
sliding along the side of the templet.
1
2
3
4
10m m ( 3/ 8" )
► 1. Straight bit 2. Base 3. Templet 4. Distance (X)
5. Workpiece 6. Templet guide 10 7. Base protector
NOTE:
•
Distance (X) = (outside diameter of the templet guide -
router bit diameter) / 2
Straight guide (optional accessory)
The straight guide is effectively used for straight cuts
3
when chamfering or grooving.
2
► 1. Bolt 2. Guide plate 3. Straight guide 4. Wing nut
6
Attach the guide plate to the straight guide with the bolt
and the wing nut.
7
5
► 1. Clamp screw (A) 2. Straight guide 3. Wing nut
4. Base
7 ENGLISH
The workpiece will be cut a slightly different
size from the templet. Allow for the distance (X)
between the router bit and the outside of the
templet guide. The distance (X) can be calcu-
lated by using the following equation:
