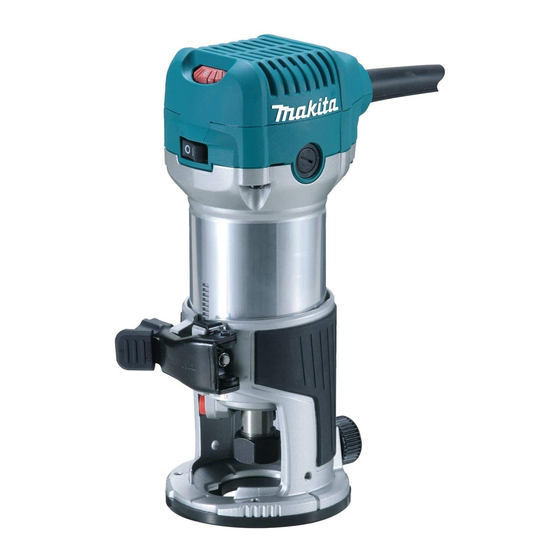

INSTRUCTION MANUAL
Trimmer
RT0700C
DOUBLE INSULATION
Read before use.

Advertisement

Table of Contents
loading

Related Manuals for Makita RT0700C

Summary of Contents for Makita RT0700C

  • Page 1 INSTRUCTION MANUAL Trimmer RT0700C DOUBLE INSULATION Read before use.

  • Page 2: Specifications

    EC Declaration of Conformity wood, plastic and similar materials. Power supply We Makita Corporation as the responsible manufac- The tool should be connected only to a power supply turer declare that the following Makita machine(s): of the same voltage as indicated on the nameplate, Designation of Machine: and can only be operated on single-phase AC supply.

  • Page 3: General Power Tool Safety Warnings

    13. Prevent unintentional starting. Ensure the General Power Tool Safety Warnings switch is in the off-position before connecting to power source and/or battery pack, picking WARNING Read all safety warnings and all up or carrying the tool. Carrying power tools with instructions.

  • Page 4: Functional Description

    TRIMMER SAFETY WARNINGS FUNCTIONAL Hold power tool by insulated gripping sur- DESCRIPTION faces, because the cutter may contact its own cord. Cutting a "live" wire may make exposed metal parts of the power tool "live" and shock the CAUTION: operator. •...
  • Page 5 Electronic function ASSEMBLY The tool equipped with electronic function are easy to operate because of the following features. CAUTION: • Always be sure that the tool is switched off and Constant speed control unplugged before carrying out any work on the tool.

  • Page 6: Operation

    OPERATION For the trimmer base ► 1. Feed direction 2. Bit revolving direction 3. Workpiece 4. Straight guide CAUTION: • Since excessive cutting may cause overload of ► 1. Dust nozzle 2. Thumb screw 3. Trimmer base the motor or dificulty in controlling the tool, the depth of cut should not be more than 3 mm at a pass when cutting grooves.
  • Page 7 Templet guide (optional accessory) NOTE: • The workpiece will be cut a slightly different size from the templet. Allow for the distance (X) between the router bit and the outside of the templet guide. The distance (X) can be calcu- lated by using the following equation: Distance (X) = (outside diameter of the templet guide - router bit diameter) / 2...
  • Page 8 Attach the straight guide with the clamp screw (A). Loosen the wing nut on the straight guide and adjust the distance between the bit and the straight guide. At the desired distance, tighten the wing nut securely. When cutting, move the tool with the straight guide lush with the side of the workpiece.
  • Page 9 Base protector removed from the tilt base (optional accessory) Mounting the base protector which has been removed from the tilt base on the trimmer base allows the change of the trimmer base from the round base to a square base. For another application, remove the base protector from the tilt base by loosening and removing four screws.
  • Page 10 ► 1. Pulley 2. Collet nut 3. Collet cone Mount the tool on the offset base Before installing the tool on the offset base, remove the collet nut and collet cone by loosening the collet nut. ► 1. Pulley 2. Belt Put an end of the belt over the pulley using a screw- ►...
  • Page 11 ► 1. Wrench 2. Hex wrench 3. Bit ► 1. Bar type grip (optional accessory) 2. Grip attach- ment (optional accessory) 3. Offset base plate To install the bit, fall the tool with the offset base on its 4. Trimmer base assembly (optional accessory) side.
  • Page 12 Adjusting the depth of cut when When using as a router only with a using the plunge base (optional plunge base (optional accessory) accessory) CAUTION: • When using as a router, hold the tool irmly with both hands. ► 1. Plunge base 2. Grip To use the tool as a router, install the tool on a plunge base (optional accessory) by pressing it down fully.
  • Page 13 Straight guide when using as a router (needed to use with guide holder (optional accessory)) The straight guide is effectively used for straight cuts when chamfering or grooving. ► 1. Workpiece 2. Bit revolving direction 3. View from the top of the tool 4. Feed direction NOTE: •...
  • Page 14 Secure the templet to the workpiece. Place the tool on To install the straight guide, insert the guide bars into the holes in the plunge base. Adjust the distance the templet and move the tool with the templet guide between the bit and the straight guide. At the desired sliding along the side of the templet.

  • Page 15: Replacing Carbon Brushes

    To maintain product SAFETY and RELIABILITY, repairs, MAINTENANCE any other maintenance or adjustment should be per- formed by Makita Authorized Service Centers, always using Makita replacement parts. CAUTION: • Always be sure that the tool is switched off and unplugged before attempting to perform inspec- tion or maintenance.

  • Page 16: Optional Accessories

    CAUTION: • These accessories or attachments are recom- mended for use with your Makita tool speciied in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.
  • Page 17 Drill point double lush trimming bit Chamfering bit 1/4" Corner rounding bit Cove beading bit 1/4" 1/4" Ball bearing lush trimming bit 1/4" 17 ENGLISH...
  • Page 18 Ball bearing corner rounding bit Ball bearing beading bit 1/4" Ball bearing cove beading bit Ball bearing chamfering bit 1/4" Ball bearing roman ogee bit 18 ENGLISH...
  • Page 19 NOTE: • Some items in the list may be included in the tool package as standard accessories. They may differ from country to country. 19 ENGLISH...
  • Page 20 Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885025B229 20170928 www.makita.com...
