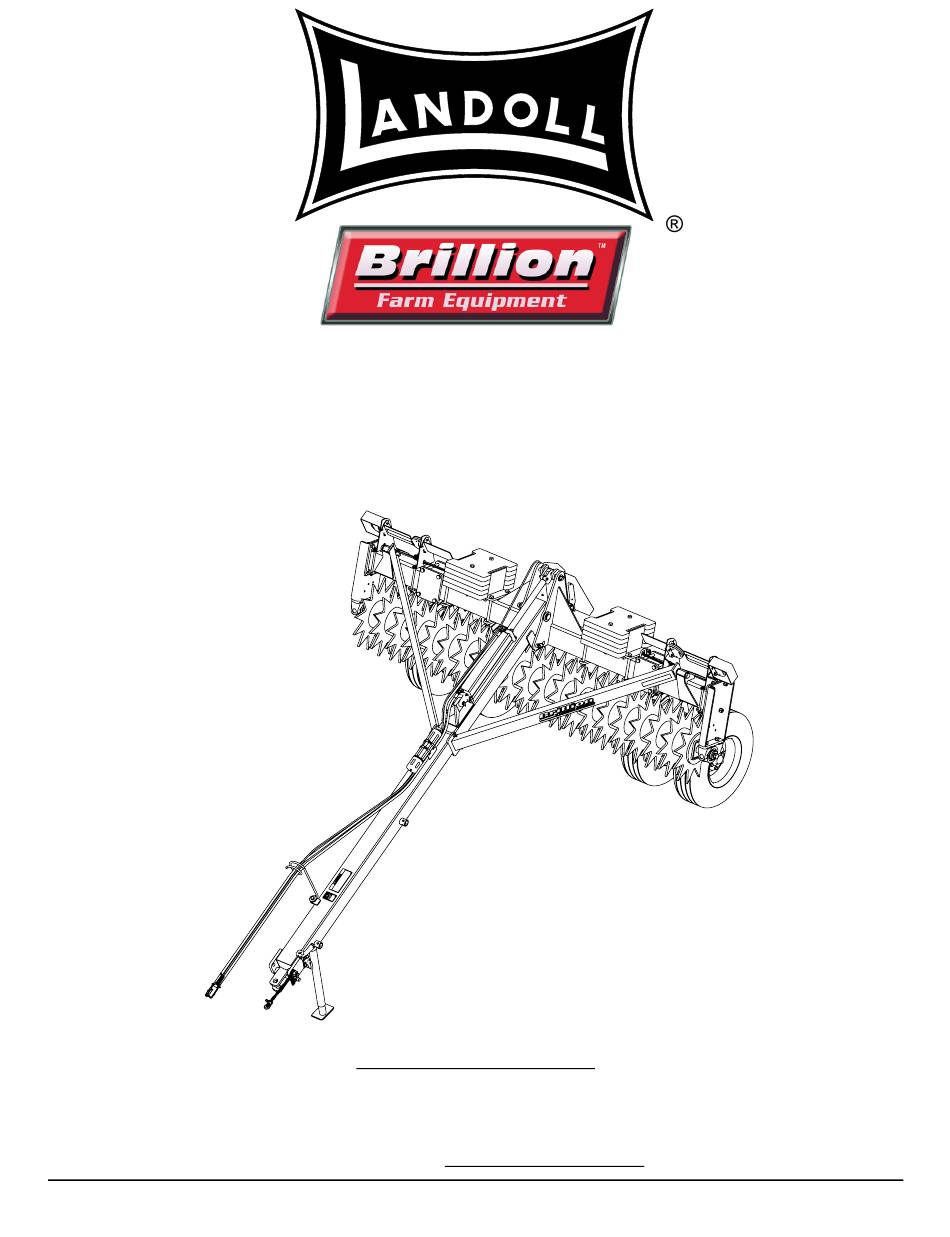

Aerator
PAT 10
Operator's Manual
s
LANDOLL CORPORATION
1900 North Street
Marysville, Kansas 66508
(785) 562-5381
800-428-5655 ~ WWW.LANDOLL.COM
F-948R0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Brillion PAT 10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Landoll Brillion PAT 10

Summary of Contents for Landoll Brillion PAT 10

  • Page 1 Aerator PAT 10 Operator’s Manual LANDOLL CORPORATION 1900 North Street Marysville, Kansas 66508 (785) 562-5381 800-428-5655 ~ WWW.LANDOLL.COM F-948R0...

  • Page 3: Table Of Contents

    Table of Contents Introduction and Safety Information Introduction ..............1-1 Description of Unit .
  • Page 4 Maintenance General Torque Specifications ..........4-1 Hydraulic Fitting Torque Specifications .

  • Page 5: Introduction And Safety Information

    The implement described in this manual has been warranty obligation unless each product is registered designed with care and built by skilled workers using within 10 days of retail purchase, using the Landoll quality materials and processes. Proper assembly and Corporation Ag Products on-line registration process.

  • Page 6: Safety

    INTRODUCTION AND SAFETY INFORMATION Safety When applying decals to the implement, be sure to clean the surface to remove any dirt or residue. Where possible, sign placement should protect the sign from NOTE abrasion, damage, or obstruction from mud, dirt, oil etc. Investigation has shown that nearly 1/3 of all farm ...

  • Page 7: Maintenance Safety

    INTRODUCTION AND SAFETY INFORMATION Maintenance Safety • Block the implement so it will not roll when working on or under it to prevent injury. • Do not make adjustments or lubricate the machine while it is in motion. • Make sure all moving parts have stopped. •...

  • Page 8: Safety Chain

    INTRODUCTION AND SAFETY INFORMATION Safety Chain A second chain should be used between each implement. Use the safety chain to help control drawn machinery Attach the chain to the specified location. Allow only should it separate. enough slack in the chain to permit turning. See Use a chain with a strength rating equal to or greater than Figure 1-2.

  • Page 9: Decals

    INTRODUCTION AND SAFETY INFORMATION Decals Figure 1-3: Decals F-948R0...
  • Page 10 INTRODUCTION AND SAFETY INFORMATION Figure 1-4: Decal Locations F-948R0...

  • Page 11: Assembly

    Chapter 2 Assembly • Check that all working parts move freely, bolts are tight  CAUTION and cotter pins spread. • Refer to the Torque Table for proper torque valves. Do not work on or under this machine unless Note the different torque requirements for bolts with securely blocked and supported by a hoist or lock nuts.

  • Page 12: Drawbar Installation

    ASSEMBLY Drawbar Installation Bring the rear of the Drawbar into position between the Frame Hitch Plates at the center of the Frame. Place two 1-1/4 x 1-7/8 x 14 ga Machinery Bushings on each side between the Drawbar and the Frame Hitch Plates. See Figure 2-2.
  • Page 13 ASSEMBLY Figure 2-4: Drawbar F-948R0...

  • Page 14: Wheel Arm Assembly

    ASSEMBLY Wheel Arm Assembly Attach the Wheel Arms to the Frame. The Wheel Arms should be equally spaced from the center of the machine. See Figure 2-5. Fasten the Wheel Arms to the Frame with 4 Hole Plates and eight 3/4-10 x 9-1/2 Bolts and Locknuts.
  • Page 15 ASSEMBLY Figure 2-6: Wheel Arm Assembly F-948R0...

  • Page 16: Hydraulic System Installation

    ASSEMBLY Hydraulic System Installation: Lift Hydraulic Circuit Installation Hydraulic Fluid Capacity = 1.25 gallons  WARNING 1. Install a 90 Degree Elbow restrictor into each cylinder port. Escaping fluid under pressure can be nearly 2. Attach longer hose to Cylinder rod end Elbow Fitting invisible and have enough force to penetrate the and the shorter hose to the Cylinder base end Elbow skin causing serious injury.
  • Page 17 ASSEMBLY Figure 2-7: Hydraulic Hose Installation F-948R0...

  • Page 18: Led Lamp And Harness Installation

    ASSEMBLY LED Lamp and Harness Installation 14. Attach the SMV Sign to the center frame weldment using two 5/16-18 x 1 Bolts, Flat Washers and 1. Attach the four Light Brackets to the Frame Tube by Locknuts. placing a Strap under the Tube and securing with 15.
  • Page 19 ASSEMBLY Figure 2-9: LED Light Installation F-948R0...

  • Page 20: Weight Kit - Optional

    ASSEMBLY Weight Kit - Optional Weight Kits can be added to increase rotor penetration. Each 5 stack of weights and bracket add 550 pounds. Figure 2-10: Weight Kit 2-10 F-948R0...

  • Page 21: Operation

    This chapter will cover the basic operation and Never allow anyone to ride on the Aerator at any procedures for the Landoll Brillion Aerator. Be sure to time. Allowing a person to ride on the machine read and understand the Safety Procedures and can inflict serious personal injury or death to that Cautions starting on page 1-1.

  • Page 22: Drawbar Jack Positions

    OPERATION Drawbar Jack Positions When attaching the Aerator to a tractor or implement whose drawbar height is less than 30 inches, locate the The Aerator is designed to be pulled behind tractors or jack on the 1st or 2nd Jack Swivel closest to the Drawbar other implements.
  • Page 23 OPERATION Figure 3-2: 2nd Jack Swivel Position Figure 3-3: 3rd Jack Swivel Position F-948R0...

  • Page 24: Transport Lock

    OPERATION Transport Lock Transporting To prepare the machine for transport, hitch Aerator to  CAUTION desired device, lower Jack and pin it up out of the way. Raise the machine fully. Remove the Transport Lock Pin Be sure to install the transport lock pin any time from the storage position and install the Transport Pin in the Aerator is being pulled or stored in the the locked position.

  • Page 25: Led 7-Pin Ag Connector

    OPERATION LED 7 Pin AG Connector Transport If an operator plugs in the 7 pin connector, but the lights 1. Check and follow all federal, state, and local do not seem to work right, check the below items to make requirements before transporting the Aerator.
  • Page 26 OPERATION 7. Check that tires are of proper size, load rating, and inflated to manufacture specifications before transporting. Check wheel lug bolts to ensure tightness. 8. Know the transport heights and widths of the unit before transporting. Use caution when transporting near bridges and power lines.

  • Page 27: Maintenance

    Chapter 4 Maintenance General Torque Specifications (rev. 4/97) This chart provides tightening torques for general purpose applications when special torques are not specified on process or drawing. Assembly torques apply to plated nuts and capscrews assembled without supplemental lubrication (as received condition). They do not apply if special graphite moly-disulfide or other extreme pressure lubricants are used.

  • Page 28: Hydraulic Fitting Torque Specifications

    MAINTENANCE Hydraulic Fitting Torque Specifications 37 degree JIC, ORS, &ORB (REV. 10/97 This chart provides tightening torques for general purpose applications when special torques are not specified on process or drawing. Assembly torques apply to plated nuts and capscrews assembled without supplemental lubrication (as received condition). They do not apply if special graphite moly-disulfide or other extreme pressure lubricants are used.

  • Page 29: Tires

    MAINTENANCE Tires  WARNING  CAUTION Do not lubricate machine while machine is in motion. If any guards are removed for lubricating, Use of smaller or lighter tires will cause they must be replaced before operating. premature tire failure and may cause an accident. Hydraulic System The wheels furnished with the Aerator are designed for use of 11L x 15-8 ply rib implement tires.
  • Page 30 MAINTENANCE Figure 4-2: Lubrication Intervals F-948R0...

  • Page 31: Rotor Bearing Maintenance

    MAINTENANCE Rotor Bearing Maintenance three on the inside between the Stub Shaft shoulder and the Trunnion Bearing, all three can be on the outside If bearings are removed from frame refer to the steps between the Trunnion Bearing and Flat Top Washer, or a below to ensure minimum axle load is applied to prolong combination on either side, but all three must be used to bearing life.

  • Page 32: Rotor Blade

    MAINTENANCE Rotor Blade • Regularly check Rotor Blade tightness, if adjustment is needed, tighten 3/4-10 Bolts at the end of the • Check and replace bent or damaged Rotor Blades. Rotor to 200 Ft-Lbs. Figure 4-4: Rotor Maintenance F-948R0...

  • Page 33: Storage

    MAINTENANCE Storage 1. The service life of the Aerator will be extended by proper off-season storage practices. Prior to storing the unit, complete the following procedures: a. Completely clean the unit. b. Inspect the machine for worn or defective parts. Replace as needed.
  • Page 34 MAINTENANCE Table provided for general use. NOTES: F-948R0...

  • Page 35: General Reference And Specifications

    Chapter 5 General Reference and Specifications PAT10 Approximate Weight 3815 lbs (1731 kg) Weight Kit Approximate Weight 1100 lbs (499 kg) Working Width 10 ft 0 in (3.0 m) Transport Width 11 ft 4 in (3.5 m) Transport Height 6 ft 0 in (1.8 m) Overall Length, Transport 14 ft 3 in (4.27 m) Overall Length, Operation...
  • Page 36 GENERAL REFERENCE AND SPECIFICATIONS Table provided for general use. NOTES: F-948R0...
  • Page 37 Document Control Revision Log: Date Revision Improvement(s) Description and Comments Team Member 11/2017 Initial Release...
  • Page 38 Equipment from Landoll Corporation is built to exacting standards ensured by ISO 9001 registration at all Landoll manufacturing facilities. Aerator PAT 10 Operator’s Manual Re-Order Part Number F-948R0 LANDOLL CORPORATION 1900 North Street Marysville, Kansas 66508 (785) 562-5381 800-428-5655 ~ WWW.LANDOLL.COM Copyright 2014.
