5.3 RF antenna installation
The RF antenna installation should be taken serious; a bad positioned antenna may reduce system parameters
dramatically.

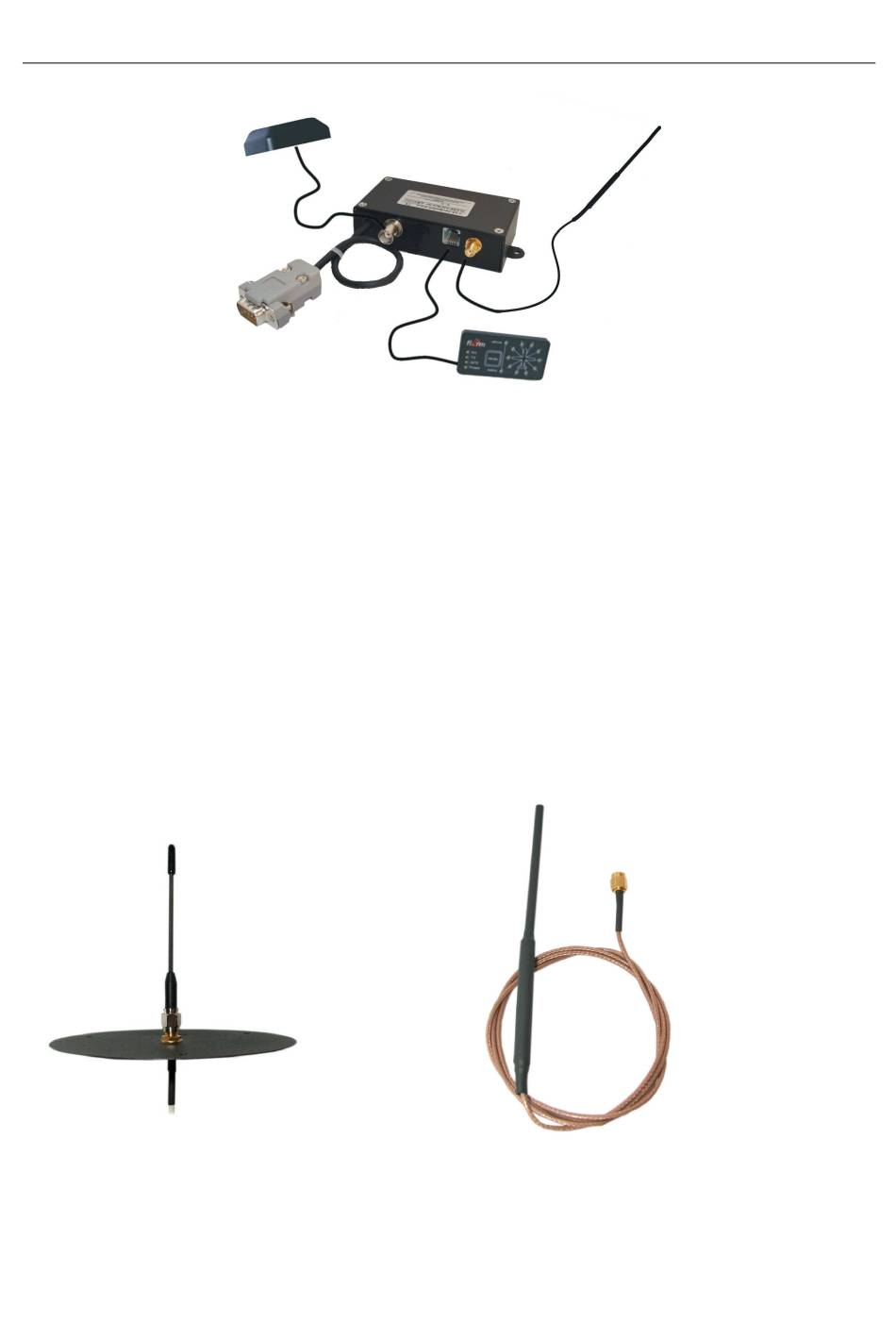

The antenna consists of three parts:
•
Radiator apr. 10 cm rubber coated
•
Back plane an aluminum plate having diameter 12 cm
•
Cable (60 cm) with SMA connector
The radiator should be vertical and the back plane horizontal. Use top positions on the instrument panel. Having no space
to install the antenna, use a dipole variant, available by LX Navigation or Flarm dealers.
λ/4 antenna
LX Navigation d.o.o.
Dipole antenna
Feb.2009
