WE6 Instructions for Use
K
E
For your safety: read and understand manual before use.
JURA Type 736

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WE6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jura WE6

Summary of Contents for Jura WE6

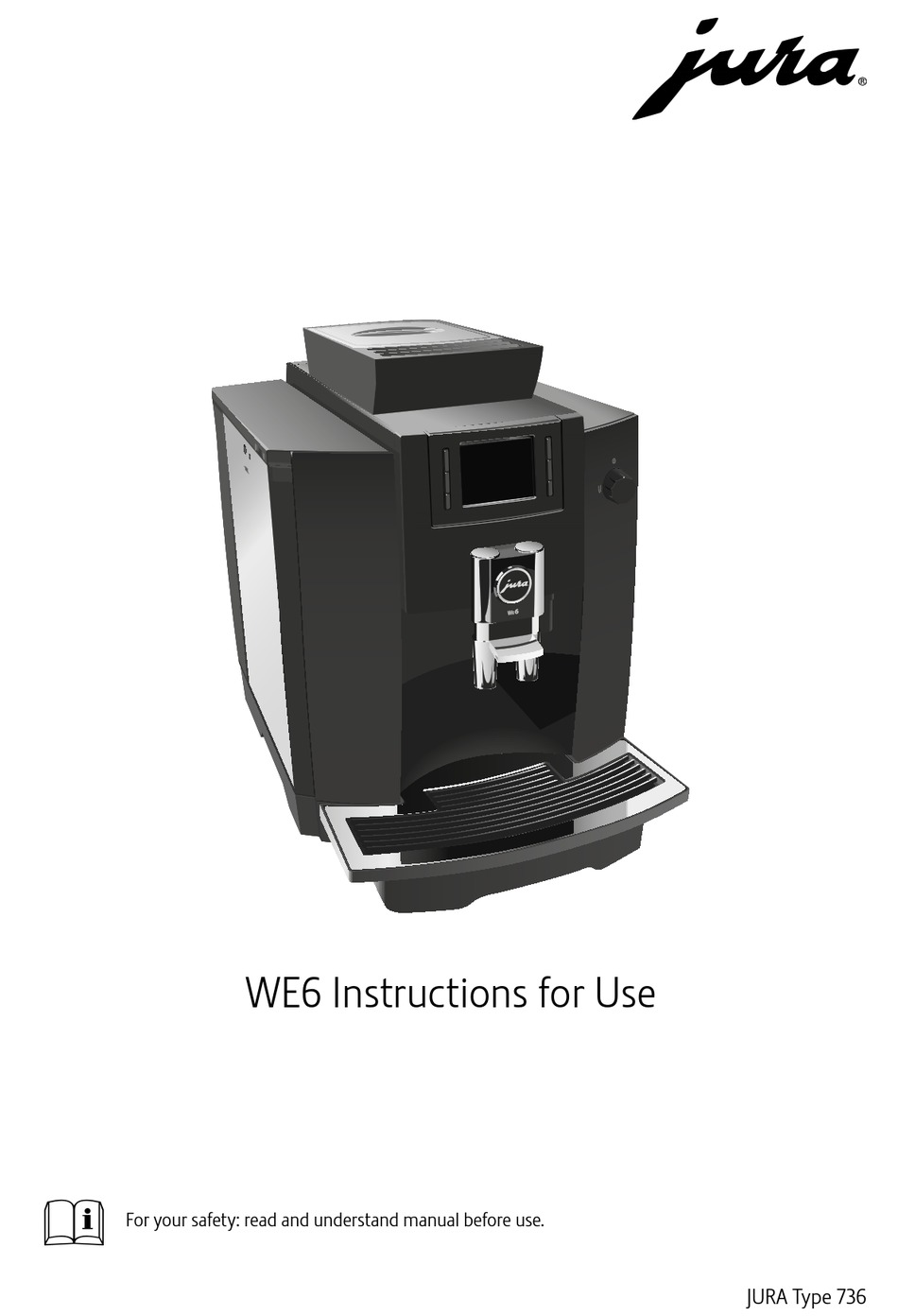

  • Page 1 WE6 Instructions for Use For your safety: read and understand manual before use. JURA Type 736...

  • Page 2: Table Of Contents

    Table of contents Your WE6 IMPORTANT SAFEGUARDS Control elements 1 Preparing and using for the first time JURA on the Internet ............................10 Setting up the machine ..........................10 Filling the bean container ...........................10 Determining the water hardness ......................10 First-time use ..............................11 Connect accessory (with wireless connection) ..................13...
  • Page 3 NOTICE is used to address practices not related to personal injury. Symbols used Prompt to take action. This symbol means that you are being prompted to perform some action. Information and tips to make it even easier to use your JURA. ‘Coffee’ Display message...

  • Page 4: Important Safeguards

    IMPORTANT SAFEGUARDS IMPORTANT SAFEGUARDS Follow the basic safety When using electrical appliances, basic safety precautions shall precautions always be followed, to reduce the risk of fire, electric shock, and/or injury to persons, including the following: Read all instructions. Do not touch hot surfaces. Use handles or knobs. To protect against fire, electric shock and injury to persons, do not immerse power cord, plugs, or body of machine in water or other liquid.
  • Page 5 Use for any other purpose will be deemed improper. JURA Elektroapparate AG cannot accept any responsibility for the consequences of improper use. People, including children, who...
  • Page 6 IMPORTANT SAFEGUARDS J CAUTION Any servicing other than cleaning and user maintenance shall be performed by an authorized service representative: Do not immerse base in water or try to disassemble. Do not put the appliance or any individual parts in the dishwasher.
  • Page 7 IMPORTANT SAFEGUARDS Never fill anything but fresh, cold and clean water into the water tank, except when decalcifying. Never use mineral or carbonated water. You can use tap water, bottled water, spring water and reverse osmosis water. Never do anything with the machine which is not described in these instructions.

  • Page 8: Control Elements

    Control elements Control elements J HOT J HOT Cover of filler funnel for cleaning tablet Cover cap for grinder adjustment switch Filler funnel for cleaning tablet Grinder adjustment switch Bean container with aroma preservation On/Off button Q cover Hot-water nozzle Water tank cover Height-adjustable coffee spout Cup plattform...
  • Page 9 Control elements Display Switch for hot water preparation Multi-function buttons (button function depends on what is shown in the display) Service socket for optional JURA Smart Connect...

  • Page 10: Preparing And Using For The First Time

    1 Preparing and using for the first time JURA on the Internet Visit us on the Internet (www.jura.com). You will find interesting and up-to-date information on your WE6 and on every aspect of coffee. Setting up the machine When setting up your JURA, please note the following: Place the JURA on a horizontal surface that is not sensitive to water.

  • Page 11: First-Time Use

    ‘Permanent settings in programming mode – Unit for amount of water’). Precondition: The bean container has been filled. T  Insert the power plug into a power socket. T  Press the On/Off button Q to switch the WE6 on. ‘Choose language’ E To display more languages, press the ‘ > ’...
  • Page 12 T  Turn the switch to the ° position. ‘System is filling’ ‘Empty drip tray’ T  Empty the drip tray and put it back into the machine. ‘Machine is rinsing’ The start screen is displayed. Your WE6 is ready for use.

  • Page 13: Connect Accessory (With Wireless Connection)

    1 Preparing and using for the first time Connect accessory (with You have the option of connecting your WE6 wirelessly to a wireless connection) compatible accessory. To do this, the JURA Smart Connect must be plugged into the service socket.

  • Page 14: Preparation

    – and impairs the taste. We therefore recommend prewarming the cups. The full coffee aroma can develop only in prewarmed cups. You can purchase a JURA cup warmer from your specialized dealer. You can make permanent settings for all products in programming mode (see Chapter 4 ‘Permanent settings in programming mode –...

  • Page 15: Espresso, Coffee And Other Specialty Coffees

    The preset amount of water for coffee flows into the cup. Preparation stops automatically. Your JURA is once more ready for use. Two specialty coffees To prepare two specialty coffees, press the appropriate preparation button twice (within approximately 1 second).

  • Page 16: Adjusting The Grinder

    ‘Saved’ appears briefly on the display. The set amount of water for one coffee is permanently stored. Your JURA is once more ready for use. E You can alter this setting at any time by repeating the above procedure. E You can also permanently set the amounts for all single products in programming mode (see Chapter 4 ‘Permanent...

  • Page 17: Hot Water

    T  Place a cup under the hot-water spout. T  Turn the switch to the x position. ‘Hot water’, the preset amount of water flows into the cup. Preparation stops automatically. ‘Switch close’ T  Turn the switch to the ° position. Your JURA is once more ready for use.

  • Page 18: Daily Operation

    Switching on the machine T  Place a receptacle under the coffee spout.     T  Press the On/Off button Q to switch the JURA on. ‘Welcome to JURA’ ‘Machine is rinsing’, the system is rinsed. The rinse stops automatically. The start screen is displayed. Your JURA is ready for use.

  • Page 19: Regular Maintenance

    Traces of coffee may stick to the top and bottom of the cup platform. If this happens, clean the cup platform. Switching off the When the JURA is switched off, the system is automatically rinsed if machine a specialty coffee has been prepared.

  • Page 20: Permanent Settings In Programming Mode

    ‘Choose language’ T Select your language. ‘Units’ T Select the unit for the amount of water. ‘Switch off after’ T Set the time after which the JURA should switch off automatically. ‘Water hardness’ T Adjust the water hardness. ‘5/5’ ‘Product counter’,...

  • Page 21: Adjusting The Product Settings

    4 Permanent settings in programming mode Adjusting the product settings J WARNING Hot coffee, hot steam and hot water can cause scalding. Scalding is a serious burn. T  Use extreme care when handling hot liquid or steam. T  Allow liquid to cool down before drinking. T ...

  • Page 22: Enable Or Disable Setting Of Cup Volume

    4 Permanent settings in programming mode T  Press the ‘Coffee’ button. ‘Coffee’ T  Press the ‘Coffee strength’ button. ‘Coffee’ and the coffee strength is displayed. T  Press the ‘ < ’ ‘ > ’ button to change the setting for the coffee strength. T  Press the ‘Save’...

  • Page 23: Enable Or Disable One-Off Settings

    4 Permanent settings in programming mode Enable or disable one-off In the program item ‘3/5’  / ‘One-off settings’ you can make the settings following setting: ‘Active’: One-off settings can be made during preparation (e.g. coffee strength or amount of water). ‘Inactive’: One-off settings cannot be made during preparation.

  • Page 24: Automatic Switch-Off

    T  Press the ‘’ button to exit programming mode. Setting the water The harder the water is, the more frequently the JURA needs to be hardness descaled. It is therefore important to set the water hardness accurately. The water hardness was set when the machine was first used. You can change this setting at any time.

  • Page 25: Unit For Amount Of Water

    4 Permanent settings in programming mode Unit for amount of water Example: Proceed as follows to change the unit for the amount of water from ‘ml’ to ‘oz’. T  Press the ‘ P ’ button. T  Press the ‘ > ’ button several times until ‘4/5’...
  • Page 26 4 Permanent settings in programming mode T  Press the ‘ > ’ button several times until ‘5/5’ is displayed. T  Press the ‘Day counter’ button. T  Press the ‘’ button. ‘Delete the day counter?’ T  Press the ‘Yes’ button. ‘Saved’ appears briefly on the display. ‘5/5’...

  • Page 27: Maintenance

    T  When using do not eat or drink. T  Keep maintenance products away from food, drink and animal food. T  Keep container tightly closed and dry. Keep in a cool place. Your JURA has the following integrated maintenance programs: Rinsing the machine (‘Rinse the coffee system’) Changing the filter (‘Filter’)

  • Page 28: Inserting/Changing The Filter

    5 Maintenance Inserting/changing the Your WE6 no longer has to be descaled if you are using the CLEARYL filter Pro Smart filter cartridge. Once the filter cartridge stops working (depending on the water hardness setting), the WE6 will prompt you to change the filter.
  • Page 29 E The cleaning program lasts approximately 20 minutes. E Do not interrupt the cleaning program. The quality of cleaning will be impaired if you do so. E JURA cleaning tablets are available from specialized dealers. Precondition: ‘Clean machine’ is displayed. T  Press the ‘ c ’...

  • Page 30: Descaling The Machine

    Cleaning is now complete. Descaling the machine The JURA builds up deposits of limescale over time and automati- cally prompts you to descale it when necessary. The degree of calci- fication depends on the hardness of your water.
  • Page 31 5 Maintenance E The descaling program lasts approximately 40 minutes. E JURA descaling tablets are available from specialized dealers. E If the descaling agent comes into contact with sensitive surfaces (e.g. marble), damage cannot be ruled out. Clean up any splashes immediately.

  • Page 32: Cleaning The Bean Container

    5 Maintenance T  Empty the receptacle and place it under the hot-water nozzle and the coffee spout. T  Remove the water tank and rinse it thoroughly. T  Fill the water tank with fresh, cold water and reinsert the tank. ‘Switch open’ T ...

  • Page 33: Descaling The Water Tank

    T  Remove the water tank. T  If you use a CLEARYL Pro Smart filter cartridge, remove this. T  Completely fill the water tank and dissolve 3 JURA descaling tablets in it. T  Leave the water tank with the descaling solution for several hours (e.g.

  • Page 34: Display Messages

    (see Chapter 5 ‘Maintenance – the display lights Changing the filter’). up red. ‘Clean machine’ The JURA is prompting you to T Perform cleaning (see Chapter 5 clean it. ‘Maintenance – Cleaning the machine’). ‘Decalcify The JURA is prompting you to T Perform descaling (see Chapter 5 machine’...

  • Page 35: Troubleshooting

    Q. Contact customer support in played. your country (see Chapter 11 ‘JURA contact details / Legal information’). E If you were unable to solve the problem, contact customer support in your country (see Chapter 11 ‘JURA contact details / Legal information’).

  • Page 36: Transport And Environmentally Friendly Disposal

    8 Transport and environmentally friendly disposal 8 Transport and environmentally friendly disposal Transport / Emptying the Keep the packaging for your JURA. It should be used to protect the system machine during transport. In order to protect the JURA from frost during transport, the system must be emptied.

  • Page 37: Technical Data

    9 Technical data 9 Technical data Voltage 120 V ~, 60 Hz Power 1450 W Ambient conditions Humidity max. 80 % Ambient temperature 10–35 °C Conformity mark Pump pressure static, max. 15 bar Holding capacity of water tank 105 oz (3 l) (without filter) Holding capacity of bean container 17.6 oz (500 g) Holding capacity of coffee grounds max.

  • Page 38: Index

    Contact details 40 Important safeguards Cover Safety 4 Filler funnel for cleaning tablet 8 Internet 10 Water tank 8 Cup platform 8 Customer support 40 JURA Contact details 40 Internet 10 Daily maintenance 18 Descaling Machine 30 Language 25 Water tank 33...
  • Page 39 10 Index Machine Querying information 25 Cleaning 28 Daily maintenance 18 Regular maintenance 19 Descaling 30 Rinsing Regular maintenance 19 Machine 27 Rinsing 27 Ristretto 15 Setting up 10 Two ristretti 15 Switching off 19 Switching on 18 Safety Maintenance 27 Important safeguards 4 Daily maintenance 18 Settings...

  • Page 40: Jura Contact Details / Legal Information

    J74418/WE6/US-en/20200228 11 JURA contact details / Legal information 11 JURA contact details / Legal information JURA Elektroapparate AG Kaffeeweltstrasse 10 CH-4626 Niederbuchsiten Switzerland Canada: FAEMA USA: JURA Inc. Customer Service Phone 1-800-220-5701 1-(855)-544-8600 E-Mail info@us.jura.com info@juracanada.ca Opening Hours (EST) Mon – Thu 9 am – 9 pm, Fri 9 am –...
