GROM Audio VOL01 Manual

Interface installation into volvo 01-06 using vehicle specific harness and posi-tap clips
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

GROM Interface Installation into Volvo 01-06 using VOL01 vehicle

Preparation

1. It is recommended to disconnect the car battery before performing the installation.
Turn off the car engine and remove the key from the ignition.
2. Carefully remove the radio from the dash.

Installation

3. Locate the vehicle specific cable (VOL01) and blue colored Posi-Tap clips that came with your adapter (picture 1)
4. Connect VOL01 harness to the 8-PIN extension port at the back of the radio.
Note: If the port is occupied with the different factory harness – disconnect this harness; insert 8-pin connector to the
slot at the back of the stereo, reconnect the disconnected factory harness back to the stereo using the female end of
the VOL01 harness.
If the port at the back of the stereo is empty – leave the female end of the VOL01 harness hang free – do not connect
it to anything.
|
page
1
specific harness and Posi-Tap clips

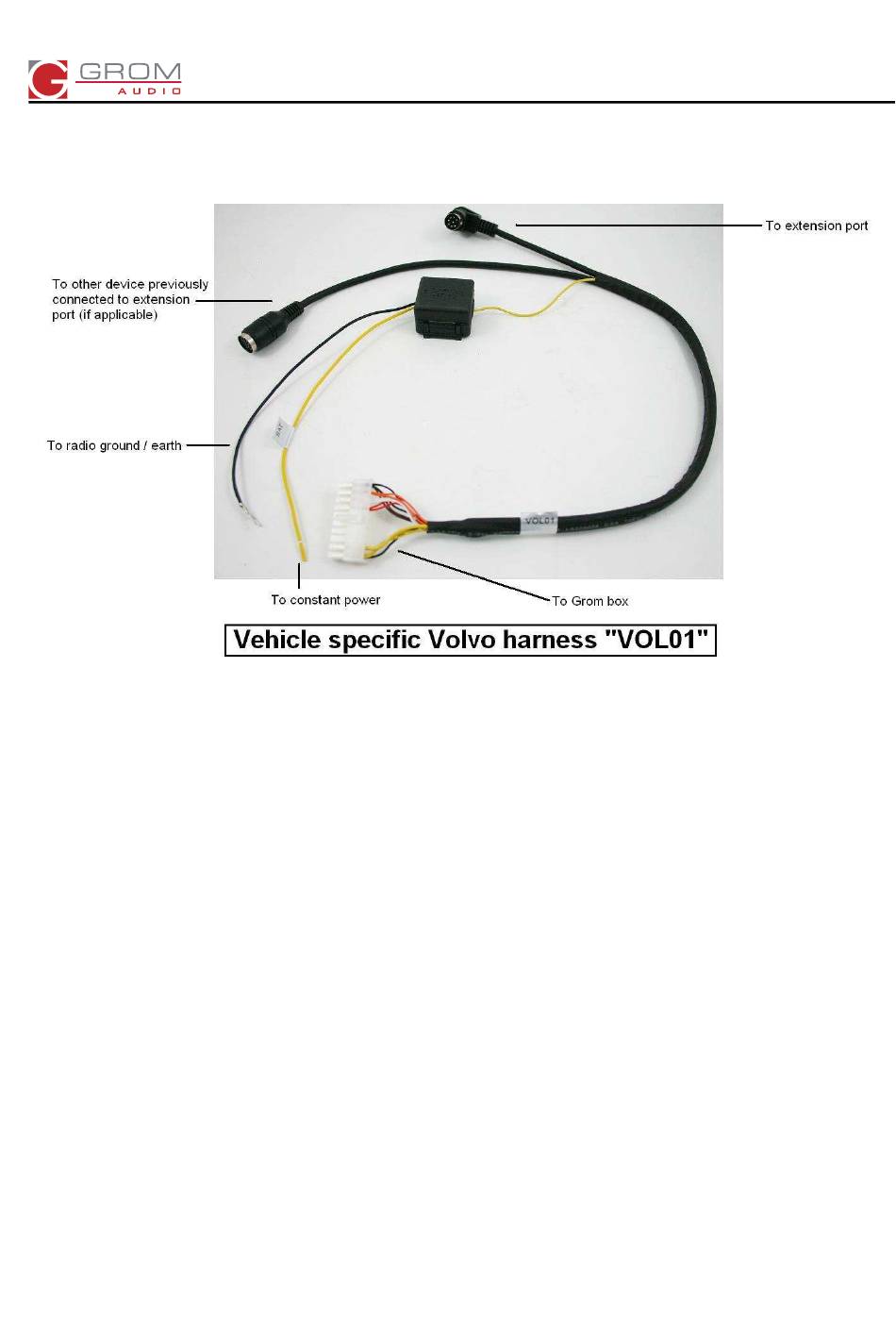

Picture 1: VOL01 vehicle specific harness
VOL01
1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VOL01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GROM Audio VOL01

Summary of Contents for GROM Audio VOL01

  • Page 1 VOL01 harness. If the port at the back of the stereo is empty – leave the female end of the VOL01 harness hang free – do not connect it to anything.
  • Page 2 VOL01 Picture 2: Back of the Volvo stereo 5. Locate the main radio harness (same as shown on the picture 2), locate the wire that is coming from left top corner – constant POWER wire of the car stereo main harness (picture 3).
  • Page 3 7. Using blue colored Posi-Tap clip provided with your package, connect the constant POWER wire that comes from the main stereo harness (picture 2) to the yellow 12V wire on your VOL01 harness). Refer to scheme 4 below and make sure to create a secure connection between those wires.
  • Page 4 VOL01 11. Test the unit operation BEFORE mounting the stereo back into the dashboard. Cycle the ignition and press the SOURCE button until the CD Changer mode is chosen. Stereo should show CD1 Track 1 on a display. If it is not - see Troubleshooting section.
