Wi-Fi Rf; Bluetooth Rf - mangOH Yellow Hardware Architecture Manual

WIFI_ANT_CNTR
Wi-Fi/BT Module
(U300)
RF_ANT
SDIO
WL_HOST_WAKE
WL_REG_ON
BT_DEV_WAKE
BT_HOST_WAKE
UART_BT
BT_UART

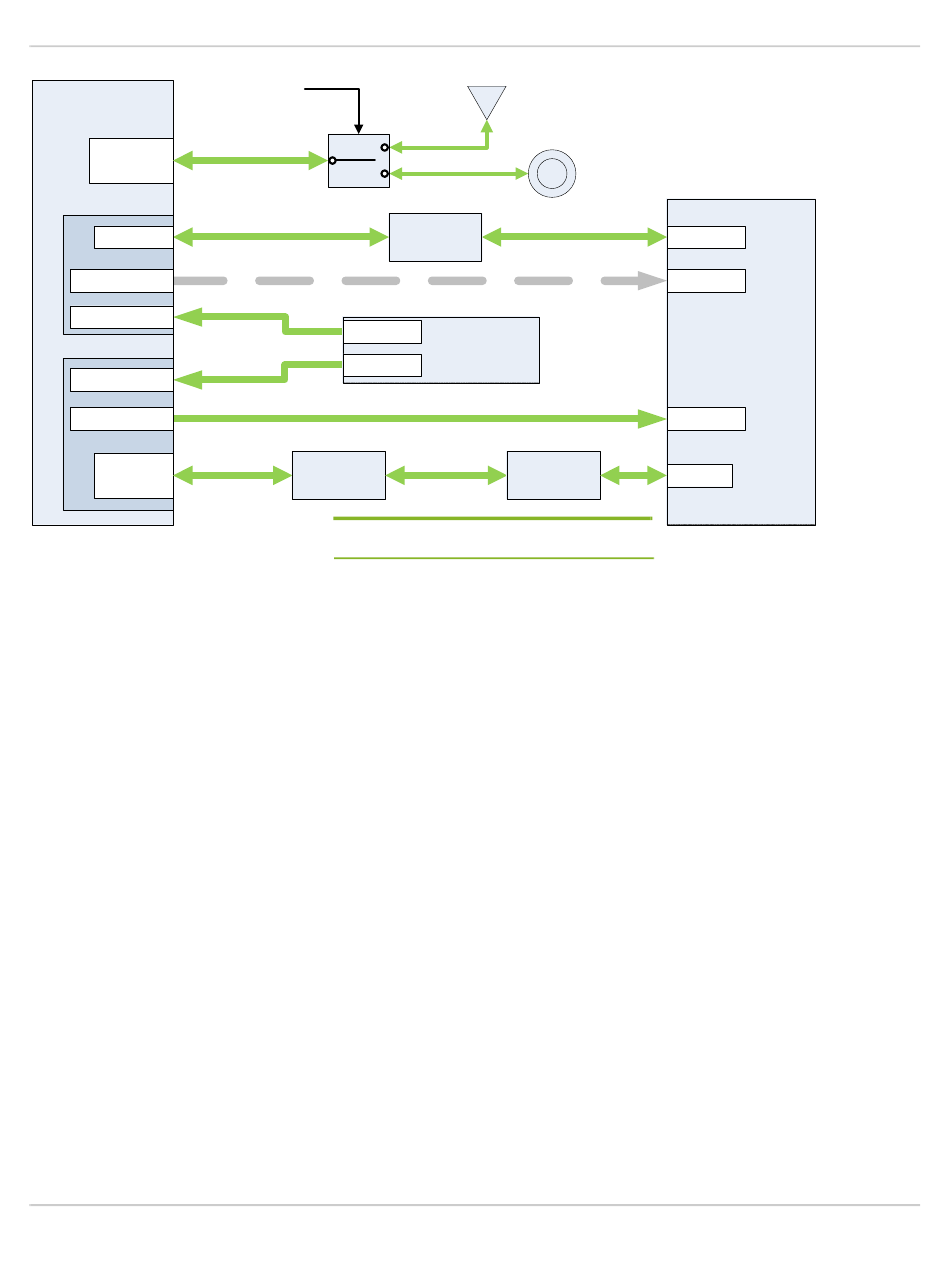

Figure 2-24: Wi-Fi+BT Module Connections

2.5.1 Wi-Fi RF

The mangOH Yellow supports 2.4GHz Wi-Fi (802.11b/g/n).
For full Wi-Fi 2.4 GHz RF receiver/transmitter specifications, refer to the Cypress CYW43364 datasheet or the
WM-BN-CYW-48_REF1_Module Datasheet_V1.1 from USI. (The USI chip is a SIP package that contains the
CYW43364 (Wi-Fi) and CYW20719 (Bluetooth) chips.)

2.5.2 Bluetooth RF

The mangOH Yellow supports 2.4GHz BLE (Bluetooth Low Energy).
For full Bluetooth 2.4 GHz RF receiver/transmitter specifications, refer to the Cypress CYW20719 datasheet or the
WM-BN-CYW-48_REF1_Module Datasheet_V1.1 from USI. (The USI chip is a SIP package that contains the
CYW43364 (Wi-Fi) and CYW20719 (Bluetooth) chips.).
