Uart2; Uim; Usb 2.0 - mangOH Yellow Hardware Architecture Manual

CF3 UART1

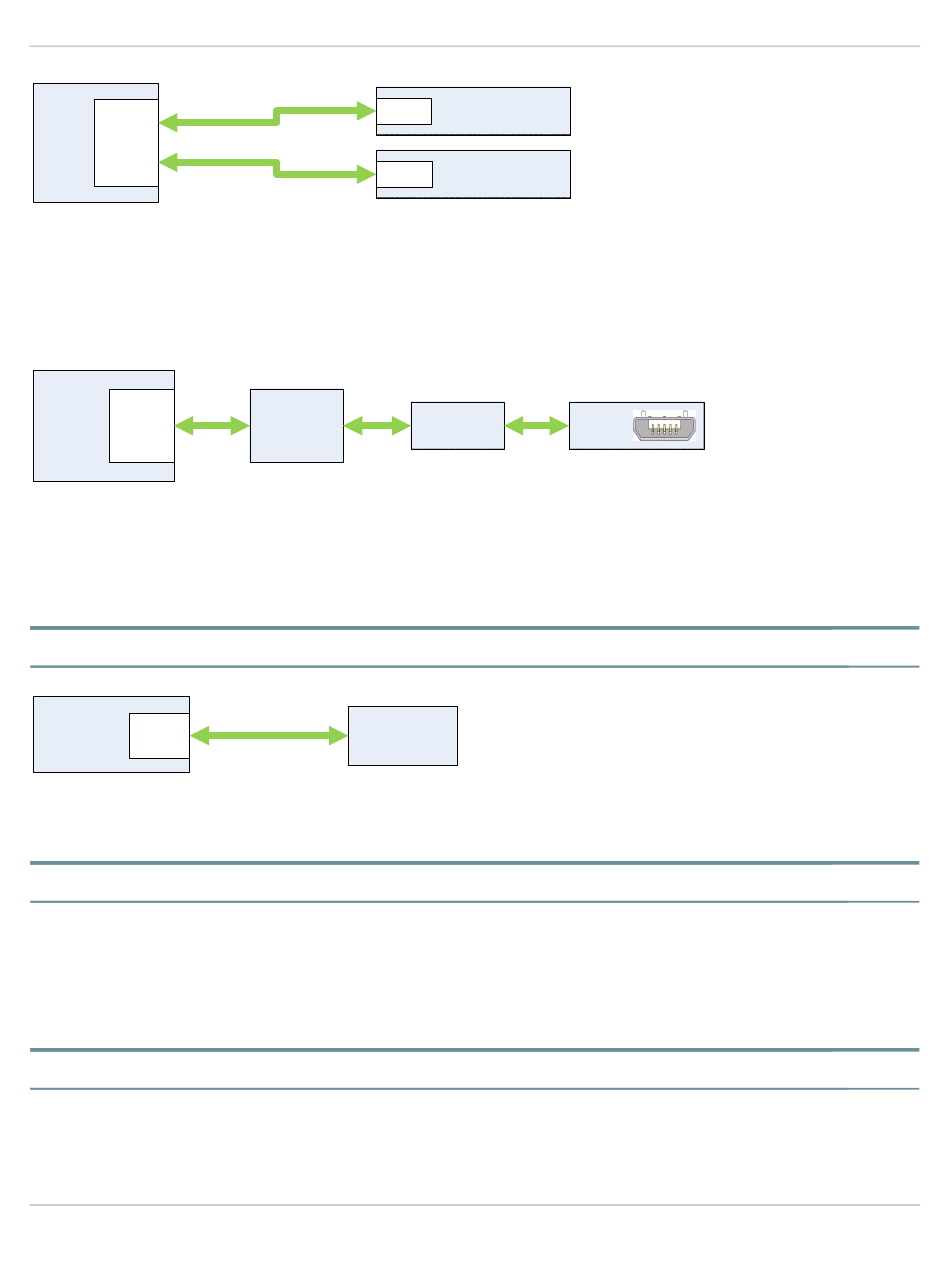

Figure 2-20: UART1 Configuration

2.4.21 UART2

The mangOH Yellow supports the CF3 module's UART2 signals, which connect to the Console USB connector
(CN800), as shown in Figure
CF3 UART2
Figure 2-21: UART2 Configuration

2.4.22 UIM

The mangOH Yellow supports the CF3 module's UIM1 interface, as shown in
Note: Throughout this document, 'UIM' is used to refer to UIM, USIM, SIM, UICC.
CF3
UIM1
Figure 2-22: UIM1 Interface Configuration
The CF3 module's UIM1 signals connect to the micro-SIM holder (CN602).
Note: The CF3 module's UIM1_DET signal indicates when a SIM is present in the holder.

2.4.23 USB 2.0

The CF3 module's USB signal connects directly to the mangOH Yellow's micro-USB connector (CN802) as shown
in Figure 2-23, for control by a connected computer.
Note: The micro-USB connector also acts as a power source, if selected. See
The USB 2.0 interface configuration can be modified as detailed in
Rev 2 Oct.19
UART
(4 pins )
(2 pins )
UART
2-21.
USB-UART
Level shifter
SIM Holder
(CN602)
31
IoT Connector #0
(CN601 , slot IOT0)
Expansion Connector
(CN805 )
Console
FTDI USB
Power Management on page
Table 2-8.
Hardware
Figure 2-22.
37.
