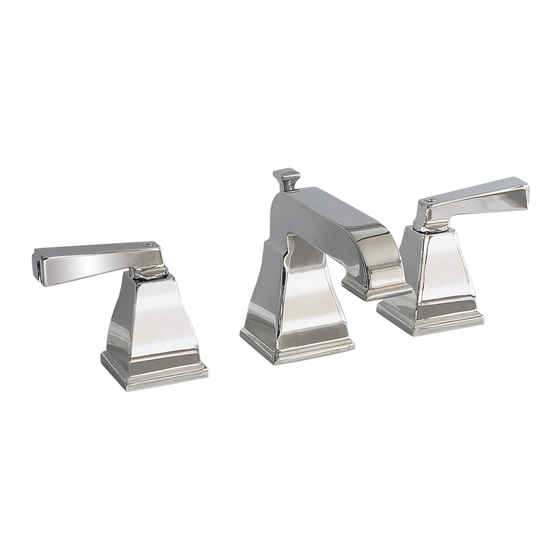

American Standard Townsquare 2555.801 Installation Instructions

TOWNSQUARE
SPREAD LAVATORY FAUCETS
with
EverClean™ Finish
Congratulations on purchasing your American Standard faucet
with EverClean finish found only on American Standard faucets.
EverClean Finish
• One wipe effortlessly removes spots
• Eliminates the need for cleaners and scrubbing
• Permanent surface protectant remains beautiful
for the life of the faucet
• EverClean™ available on: Polished Chrome, Satin Nickel,
Stainless Steel, Polished Brass (or any combination of these finishes)
To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin.

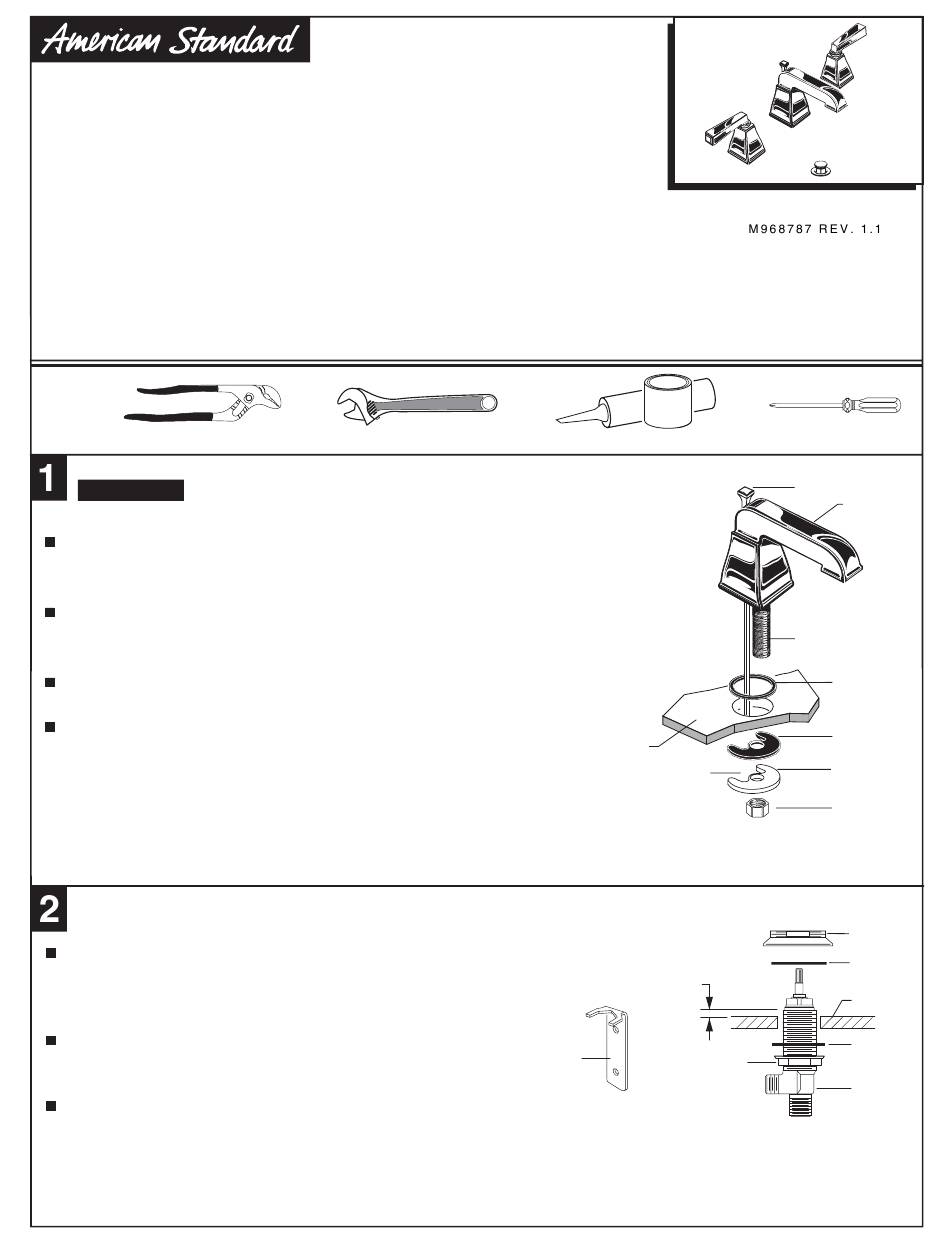

TOOLS REQUIRED

Channel Locks

SPOUT ASSEMBLY

Turn off hot and cold water
CAUTION
supplies before beginning.
Insert SPOUT SHANK (1) through center hole of SINK (2).
Make sure RING WASHER (3) is properly positioned into
SPOUT BASE.
Assemble RUBBER WASHER (4), BRASS WASHER (5)
and LOCKNUT (6) onto threads of SPOUT SHANK (1)
from underside of SINK (2).
Insert LIFT ROD (7) through SPOUT (8)
and slot of BRASS WASHER (5).
Align SPOUT (8) and tighten LOCKNUT (6).
Be sure slot in BRASS WASHER (5) is
positioned to the rear as shown.

VALVE INSTALLATION

Insert VALVE BODY (1) through hole from underside
of SINK (2). Threads of VALVE BODY (1) should extend
at least 5/16 inch above SINK (2) top. If necessary,
adjust LOCKNUT (3). Make sure RUBBER WASHER (6)
is installed.
Place RUBBER RING (4) into DECK ADAPTER (5) and
screw DECK ADAPTER (5) onto VALVE BODY (1) until
snug against internal stop.
Set VALVE BODIES (1,1A) so that their outlets are
facing toward center of sink and then tighten LOCKNUT
(3) using WRENCH (7) supplied with faucet.
Installation
Instructions
2555.801
Adjustable Wrench
7
Certified to comply with ANSI A112.18.1M
Plumbers' Putty or Caulking
2
SLOT
5/16'' MIN.
3
Phillips Screwdriver
7
8
1
3
4
5
6
5
4
2
6
1
