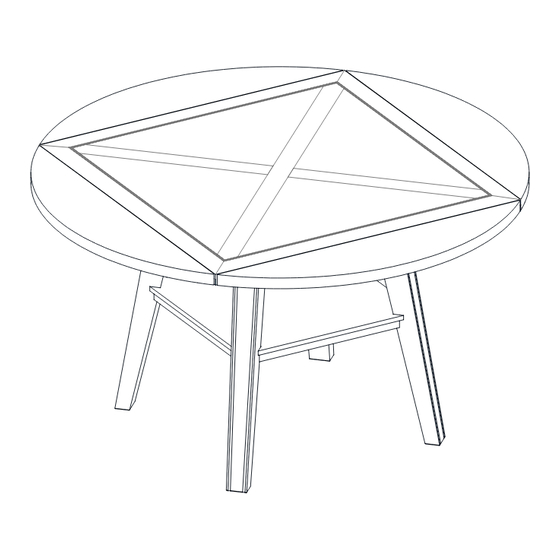

7-piece counter-height round drop-leaf dining set

Advertisement

7-piece Counter-Height Round Drop-leaf
Dining Set
ITM. / ART. 2000708
Model # CSC7PCHD-1N
IMPORTANT,
RETAIN
FOR
FUTURE
REFERENCE: READ CAREFULLY
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-877-494-2536 (English, French and Spanish)
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday to Friday
(In U.S. and Canada only)
Or visit our website www.baysidefurnishings.com
For customer service outside of North America, please e-mail your request to
parts@baysidefurnishings.com
Date 2018-04-09 Rev. 0001-A Factory: GRWOVI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSC7PCHD-1N and is the answer not in the manual?

Questions and answers

Summary of Contents for Bayside Furnishings CSC7PCHD-1N

  • Page 1 7-piece Counter-Height Round Drop-leaf Dining Set ITM. / ART. 2000708 Model # CSC7PCHD-1N ASSEMBLY INSTRUCTIONS IMPORTANT, RETAIN FUTURE REFERENCE: READ CAREFULLY If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the store where it was purchased.
  • Page 2 G E N E R A L I N F O R M A T I O N A N D T I P S 1. This product is for indoor domestic use only. 2. Please read the Assembly Instructions prior to assembling this product. 3.
  • Page 3 Parts and Hardware List PART # PART DESCRIPTION PART FIGURE QUANTITY Table Top Table Leg Shelf Panel Bolt 8+1 extra Lock Washer 8+1 extra Flat Washer 8+1 extra Hex-key Wrench Tools required: Hex-key wrench (included).
  • Page 4 Assembly Instructions 1. Position the table top (A) upside down on a level and protective surface. 2. Align and attach four legs (B) to the apron corners of the table top (A) by using four bolts (AA) with lock washers (BB) and flat washers (CC) through the corner blocks and screw into the threaded inserts in legs. DO NOT fully tighten the bolts until after the shelf is installed in step 3.
  • Page 5 Assembly Instructions 4. Ask for assistance to lift the unit upright and position it at the desired location. Ensure the table leaves holders are in place when turning the table upright to prevent leave from swing open. 5. If necessary, adjust the pre-attached floor levelers at the bottom of legs (B) to level the unit. 6.
  • Page 6 Assembly Instructions 8. To fold the side leaves, push the support bars inward to drop down the desired leaf and fold to the underside of table top (A). Rotate the leaf holders to fix the leaf into place.
  • Page 7 Should this product be defective in workmanship or materials or fail under normal use, we will repair or ® replace it for up to one (1) year from date of purchase. Every Bayside Furnishings product is designed to meet your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
