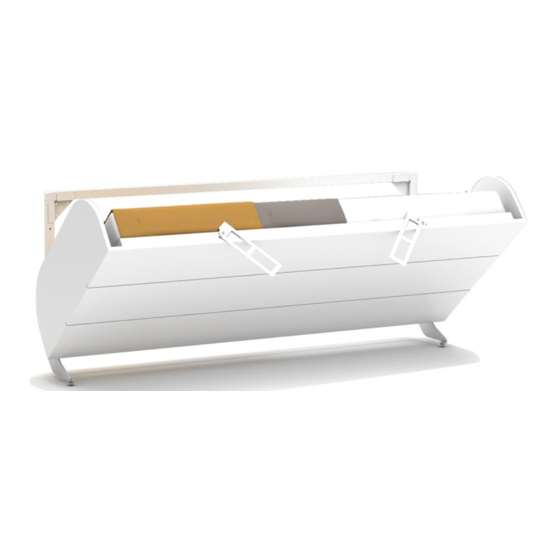

- Page 1 A 751- SIMPLE TWIN 100 CM min. Technical Service min. End User VIDEO link Assembly Instructions...
- Page 2 Track Title (inch) (mm) Piece Piece Thickness Length Width Thick Height Most 0,71 40,08 13,58 1018 0,71 84,17 13,39 2138 0,71 84,17 13,39 2138 0,71 84,17 13,39 2138 Accessories List MNX 02 MNG - 01 KVL 01 TAP - 01 12/ piece 32/ piece 14 / piece...
- Page 3 SC-101 3 / piece KOR -B LTA - 01 AL - 01 (4MM) AL - 02 (5MM) 1 / piece 14 / piece 1 / piece 1 / piece Page 2...
- Page 4 STEP 1 KBY - 02 SYS - 01 VIDEO BKA - 01 link Page 3...
- Page 5 ATTENTION!!! Should be mounted to strong walls such as concrete,brick or ytong. T his product must not assembly to drywalls. STEP 2 First of all should be xed from one point, after that balance should be controlled and connection points should be marked.
- Page 6 STEP 4 Ø 10 mm / 0,254 nch STEP 5 DD - 01 x 11 VIDEO link Page 5...
- Page 7 FİRST LOCATE THE STUDS BY USİNG ''STUD STEP 6 FİNDER'' İN THE WALL AND DRİLL İT SC - 98 TFC - 01 X 3 SC - 101 X 3 TFC - 01 X 6 SC - 101 DD - 01 X 2 TFC - 01 X 2 SUPPLY DRYWALL FASTENERS APPROPPRİATE VIDEO...
- Page 8 STEP 7 KVL 01 MNG - 01 MNX - 03 210° 210° MNG - 01 x 5 MNG - 01 x 10 KVL - 01 x 4 MNX - 03 x 10 210° KVL - 01 x 4 VIDEO MNG - 01 x 5 link Page 7...
- Page 9 210° STEP 8 STEP 9 210° KVL 01 MNG - 01 MNG - 01 x 6 KVL - 01 x 3 VIDEO link Page 8...
- Page 10 LTA - 01 x 14 STEP 10 SKT - 01 Install plastic corners and metal joints without gaps CTM - 01 AL - 01 VIDEO link Page 9...
- Page 11 STEP 11 Assemble the brackets over the VTB - 02 x 20 places shown over H,K proles SC-110 x 10 69 mm 69 mm VTB - 02 x 8 Assemble the brackets over the places shown over G-L,G-R proles VIDEO SC-110 x 4 link Page 10...
- Page 12 STEP 12 Unscrew the Screws STEP 13 LTA - 01 x 14 VIDEO link Page 11...
- Page 13 STEP 14 AMR - 03 SG - 01 AMR - 03 STEP 15 MNX - 02 x 12 MNX - 02 VIDEO link Page 12...
- Page 14 STEP 16 YSB - 01 KOR - B PL - 04 AL - 02 IM - 02 x 2 STEP 17 SC - 78 SC - 78 SC - 78 VIDEO link Page 13...
- Page 15 STEP 18 CTM - 04 AL - 01 CTM - 04 VIDEO AL - 01 SC - 79 link Page 14...
- Page 16 STEP 19 AMR - 03 SG - 01 VIDEO AMR - 03 link Page 15...
- Page 17 STEP 20 MNG - 01 X 12 210° VIDEO link Page 16...
- Page 18 STEP 21 KCE - 01 X 4 SC - 78 TAP - 01 VTD - 02 x 4 VIDEO link Page 17...
- Page 19 STEP 22 2. BED OPEN 1. BED CLOSED VIDEO link Page 18...
- Page 20 ATTENTION / HOW TO / READ ME / OWNER'S GUIDE 1. Unless an tem s free stand ng, when mount ng on a regular drywall, furn ture must be fastened to wood or metal studs. Sol d walls made of br ck, concrete or s m lar mater als are also acceptable.
- Page 21 10.For Bunk Beds: a.Always use prov ded ladder when access ng top bunk. b.Be slow, careful and aware of surround ngs when open ng top bunk. c.Do not horseplay. Beds are to be slept on only. Page 20 Page 22...
- Page 22 www.mult mobeds.com...
