- Page 1 KMC2 Multi-Media Receiver KMC2 Owner’s Manual | English Manual del Propietario | Español KMC2 Receptor Multi-Media Benutzerhandbuch | Deutsch KMC2 Multi-Media-Receiver Manuel d’utilisation | Française KMC2 Multi-Media Receiver...
- Page 2 Le dispositif rencontre l’exemption des limites courantes d’évaluation dans la section 2.5 de RSS 102 et la conformité à l’exposition de RSS-102 rf, utilisateurs peut obtenir l’information canadienne sur l’exposition et la conformité de rf. FCC ID: RGR-KMC2 IC ID: 11078A-KMC2...
- Page 3 print mounting hole cutout template at 8.5”x11” in “Portrait” and “Actual Size” mounting hole cutout template: 3 inches, 7.62 cm gabarit de montage trou découpé: 3 pouces, 7,62 cm plantilla de recorte del agujero de montaje: 3 pulgadas, 7.62 cm montageloch ausschnittschablone : 3 Zoll, 7,62 cm...
- Page 4 print mounting hole cutout template at 8.5”x11” in “Portrait” and “Actual Size” mounting hole cutout template: 3 inches, 7.62 cm gabarit de montage trou découpé: 3 pouces, 7,62 cm plantilla de recorte del agujero de montaje: 3 pulgadas, 7.62 cm montageloch ausschnittschablone : 3 Zoll, 7,62 cm...
-
Page 5: Table Of Contents
KMC2 OWNER’S MANUAL Contents Specs Overview Installation Operation Troubleshooting Warranty... -
Page 6: Specs
Input Sensitivity 500mV Bluetooth Range [ft] With a KICKER KXM amplifi er, a pair of KICKER USB Playback MP3, WMA, FLAC, WAV KM speakers, and a few KICKER cables, you’re looking at a full system upgrade that will... -

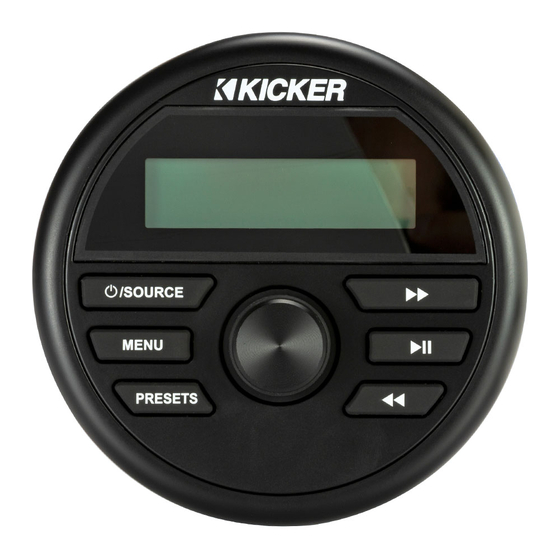

Page 7: Overview
OVERVIEW NOTE: use short and long presses to operate. Some input sources do not support all functions. •change volume/value (scroll) •digital display •next/previous (scroll) •select (press) •enter audio settings menu (press & hold) •seek up (press) •next track (press) •fast forward/manual tuning (press & hold) /SOURCE •power on/off (press &... -
Page 8: Installation
INSTALLATION LINE OUT wired remote (sold separately) AUX IN fuse 15A ATM USB input USB charging radio antenna positive +12V (switched) negative ground remote auto-turn on output (to amplifi ers) battery illumination/dimmer rear rear front front ground (day/night mode when right left right... - Page 9 Attach threaded bolts to the back of the KMC2 Position the mounting bracket over the bolts. Place washers over bolts and securely attach nuts. Depending on the size of your mounting baffl e, you may need to snap off one or more of the metal tabs from the mounting bracket to...
-
Page 10: Operation
While in pairing mode, the Bluetooth icon will fl ash. When successfully paired, the Bluetooth icon will become solid. The USB input source is only available when there is a USB device connected. The KMC2 will automatically switch to USB input when a USB device is connected and detected, with a USB icon. - Page 11 Audio Settings Press and hold the VOLUME KNOB to enter the Audio Settings menu. The available audio settings are: Bass, Treble, Balance, Fader, and EQ. Use the VOLUME KNOB to change the available values for each setting, then press it to confi rm the settings. Changes to the Bass, Treble, and EQ settings are applied to the RCA outputs.
-
Page 12: Troubleshooting
TROUBLESHOOTING If your KMC2 does not appear to be working, check the obvious things fi rst such as blown fuses, poor or incorrect wiring connections etc. If you’re using an amplifi er, check for incorrect setting of crossover switches and gain controls etc. -
Page 13: Warranty
HOW LONG WILL IT TAKE? KICKER strives to maintain a goal of one week turnaround for all electronics (amplifi ers, crossovers, equalizers, etc.) returns. Delays may be incurred if lack of replacement inventory or parts is encountered. Failure to follow these steps may void your warranty. Any questions can be directed to the KICKER Customer Service Department at (405) 624-8510. - Page 14 Sea precavido cuando controle el volumen. La frase “combustible para vivir la vida Livin’ Loud™ a todo volumen” se refi ere al entusiasmo por la vida que la marca Kicker de estéreos de automóvil representa y a la recomendación a nuestros clientes de que vivan lo mejor posible (“a todo volumen”) en todo sentido.
- Page 15 ©2016 Stillwater Designs...
