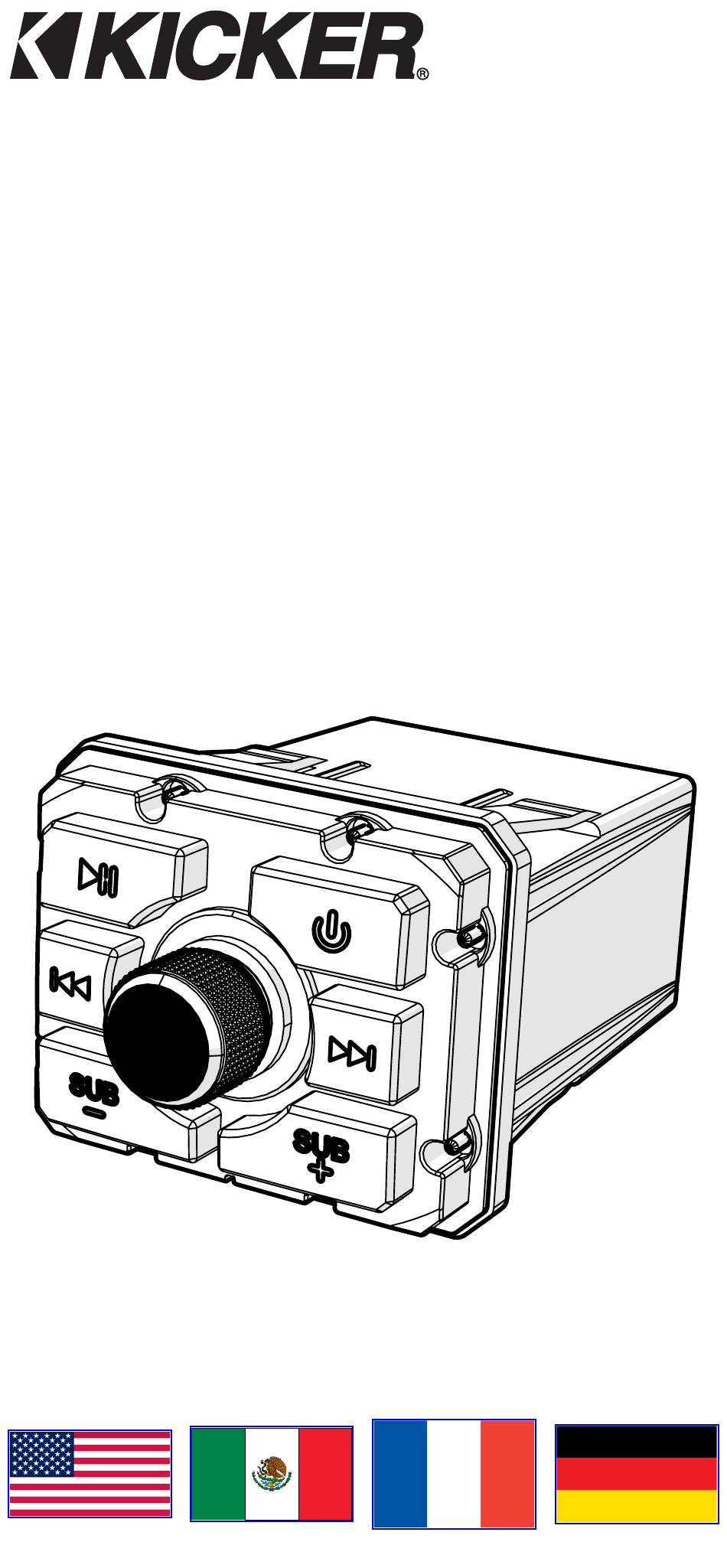

- Page 1 Owner’s Manual Manual del Propietario Manuel d’utilisation Benutzerhandbuch KICKER KBTR PowerSports Bluetooth Receiver ® Receptor Bluetooth® para deportes de motor Récepteur Bluetooth® PowerSports PowerSports Bluetooth®-Empfänger select language seleccione el idioma choisir la langue sprache auswählen...
- Page 2 Le dispositif rencontre l’exemption des limites courantes d’évaluation dans la section 2.5 de RSS 102 et la conformité à l’exposition de RSS-102 rf, utilisateurs peut obtenir l’information canadienne sur l’exposition et la conformité de rf. FCC ID: RGR-KBTR IC ID: 11078A-KBTR...
-
Page 3: Table Of Contents
Contents Overview ......2 Specifications ......3 Installation ...... 4 Power Wiring ......4 Audio Wiring ......5 Mounting ....... 6 Operation ....... 7 Status LEDs ......7 Pairing ........8 Troubleshooting ....9 Warranty ...... 10 Int. Warranty | Garantía | Garantie ....... -
Page 4: Overview
USB audio input for your flash drive loaded up with music, and AUX input for audio devices with line out; the KBTR has you covered. You need a dedicated subwoofer output, line output and remote turn-on output to effortlessly expand your Powersports audio system in any conceivable form or fashion;... -
Page 5: Specifications
To get the best performance from your new KICKER speakers, we recommend using genuine KICKER accessories and wiring. Pro Tip: You’re a KICKER amplifier and a few cables away from a full system upgrade that will dominate any factory system! KICKER line of amplifiers make it easy to upgrade to solid bass with your existing or stock source unit. -
Page 6: Installation
Turn-on wire to the remote terminal of the amplifier. 5. Install a 5A Mini-ATC fuse on the red +12V Constant Power wire of the KBTR wiring harness. 5A Mini-ATC Fuse Holder 6. Connect the Wiring Pigtail to the Wiring Harness... -
Page 7: Audio Wiring
Audio Wiring 1. Connect the Line Out to your amplifer or other audio device. 2. Connect the Subwoofer Output to your amplifier 3. Connect a USB flash drive or other compatible device to the USB Input to play audio files stored on a disk drive. -
Page 8: Mounting
Page): Height: 1.4 in., 37mm Width: 2 in., 52mm Push the KBTR into the cutout, depressing the tabs on the top and bottom, until the KBTR is secured in the mounting hole cutout (you may not hear a click). English... -
Page 9: Operation
Operation Status LEDs Blue Source is AUX/USB, or in Standby Mode Solid Bluetooth Mode - Connected Blinking Bluetooth Mode - Pairing Source is Bluetooth/USB, or device is in Standby Mode Solid AUX Input Mode Blink LED Brightness at Min/Max Green Source is Bluetooth/AUX, or in Standby Mode Solid USB Input Mode... -
Page 10: Pairing
Mode or change the input source. Press and hold the Center Wheel/Button to enter Bluetooth pairing mode. The LED will begin to blink blue. Select ‘51KBTR KICKER’ from your list of Bluetooth devices. Once successfully paired, the LED will turn solid blue. Short Press - Change Input Source... -
Page 11: Troubleshooting
Troubleshooting If the KBTR becomes frozen or stuck, does not appear to be working, check the obvious things first such as blown fuses, poor or incorrect wiring connections, etc. No power? With a Volt Ohm Meter (VOM) check the following: Π+12 volt power terminal (should read +12V to +16V) ... -
Page 12: Warranty
Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction during the warranty period, KICKER will repair or replace (at its discretion) the defective merchandise with equivalent merchandise. Warranty replacements may have cosmetic scratches and blemishes. - Page 13 Service performed by anyone other than KICKER HOW LONG WILL IT TAKE? KICKER strives to maintain a goal of one week turnaround for all electronics (amplifiers, crossovers, equalizers, etc.) & acoustic returns. Delays may be incurred if lack of replacement inventory or parts is encountered.
- Page 14 KICKER car stereos and the fact that we encourage our customers to strive for the best (“ Livin ’Loud”) in all aspects of their lives. KICKER loudspeakers and amplifiers are leaders in the mobile audio system market and are therefore the “fuel” for our customers’ car stereo experience.
