Summary of Contents for Electrohome RR75

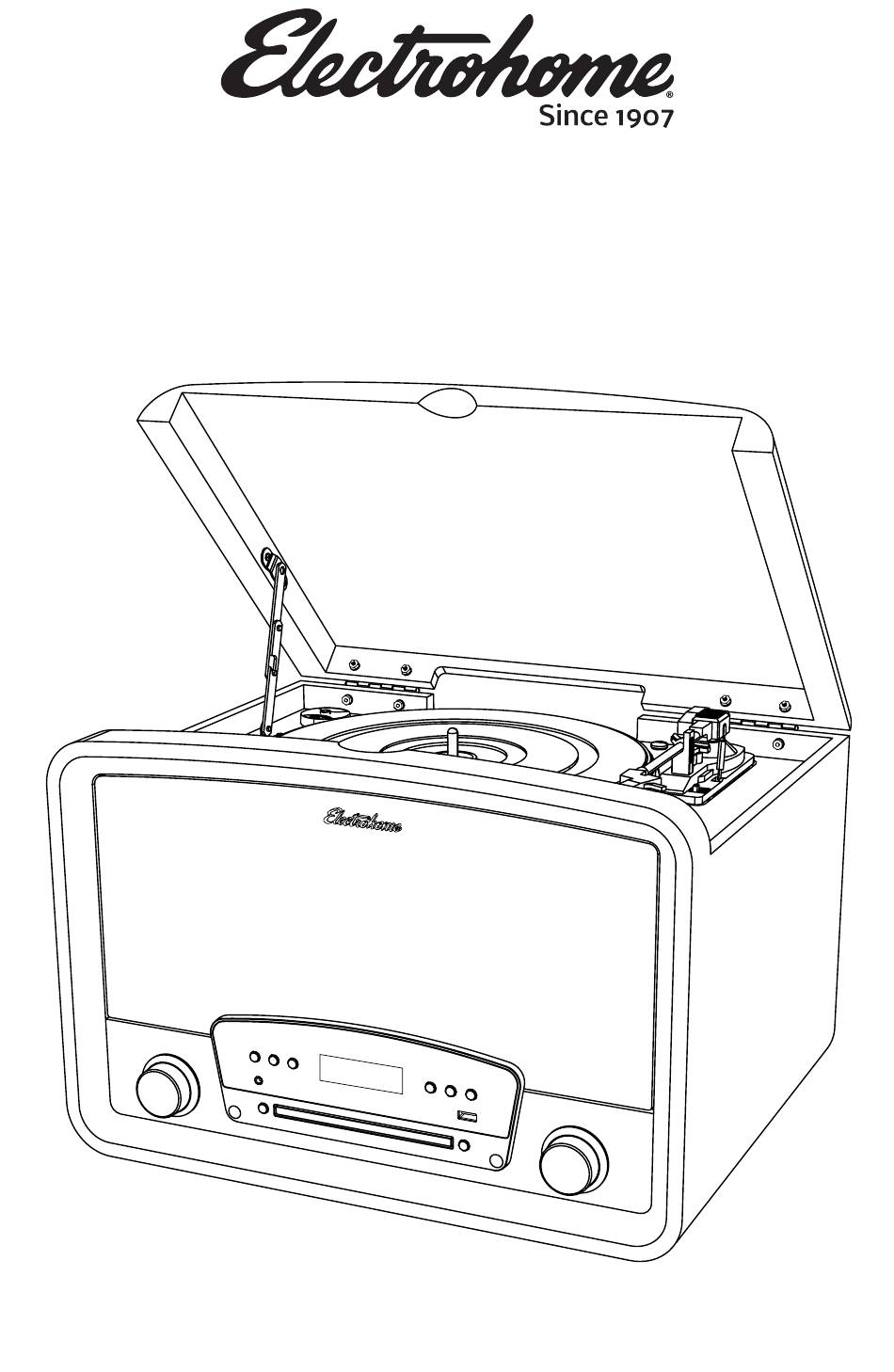

- Page 1 RR75 7-in-1 Vinyl Record Player User Manual v1.0...
- Page 2 INTRODUCTION Since 1907 Electrohome has been developing high fidelity audio products & has been welcomed into homes for generations. One thing that remains the same in our more than 100 year history is our unmatched dedication to design and premium craftsmanship.
-
Page 3: Table Of Contents
TABLE OF CONTENTS What’s Included ............................ 3 Product Information ..........................4 Front Panel ..................................4 Back Panel ....................................4 Remote Control .................................5 Turntable ....................................5 First Time Setup ............................ 6 Positioning the System ..............................6 Connecting to Power ...............................6 Turning the Unit ON/OFF ...............................7 Changing Sources ................................7 Adjusting the EQ Settings ..............................7 Playing a Record ................................7... -
Page 4: Product Information
PRODUCT INFORMATION Front Panel STANDBY Standby Knob Recording LED Press - Power ON/OFF Flashing - Recording Turn - Volume UP/DOWN 10. USB Recording Previous Track/Rewind/Tuning 11. Source Knob Play/Pause Press - Source Next Track/Fast Forward/Tuning Turn - AM/FM Tuning LCD Screen 12. -
Page 5: Remote Control
Remote Control Power Source Selection Up/Down Arrow (Preset/Folder) Play/Pause Left/Right Arrow (Tuning/Track) EQ Settings – Bass/Treble AM/FM Presets - Cycle/Set Play Mode - Repeat/Shuffle Bluetooth® Tap - Bluetooth Source Hold - Reset Bluetooth Pairing Volume Up/Down Turntable 45 Adapter Speed Selection Switch Platter Tonearm Transit Screw... -
Page 6: First Time Setup
FIRST TIME SETUP Positioning the System Unpack the system and remove Place the system on a sturdy and level surface. all protective packaging. Please keep packaging for warranty and transportation purposes. Open the lid and turn the Transit Screw Extend the FM antenna and position for Clockwise to release the turntable for optimal FM reception. -
Page 7: Turning The Unit On/Off
Raise the cueing lever to lift the tonearm Position the tonearm over the record Note: The RR75 features an auto stop function but does not have an automatic tonearm return function. The tonearm must be manually returned to the tonearm rest. The auto stop function will automatically... -
Page 8: Playing The Radio And Radio Presets
Adjust the volume on your source device as well as on the unit Note: If your device cannot find “Electrohome RR75”, you can reset Bluetooth® pairing. Press and hold the Bluetooth® button on the unit or the remote for 3 seconds to reset pairing. -
Page 9: Playing From Usb
Recording to USB The RR75 can record from PHONO, AUX, CD, and Bluetooth®. Files are saved in 128kbps quality. The USB drive must be formatted in FAT32 or exFAT and be 32GB or less. If the USB is not compatible or not recognized the display will show “Error”. -
Page 10: Connecting Headphones
Use the desired source on the RR75 Adjust playback volume on the RR75 IMPORTANT: The speakers on the RR75 are disabled when headphones are connected to the headphone jack. To resume normal playback the headphones must be disconnected. Connecting to an Amplifier The RR75 can be connected to an external amplifier to integrate it into an existing home audio system. -
Page 11: Care And Maintenance
CARE AND MAINTENANCE Cleaning the System Use a soft dry cloth to wipe dust from the RR75 Keep the lid closed to protect the turntable components from dust Stylus Care The jeweled stylus installed in your turntable should last for up to 300 hours of playback with 33 RPM albums or 45 RPM ‘Singles’... -
Page 12: Frequently Asked Questions
The RR75 is not turning on Confirm the power cable is fully inserted into the back of the RR75 and that the power switch on the back on the unit is set to the ON position. Try to turn the system on by pressing the Standby knob or use the Power button on the remote. - Page 13 Electrohome RR75 is not showing as an available device on my Bluetooth device. Ensure the RR75 is not paired to another device. You can reset Bluetooth holding the Bluetooth button on the unit or on the remote for 3 seconds. Next turn Bluetooth off and back on in your device’s...
-
Page 14: Specifications
SPECIFICATIONS Finish ................................Real Wood Veneer Cabinet Material ....................MDF (Medium Density Fiberboard) Record Player ..................................Yes Cartridge ........................Ceramic, Sapphire Tipped Stylus Record Speeds ............................33 1/3, 45, 78 RPM Auto Return ...................................No Auto Stop ....................................Yes FM Radio ............................Yes (87.5 - 107.9 MHz) AM Radio .............................. -
Page 15: Certification Information
CERTIFICATION INFORMATION FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 16: Important Safety Instructions
CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO PREVENT The lightning ash with arrowhead symbol within an The exclamation point within an equilateral triangle is RISK OF ELECTRIC SHOCK, equilateral triangle is intended to alert the user to the intended to alert the user to the presence of important presence of uninsulated “dangerous voltage”... - Page 17 • Warning: To reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceable parts inside. Refer servicing to qualified personnel. • The exclamation point within and equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance This equipment is a Class II or double insulated electrical appliance.
-
Page 18: Warranty Information
Warranty Exclusions Electrohome products are warrantied for parts and labor for one year from date of original purchase, and are subject to the terms and conditions of the warranty. Any refurbished products that are discontinued hold a 90 day warranty from the date of original purchase. - Page 19 NOTES...
- Page 20 ELECTROHOME.COM...
